3 shows the probability density for an electron that has passed through an experimental apparatus. What is the probability that the electron will land in a 0.010-mm-wide strip at (a) x = 0.000 mm, (b) x = 0.500 mm, (c) x = 1.000 mm, and (d) x = 2.000 mm?

Short Answer

Expert verified

Determine the probability of electron will land in a 0.010 mm wide string at a position of x=0.000 mm using the formula.

Step by step solution

01

The probability of any electron ends up in the strip at position x is

Prob (in δxat x)=p(x)δx.........(1)

Here p(x) is the probability density and δx is the small width

02

(a) Convert the units for the small width of the strip from mm to m.

From the figure EX39.13, the probability density of the electron at the position x=0.000 mm is as follows.

p(x)=0.50mm

From the fig . the probability density of the electron at the position x=0.000mm is follows.

p(x)= 0.50 mm-1

= 0.50x103 m-1

Substitute for p(x) 1x10-5m for δxin the equation(1) to solve for

prob(in 0.010mm at 0.000mm)

prob(in 0.010mm at 0.000mm)=(0.50x103m-1)(1x10-3m)

=5.0x10-3

Therefore the probability of electron will land in a 0.010 mm wide strong at a position of x=0.000mm is 5.0x10-3

03

(b)Determine the probability of electron will land in a 0.010mm wide string at a position of x=0.500mm using the equation(1)

From the figure EX39.13, the probability density of the electron at the position x=0.000 mm is as follows.

p(x)=0.50mm

From the fig . the probability density of the electron at the position x=0.000mm is follows.

p(x)= 0.50 mm-1

= 0.50x103 m-1

Substitute 0.50x103 m-1 for p(x) 1x10-5m for δxin the equation(1) to solve for

prob(in 0.010mm at 0.000mm)

prob(in 0.010mm at 0.500mm)=(0.25x103m-1)(1x10-3m)

=2.5x10-3

Therefore the probability of electron will land in a 0.010 mm wide strong at a position of x=0.500mm is 2.5x10-3

04

(c)Determine the probability of electron will land in a 0.010mm wide string at a position of x=1.000mm using the equation(1)

From the fig. the probability density of the electron at the position x=1.000mm is as follows

p(x)=0.50mm

From the fig . the probability density of the electron at the position x=0.000mm is follows.

p(x)= 0.0 mm-1

= 0.0x103 m-1

Substitute 0.0m-1for p(x) 1x10-3 for δxin the equation (1) to solve for

prob(in 0.010mm at 1.000mm)

prob(in 0.010mm at 1.000mm)=(1.000x103m-1)(1x10-3m)

= 1.000x10-3

Therefore the probability of electron will land in a 0.010 mm wide strong at a position of x=1.000mm

05

(d)Determine the probability of electron will land in a 0.010mm wide string at a position of x=2.000mm using the equation(1)

From the fig. the probability density of the electron at the position x=1.000mm is as follows

p(x)=0.50mm

From the fig . the probability density of the electron at the position x=0.000mm is follows.

p(x)= 0.25 mm-1

= 0.25x103 m-1

Substitute 0.25x103 m-1 for p(x) 1x10-3 for 1x10-5in the equation (1) to solve for

prob(in 0.010mm at 2.000mm)

prob(in 0.010mm at 2.000mm)=(0.25x103m-1)(1x10-3m)

=2.5x10-3

Therefore the probability of electron will land in a 0.010 mm wide strong at a position of x=2.000mm is 2.5x10-3

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

FIGURE Q39.1 shows the probability density for photons to be detected on thex-axis.

a. Is a photon more likely to be detected at x=0mor at x=1m ? Explain.

b. One million photons are detected. What is the expected number of photons in a 1−mm-wide interval at x=0.50m?

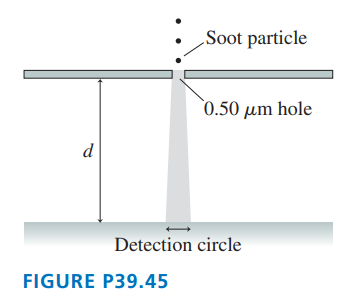

Soot particles, from incomplete combustion in diesel engines, are typically 15nmin diameter and have a density of 1200kg/m3. FIGURE P39.45 shows soot particles released from rest, in vacuum, just above a thin plate with a 0.50-μm-diameter holeroughly the wavelength of visible light. After passing through the hole, the particles fall distance dand land on a detector. If soot particles were purely classical, they would fall straight down and, ideally, all land in a 0.50-μm-diameter circle. Allowing for some experimental imperfections, any quantum effects would be noticeable if the circle diameter were 2000nm. How far would the particles have to fall to fill a circle of this diameter?

Consider the electron wave function

ψx=cxx≤1nmcxx≥1nm

where x is in nm.

a. Determine the normalization constant c.

b. Draw a graph of ψxover the interval role="math" localid="1650907186096" -5nm≤x≤5nm.

Provide numerical scales on both axes.

c. Draw a graph of ψx2over the interval role="math" localid="1650907657944" -5nm≤x≤5nm.

Provide numerical scales.

d. If 106 electrons are detected, how many will be in the interval

role="math" localid="1650908765290" -1.0nm≤x≤1.0nm?

A thin solid barrier in the xy-plane has a 10μmdiameter circular hole. An electron traveling in the zdirection with vx=0m/spasses through the hole. Afterward, is it certain that vxis still zero? If not, within what range is vxlikely to be?

What is the smallest one-dimensional box in which you can confine an electron if you want to know for certain that the electron's speed is no more than 10m/s ?
