Chapter 12: Q. 73 (page 334)

A thin, uniform rod of length L and mass M is placed vertically on a horizontal table. If tilted ever so slightly, the rod will fall over.
a. What is the speed of the center of mass just as the rod hits the table if there鈥檚 so much friction that the bottom tip of the rod does not slide?
b. What is the speed of the center of mass just as the rod hits the table if the table is frictionless?

Short Answer

Expert verified

a) Speed of the center of mass just as the rod hits the table is v=3gl4

b) Speed of the center of mass just as the rod hits the for frictionless table is v=gl

Step by step solution

01

Part(a) Step1 : Given information

Length= L

Mass = M

02

Part(a) Step 2: Explanation

Moment of inertia of a rod is given by

I=13ML2..............................................(1)

Total energy , when rod is standing on table is

E=MgL2.......................(2)

Kinetic energy of the rod when it hits the table

KE=12I蝇2

Substitute the value of inertia, we get

KE=12脳(ML23)脳蝇2..........................(3)

From the law of conservation of energy

E=KE12MgL=12脳13ML2脳蝇2蝇=3gL鈥�鈥�鈥�鈥�鈥�鈥�.(4)

Velocity is v=L2蝇

Substitute in equation (4), we get

v=L2脳3gLv=3gL4

03

Part(b) Step 1 : Given information

Length= L

Mass = M

04

Part(b) Step2 : Explanation

Total energy of the standing rod is

E=mgL2( as center of mass is at middle of rod)

From the law of energy conservation

K=KE

As there is no friction so there will be no radial kinetic energy. so

12MgL=12Mv2v=gL

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

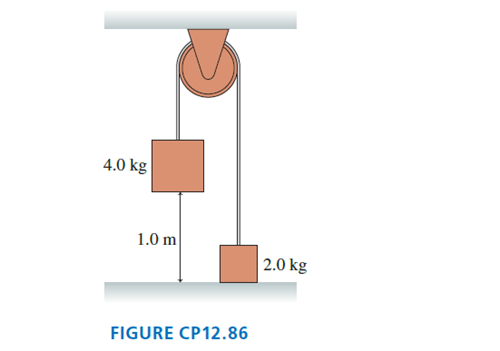

The two blocks in FIGURE CP12.86 are connected by a massless rope that passes over a pulley. The pulley is 12 cm in diameter and has a mass of 2.0 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.50 N m. If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?
