Chapter 12: Q. 74 (page 334)

A long, thin rod of mass M and length L is standing straight up on a table. Its lower end rotates on a frictionless pivot. A very slight push causes the rod to fall over. As it hits the table, what are

(a) the angular velocity and

(b) the speed of the tip of the rod?

Short Answer

Expert verified

a) Angular velocity is3g/L

b) Velocity is 3gL

Step by step solution

01

Part(a) Step 1: Given information

Mass= M

Length = L

02

Part(a) Step2: Explanation

When Rod is at rest it has only potential energy

PE = Mgh .........................................(1)

Susbtitute h=L/2, as center of mass is at half of the length of the rod.

PE=mgL2..........................(2)

When rod falls on the table then just before touching the surface, potential energy become zero and rod has only kinetic energy .

KE=12I蝇2

Substitute the value of I ,

K.E.=12(ML23)蝇2K.E.=(ML2蝇2)6..................(3)

From law of conservation of energy, PE = KE ,

Equate (2) and (3), we get

(ML2蝇2)6=MgL2鈬�蝇=3gL

03

Part(b) Step1: Given information

Length = L

Mass = M

04

Part(b) Step2: Explanation

Velocity can be calculated by

v = 蝇L

Substitute the value of 蝇 from part(a) we get

v=3gL脳L=3gL

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

During most of its lifetime, a star maintains an equilibrium size in which the inward force of gravity on each atom is balanced by an outward pressure force due to the heat of the nuclear reactions in the core. But after all the hydrogen 鈥渇uel鈥� is consumed by nuclear fusion, the pressure force drops and the star undergoes a gravitational collapse
until it becomes a neutron star. In a neutron star, the electrons and protons of the atoms are squeezed together by gravity until they fuse into neutrons. Neutron stars spin very rapidly and emit intense pulses of radio and light waves, one pulse per rotation. These 鈥減ulsing
stars鈥� were discovered in the 1960s and are called pulsars.
a. A star with the mass M = 2.0 x 1030 kg and size R =7.0 x 108 m of our sun rotates once every 30 days. After undergoing gravitational collapse, the star forms a pulsar that is observed by astronomers to emit radio pulses every 0.10 s. By treating the neutron star as a solid sphere, deduce its radius.
b. What is the speed of a point on the equator of the neutron star? Your answers will be somewhat too large because a star cannot be accurately modeled as a solid sphere. Even so, you will be able to show that a star, whose mass is 106larger than the earth鈥檚, can be compressed by gravitational forces to a size smaller than a typical state in the United States!

The three masses shown in FIGURE EX12.15 are connected by massless, rigid rods.

a. Find the coordinates of the center of mass.

b. Find the moment of inertia about an axis that passes through mass A and is perpendicular to the page.

c. Find the moment of inertia about an axis that passes through masses B and C.

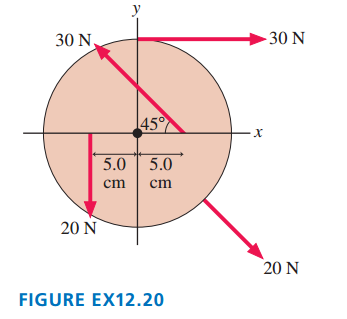

The 20-cm-diameter disk in FIGURE EX12.20 can rotate on an axle through its center. What is the net torque about the axle?

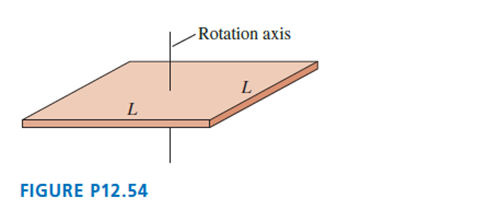

Calculate the moment of inertia of the rectangular plate in FIGURE P12.54 for rotation
about a perpendicular axis through the center.

A V 2.0kg,20鈭�cm-diameter turntable rotates at 100rpmon frictionless bearings. Two 500gblocks fall from above, hit the turntable simultaneously at opposite ends of a diameter, and stick. What is the turntable's angular velocity, in rpm, just after this event?
