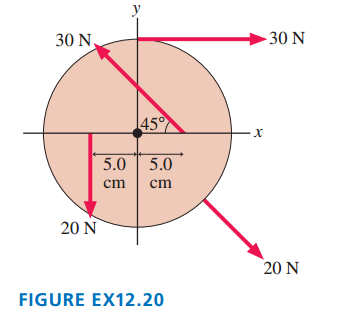

The 20-cm-diameter disk in FIGURE EX12.20 can rotate on an axle through its center. What is the net torque about the axle?

Short Answer

Expert verified

The net torque on the axle is鈭�0.94Nm , the direction is clockwise.

Step by step solution

01

Step 1. Given information

The radius of the disk is 10 cm and the disk rotates on an axle through its center.

02

Step 2. Explanation

The net torque on the axle is

蟿=FArAsin蠒A+FBrBsin蠒B+FCrCsin蠒C+FDrDsin蠒D=(30N)(0.10m)sin鈭�90掳+(20N)(0.050m)sin90掳+(30N)(0.050m)sin135掳+(20N)(0.10m)sin0掳=鈭�3Nm+1Nm+1.0607Nm=鈭�0.94Nm

The net torque on the axle is 鈭�0.94Nm, the direction is clockwise.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

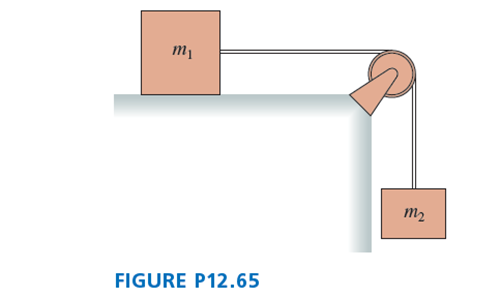

Blocks of mass m1 and m2 are connected by a massless string that passes over the pulley in Figure P12.65. The pulley turns on frictionless bearings. Mass m1 slides on a horizontal, frictionless surface. Mass m2 is released while the blocks are at rest.
a. Assume the pulley is massless. Find the acceleration of m1 and the tension in the string. This is a Chapter 7 review problem.
b. Suppose the pulley has mass mp and radius R. Find the acceleration of m1 and the tensions in the upper and lower portions of the string. Verify that your answers agree with part a if you set mp = 0.

A 30-cm-diameter, 1.2 kg solid turntable rotates on a 1.2-cm-diameter, 450 g shaft at a constant 33 rpm. When you hit the stop switch, a brake pad presses against the shaft and brings the turntable to a halt in 15 seconds. How much friction force does the brake pad apply to the shaft?

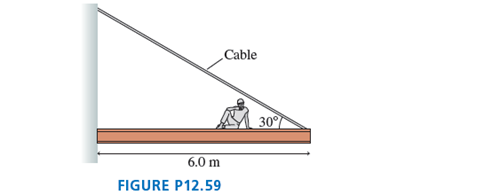

In Figure P12.59, an 80 kg construction worker sits down 2.0 m from the end of a 1450 kg
steel beam to eat his lunch. What is the tension in the cable?

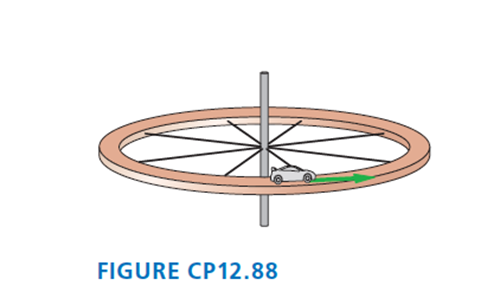

In FIGURE CP12.88, a 200 g toy car is placed on a narrow 60-cm-diameter track with wheel grooves that keep the car going in a circle. The 1.0 kg track is free to turn on a frictionless, vertical axis. The spokes have negligible mass. After the car鈥檚 switch is turned on, it soon reaches a steady speed of 0.75 m/s relative to the track. What then is the track鈥檚 angular velocity, in rpm?
