Chapter 12: Q. 1 (page 330)

A high-speed drill reaches 2000rpmin0.50s .

a. What is the drill's angular acceleration?

b. Through how many revolutions does it turn during this first 0.50s?

Short Answer

Expert verified

(a) The angular acceleration is419rad/s2

(b) The number of revolution is 8.30rev.

Step by step solution

01

Step 1. Given information

(a) The change in angular velocity,螖蝇=2000revmin

(b) The change in time interval, 螖t=0.50s

The expression for angular displacement in a given time interval is,

胃(t)=蝇i螖t+12伪(螖t)2

Here, 蝇iis the initial velocity, 螖tis the time interval and is angular acceleration.

02

Part (a)

The angular acceleration.

伪=螖蝇螖t伪=2000rpm2蟺1rotation1min60s0.5s=418.6rad/s2伪鈮�419rad/s2

03

Part (b)

The number of revolutions turned during the first is given by,

胃(t)=蝇i螖t+12伪螖t2胃(t)=(0)螖t+12419rad/s20.5s2胃(t)=52.4rad1rev2蟺rad=8.30rev

Therefore, the number of revolution0.5s in is8.30rev .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A 45 kg figure skater is spinning on the toes of her skates at 1.0 rev/s. Her arms are outstretched as far as they will go. In this orientation, the skater can be modeled as a cylindrical torso (40 kg, 20 cm average diameter, 160 cm tall) plus two rod-like arms (2.5 kg each, 66 cm long) attached to the outside of the torso. The skater then raises her arms straight above her head, where she appears to be a 45 kg, 20-cm-diameter, 200-cm-tall cylinder. What is her new angular velocity, in rev/s?

A 4.0-m-long, 500 kg steel beam extends horizontally from the point where it has been bolted to the framework of a new building under construction. A 70 kg construction worker stands at the far end of the beam. What is the magnitude of the torque about the bolt due to the worker and the weight of the beam?

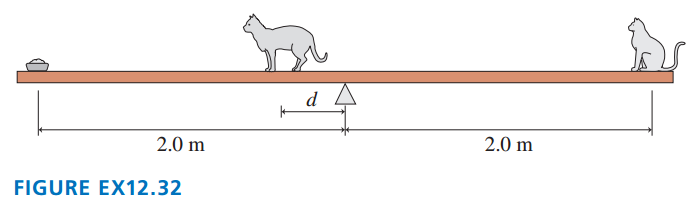

A 5.0 kg cat and a 2.0 kg bowl of tuna fish are at opposite ends of the 4.0-m-long seesaw of FIGURE EX12.32. How far to the left of the pivot must a 4.0 kg cat stand to keep the seesaw balanced?

a. A disk of mass M and radius R has a hole of radius r centered on the axis. Calculate the moment of inertia of the disk.
b. Confirm that your answer agrees with Table 12.2 when r = 0 and when r = R.
c. A 4.0-cm-diameter disk with a 3.0-cm-diameter hole rolls down a 50-cm-long, 20o ramp. What is its speed at the bottom? What percent is this of the speed of a particle
sliding down a frictionless ramp?

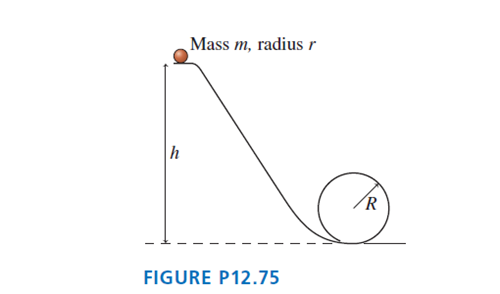

The marble rolls down the track shown in FIGURE P12.75 and around a loop-the-loop of radius R. The marble has mass m and radius r. What minimum height h must the track have for the marble to make it around the loop-the-loop without falling off?
