Chapter 18: Q18P (page 590)

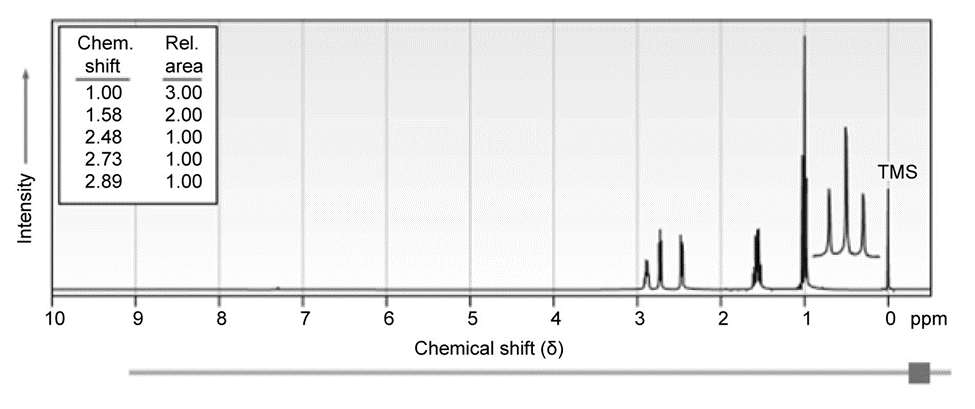

The 1H NMR spectrum shown is that of a cyclic ether with the formula C4H8O. Propose a structure.

Short Answer

Expert verified

Answer

The structure of C4H8O is,

Step by step solution

01

Step-by-Step SolutionStep 1: 1H  NMR spectrum

1H NMR spectrum describes the types of proton present in the compound by looking at the chemical shift values. The different functional groups exhibits different chemical shifts values.

02

The structure of cyclic ether with formula C4H8O

From the given 1H NMR spectrum of cyclic ether with chemical formula C4H8O, the following observation is done as,

The chemical shift at 1.0 is forCH3 (a) (3H).

The chemical shift at 1.5 is for CH2 (b) (2H).

The chemical shift at 2.5 is for CH (d) (1H).

The chemical shift at 2.7 is for CH (e) (1H).

The chemical shift at 2.9 is for CH (c) (1H).

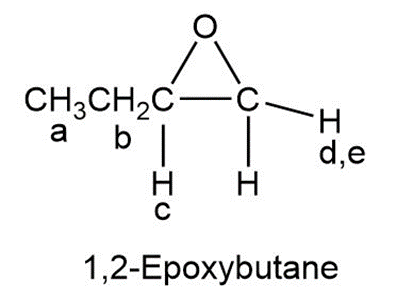

Thus, the structure of cyclic ether is,

Structure of C4H8O

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Name the following ethers:

c)

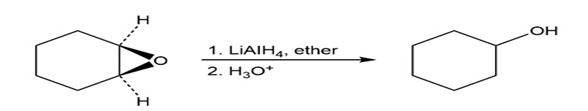

Epoxides are reduced by treatment with lithium aluminum hydride to yield alcohols. Propose a mechanism for this reaction.

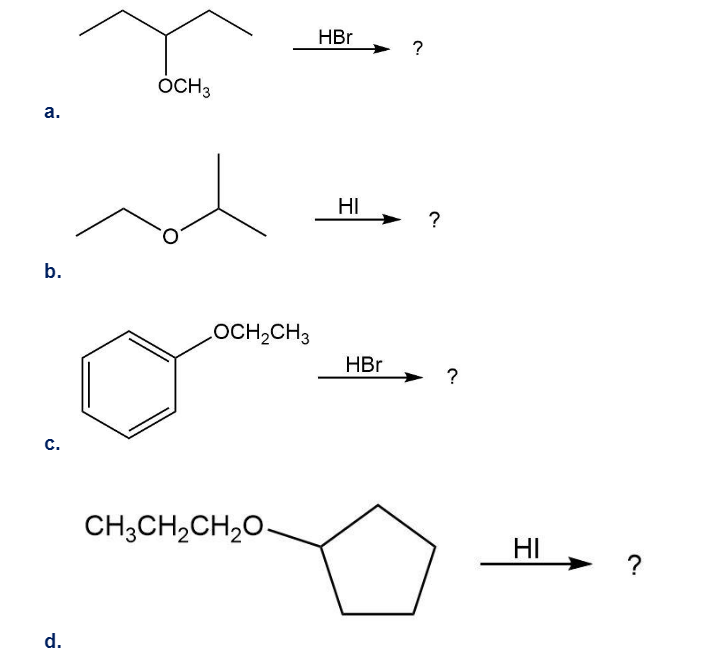

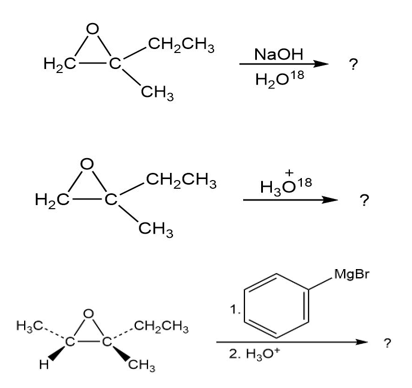

Predict the product(s) and provide the mechanism for each reaction below. What does each mechanism have in common?

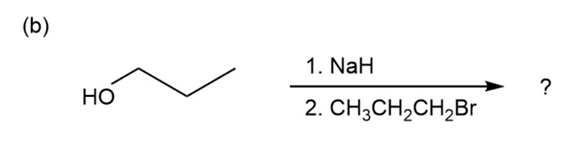

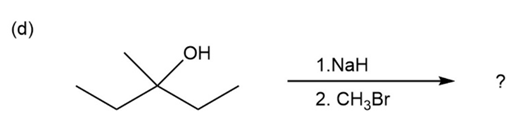

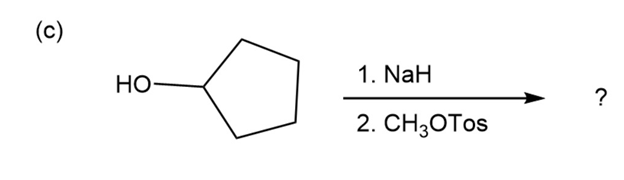

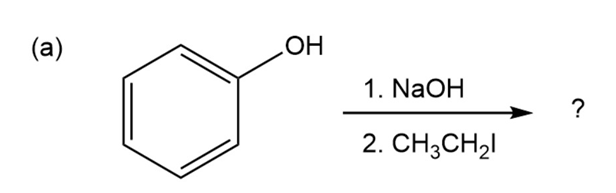

Predict the product(s) and provide the mechanism for each two-stepprocess below.

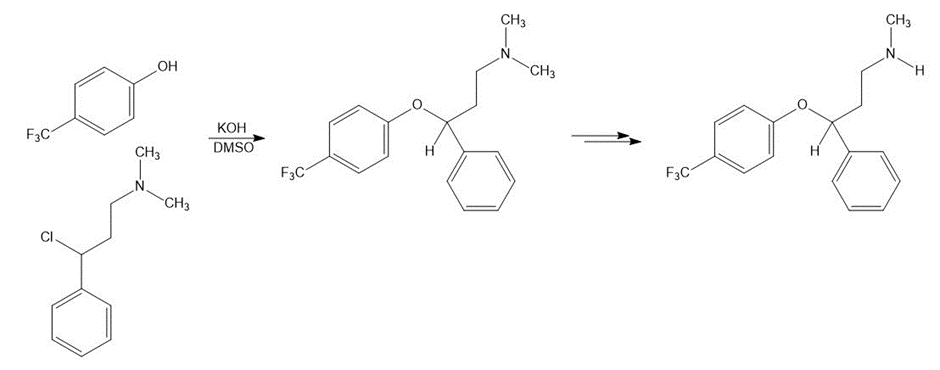

Fluoxetine, a heavily prescribed antidepressant marketed under the
