Chapter 6: Q. 5 P (page 159)

An electrostatic potential map of boron trifluoride is shown. Is BF3likely to be a nucleophile or an electrophile? Draw a Lewis structure for BF3, and explain your answer.

Short Answer

Expert verified

BF3acts as an electrophile.

Step by step solution

01

Electrophiles and nucleophiles

Electrophiles are positively charged species that attack the electron-rich center.

For example, BF3, H3O+, and AlCl3

Nucleophiles are the electron-rich centers or negatively charged species that attack electron-deficient centers.

Neutral molecules containing lone pair of an electron can also act as a nucleophile. For example, Cl-, I-, NH3, etc.

02

BF3 as an electrophile

In BF3, boron has three electron couples with three electrons of fluorine. So in BF3, boron has six electrons in its outer shell which indicates that the octet is not complete. Since BF3has a vacant p-orbital, BF3can accept electrons in its vacant p-orbital. Therefore BF3 act as an electrophile.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Which reaction is more energetically favored, one with 螖骋o= - 44 or one with 螖骋o= +44 ?

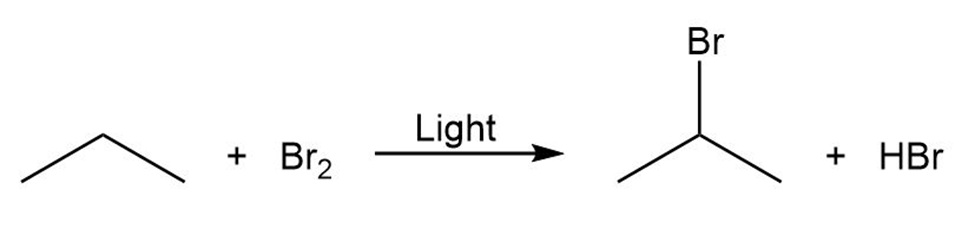

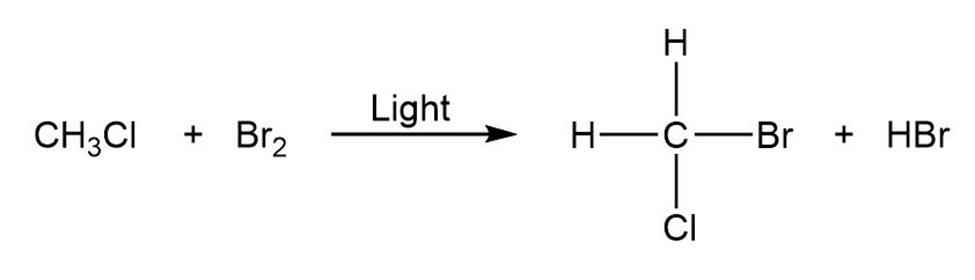

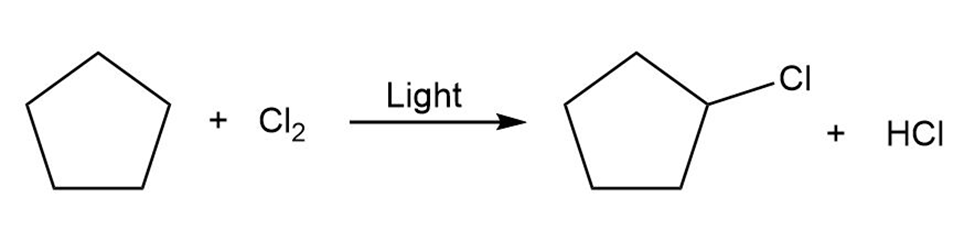

Despite the limitations of radical chlorination of alkanes, the reaction is still useful for synthesizing certain halogenated compounds. For which of the following compounds does radical chlorination give a single monochloro product?

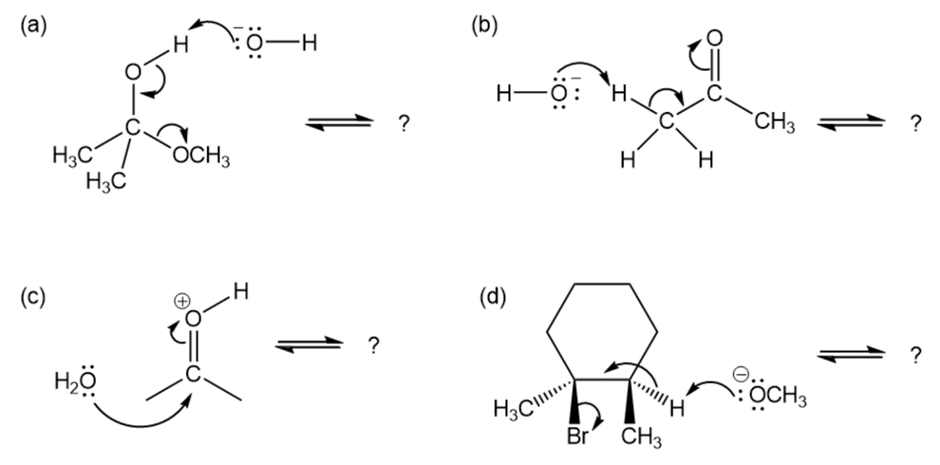

Add curved arrows to the following polar reactions to indicate the flow of electrons in each:

(a)

(b)

Identify the following reactions as additions, eliminations, substitutions, or rearrangements:

a.

b.

c.

d.

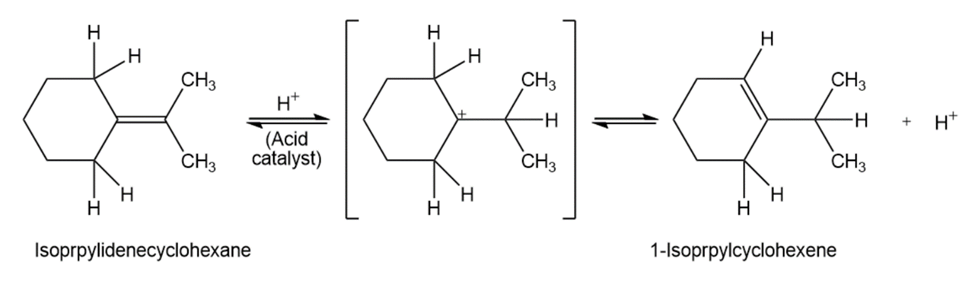

When isopropylidenecyclohexane is treated with strong acid at room

temperature, isomerization occurs by the mechanism shown below to yield 1-isopropylcyclohexene:

At equilibrium, the product mixture contains about 30% isopropylidene- cyclohexane and about 70% 1-isopropylcyclohexene.

(a)What is an approximate value of Keq for the reaction?

(b)Since the reaction occurs slowly at room temperature, what is its approximate鈭�G鈥�?

(c)Draw an energy diagram for the reaction.
