Chapter 6: Problem 6.20 (page 233)

Draw an energy diagram for a two-step reaction, A鈫�B鈫�C, where the relative energy of these compounds is C<A<B, and the conversion of B鈫�Cis rate-determining.

Short Answer

Expert verified

Answer

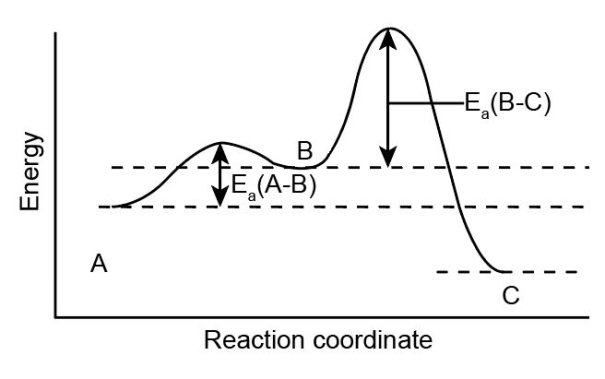

The energy diagram is as follows:

Step by step solution

01

Step-by-Step SolutionStep 1: Energy diagram

An energy diagram (energy vs. reaction coordinate) is used to describe the change in energy of a system during the conversion of the reactants to the products.

02

Rate determining step

The step (in a chemical reaction) that takes the maximum time in the conversion of the reactants to products is termed the rate-determining step.

The rate-determining step has the maximum activation energy barrier.

03

Energy diagram of the given reaction

The reaction involves the transformation of the reactant A to product C through an intermediate B.

Species C has the lowest energy, and B has the highest energy.

Since it is given that the conversion of B to C is the rate-determining step, the activation energy barrier between B and C will be the maximum.

Energy diagram of a two-step reaction
