Chapter 32: Q. 42 (page 925)

For an RC filter circuit, show that $V_{R} = V_{C} = \frac{蔚_{0}}{\sqrt{2}}$ at $蝇 = 蝇_{c}$ .

Short Answer

Expert verified

The expression is true $V_{R} = V_{C} = \frac{蔚_{0}}{\sqrt{2}}$ .

Step by step solution

01

Given Information

We are given that $蝇 = 蝇_{c}$ and

we have to find out that $V_{R} = V_{C} = \frac{蔚_{o}}{\sqrt{2}}$ .

02

Simplification

As we know that for an RC filter circuit,

$蝇_{c} = \frac{1}{R C}$

Next we will find V_R :

$V_{R} = \frac{蔚_{0} R}{\sqrt{R^{2} + \frac{R^{2} C^{2}}{C^{2}}}}$

We get , $V_{R} = \frac{蔚_{0}}{\sqrt{2}}$

Finally, we will find V_C:

$V_{c} = \frac{\frac{蔚_{0}}{蝇_{c}}}{\sqrt{R^{2} + \frac{1}{蝇^{2} C^{2}}}}$

$V_{C} = \frac{蔚_{0}}{\sqrt{蝇^{2} R^{2} C^{2} + 1}}$

We get, $V_{C} = \frac{蔚_{0}}{\sqrt{2}}$

As $V_{R} = V_{C} = \frac{蔚_{o}}{\sqrt{2}}$

Hence, it is proved that $V_{R} = V_{C} = \frac{蔚_{0}}{\sqrt{2}}$ .

Unlock Step-by-Step Solutions & Ace Your Exams!

Full Textbook Solutions
Get detailed explanations and key concepts
Unlimited Al creation
Al flashcards, explanations, exams and more...
Ads-free access
To over 500 millions flashcards
Money-back guarantee
We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

a. For an RC circuit, find an expression for the angular frequency at which $V_{C} = \frac{1}{2} 蔚_{0}$ .

b. What is V_R at this frequency ?

A high-pass filter consists of a $1.59 m F$ capacitor in series with a $100 鈩�$ resistor. The circuit is driven by an $A C$ source with a peak voltage of $5.00 V$ .

a. What is the crossover frequency $f_{c}$ ?

b. What is $V_{R}$ when $f = \frac{1}{2} f_{c}, f_{c}$ , and $2 f_{c}$ ?

For the circuit of figure $E x 32.33$ ,

a. What is the resonance frequency, in both $r a d / s$ and $H z$ ?

b. Find $V_{r}$ and $V_{c}$ at resonance.

c. How can $V_{c}$ be larger than $蔚_{0}$ ? Explain .

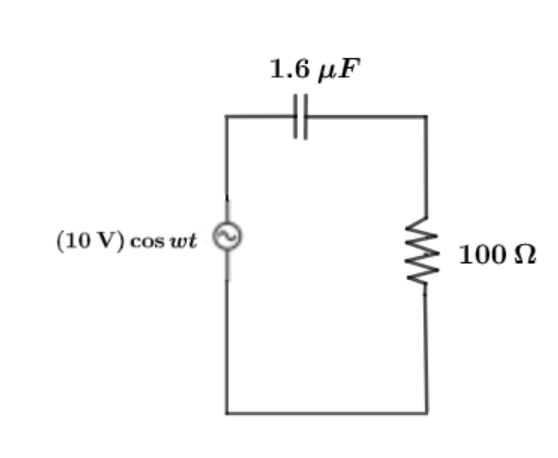

a. Evaluate $V_{R}$ in figure at emf frequencies $100, 300, 1000, 3000, 10000 H z$
