Chapter 32: Q. 14 (page 924)

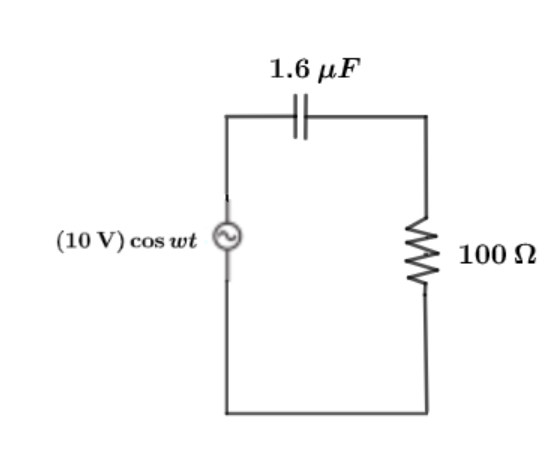

a. Evaluate $V_{R}$ in figure at emf frequencies $100, 300, 1000, 3000, 10000 H z$
b. Graph $V_{R}$ versus frequency. Draw a smooth curve through your five points.

Short Answer

Expert verified

Part(a) $V_{R}$ at emf frequencies $100, 300, 1000, 3000, 10000$ are $1.00, 2.90, 7.11, 9.47, 9.97 V$ respectively.

Part(b) Required figure is given below.

Step by step solution

Part(a) Step 1: Given information

We have given different frequencies

$100, 300, 1000, 3000, 10000$ and $R = 100 惟, E_{0} = 10 V, C = 1.6 脳 10^{- 3} F$

We have to find $V_{R}$

Part(a) Step 2 : Simplify

As we know,

$V_{R} =$ voltage across resistor

$R =$ resistance

$C =$ capacitance

$f =$ frequency

$X_{C} =$ capacitive reactance

${鈭�}_{鈭�} =$ emf

$V_{R} = I R I = \frac{螘_{0}}{\sqrt{R^{2} + X_{C}^{2}}} X_{C} = \frac{1}{W C} = \frac{1}{2 蟺 f C}$

Now if

a. $f = 100 H z V_{R} = \frac{{鈭�}_{鈭�}}{\sqrt{R^{2} + \frac{1}{{(2 蟺 f C)}^{2}}}} = \frac{10}{\sqrt{100^{2} + \frac{1}{{(2 蟺 (100) (1.6 脳 10^{- 3}))}^{2}}}} V_{R} = 1.00 V f = 300 H z V_{R} = \frac{{鈭�}_{鈭�}}{\sqrt{R^{2} + \frac{1}{{(2 蟺 f C)}^{2}}}} = \frac{10}{\sqrt{100^{2} + \frac{1}{{(2 蟺 (300) (1.6 脳 10^{- 3}))}^{2}}}} V_{R} = 2.90 V f = 1000 H z V_{R} = \frac{{鈭�}_{鈭�}}{\sqrt{R^{2} + \frac{1}{{(2 蟺 f C)}^{2}}}} = \frac{10}{\sqrt{100^{2} + \frac{1}{{(2 蟺 (1000) (1.6 脳 10^{- 3}))}^{2}}}} V_{R} = 7.11 V f = 3000 H z V_{R} = \frac{{鈭�}_{鈭�}}{\sqrt{R^{2} + \frac{1}{{(2 蟺 f C)}^{2}}}} = \frac{10}{\sqrt{100^{2} + \frac{1}{{(2 蟺 (3000) (1.6 脳 10^{- 3}))}^{2}}}} V_{R} = 9.47 V f = 10000 H z V_{R} = \frac{{鈭�}_{鈭�}}{\sqrt{R^{2} + \frac{1}{{(2 蟺 f C)}^{2}}}} = \frac{10}{\sqrt{100^{2} + \frac{1}{{(2 蟺 (10000) (1.6 脳 10^{- 3}))}^{2}}}} V_{R} = 9.97 V$

Part(b) Step 1: Given information

We have to draw graph $V_{R}$ vs frequencies

Part(b) Step 2 : Simplify

Graph:
