Chapter 32: Q. 2 (page 923)

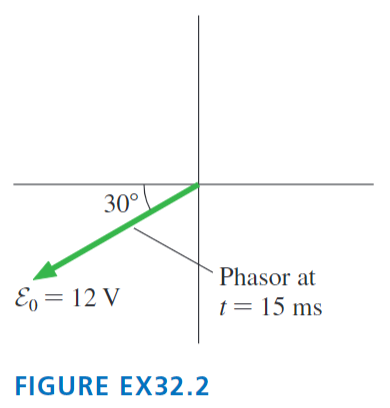

The emf phasor in FIGURE EX32.2 is shown at t=15ms.

a. What is the angular frequency 蝇? Assume this is the first rotation.

b. What is the instantaneous value of the emf?

Short Answer

Expert verified

The angular frequency 蝇is 244rad/sand instantaneous value of the emf is-10V.

Step by step solution

01

Part (a) Step 1: Given information

We are given that time t=15ms, Eo=12Vand 鈭�=150鈭�(as the phasor rotates anticlockwise towards X-axis)

02

Part (a) Step 2: Calculation

As we know that-

E=E0cos(蝇t+鈭�)

蝇t=180鈭�+鈭�蝇t=180鈭�+30鈭�蝇t=210鈭� (as phasor rotates anticlockwise)

Now converting degrees into radian

210鈭�=210鈭�蟺谤补诲180鈭�=7蟺谤补诲6

Now,

蝇t=7蟺谤补诲6蝇(15脳10-3)=7蟺谤补诲6蝇=244rad/s

03

Part (b) Step 1: Given information

We are given that-

E0=12V鈭�=150鈭�

04

Part (b) Step 2: Calculation

As we know that peak valueE0=12V will occur when 蝇t=0

So now in the expression,

E=E0cos(蝇t+鈭�)E=12Vcos(0+150鈭�)E=-10V

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

II An electric circuit, whether it's a simple lightbulb or a complex amplifier, has two input terminals that are connected to the two output terminals of the voltage source. The impedance between the two input terminals (often a function of frequency) is the circuit's input impedance. Most circuits are designed to have a large input impedance. To see why, suppose you need to amplify the output of a high-pass filter that is constructed with a 1.2k惟 resistor and a 15渭F capacitor. The amplifier you've chosen has a purely resistive input impedance. For a 60Hz signal, what is the ratio VRload/VRno loadof the filter's peak voltage output with (load) and without (no load) the amplifier connected if the amplifier's input impedance is (a) 1.5k惟and (b) 150k惟 ?

A 20mHinductor is connected across an AC generator that produces a peak voltage of 10V. What is the peak current through the inductor if the emf frequency is (a)

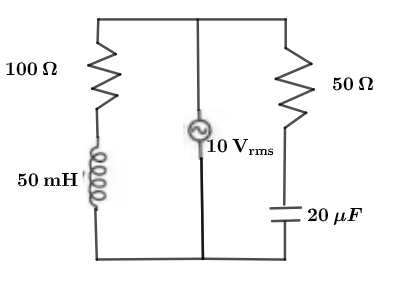

In FIGURE, what is the current supplied by the emf when
