The line bond structure is used to indicate covalent bonds by using a line to represent two electrons shared between two atoms. Line bond structure is done in a step-by-step process by starting with the first carbon and attached hydrogen atoms followed by other carbon and hydrogens.

To draw the line bond structure of propane, ${\mathrm{CH}}_3{\mathrm{CH}}_2{\mathrm{CH}}_3$, draw the first C atom bonded to three H atoms as shown:

First carbon bonded to three hydrogen atoms

Then we should draw a bond connecting the first C atom to a second C atom, followed by drawing bonds between the second C atom and two H atoms.

A bond connecting the second C atom to a third C atom is drawn, and bonds between the third C atom and three H atoms are connected.

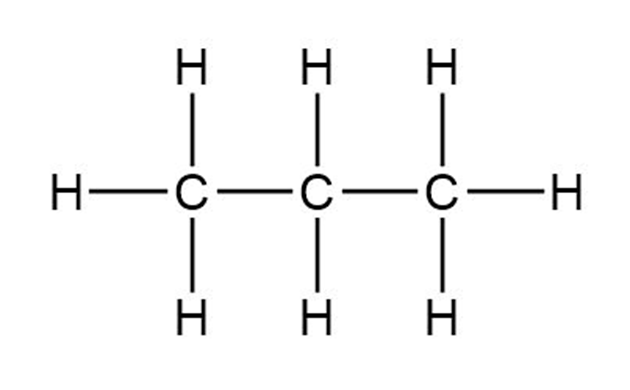

Propane line bond structure

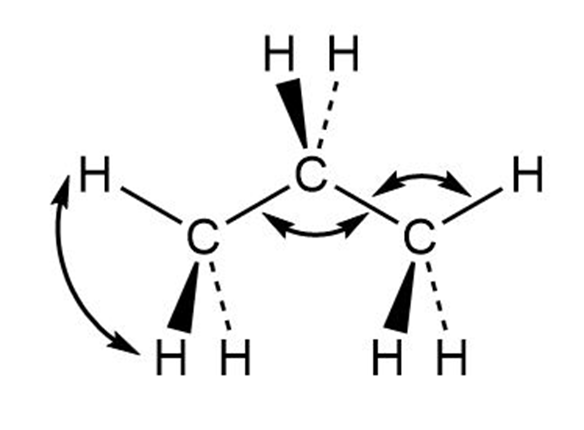

Each C atom makes 4 equivalent bonds by hybridizing its 2s and three 2p orbitals to form four equivalent atomic orbitals called${\mathrm{sp}}^3$hybrids. Because the ${\mathrm{sp}}^3$hybrids are equivalent, they are arranged about the C atom in a tetrahedral orientation. This means that they are separated by angles of approximately ${109.5}^{°}$. The arrows in the ${\mathrm{CH}}_3{\mathrm{CH}}_2{\mathrm{CH}}_3$figure indicate the different tetrahedral bond angles.

Each bond angle is approximate ${109.5}^{°}$. The shape of each C atom of propane, resembles the shape of methane,${\mathrm{CH}}_4$.

Each bond angle is${109.5}^{°}$
