Magazine Chapter 10: Q2P=b (page 290)
Draw structures corresponding to the following IUPAC names: (b) 3,3-Dichloro-2-methylhexane.
Short Answer

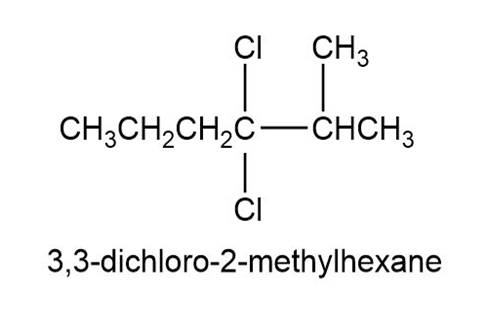

(b)The structure of the compound (b) is given below:
Step by step solution
Nomenclature of Alkyl halides
IUPAC rules used for naming of Alkyl halides
- Select longest carbon chain, it is the parent chain;
- Longest chain must contain double or triple bond, if present;
- Number the alkyl or halo substituent carbon i.e. it should possess lowest number in the parent chain;
- Assign a number to each substituent;
- Write the name of substituent鈥檚 in alphabetical order while naming;
Structure of alkyl halides
(b) As the chemical name indicates, that the given alkyl halide is hexane, which means it has six carbon atoms in the parent chain.
It is having three substituents i.e. two chloro groups and one methyl group, so they will be assigned position alphabetically and numbering is done at the end nearer the substituents.
The methyl group is positioned on number 2 and chloro on number 3 carbon. Since, the name indicates two chloro groups on C3, so it is 3,3-dichloro. Thus, the given compound has following structure:
