A spherical capacitor is formed from two concentric, spherical, conducting shells separated by vacuum. The inner sphere has a radius 15.0 cm and the capacitance is 116 pF.

(a) What is the radius of the outer sphere?

(b) If the potential difference between the two spheres is 220 V, what is the magnitude of the charge on each sphere?

Short Answer

Expert verified

The radius of the outer sphere is 17.5cm.

The magnitude of the charge Q on each sphere is 25.52nC.

Step by step solution

01

Capacitance of spherical body.

We were given a spherical capacitor where the radius of the first sphere is

C=4rarbrb-ra

a) The capacitance C is the magnitude Q of the charge on either sphere divided by the potential difference Vabbetween the spheres where we can get the capacitance as the terms of the radius of each sphere

C=4rarbrb-rarbC=raC=4rarbraC=rb(C-4ra)ra=rbCC-4ra

02

Outer radius

Now Substitute our values for C, rainto the above equation to get the radius of the outer sphere where

rb=raCC-4ra=(0.15m)(11610-12F)11610-12F-48.85410-12F/m0.15m=0.175m=17.5cm

The radius of the outer sphere is 17.5cm

03

Charge on the sphere.

b) The two spheres have the same magnitude of the charge Q but in the opposite sign. So, we can use the value of the capacitance and the potential difference Vabto get the charge by applying the equation

Q=CVab

where the charge is directly proportional to the capacitance C. Now substitute our values to get the charge Q

Q=CVab=(11610-12F)(220.0V)=25.5210-9C=25.52nC

Hence the magnitude of the charge Q on each sphere is 25.52nC

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

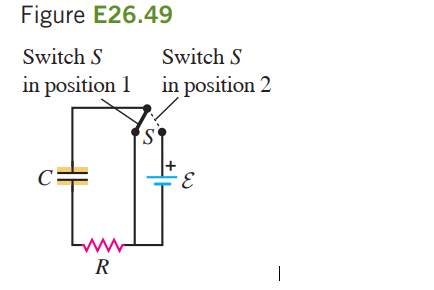

In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
