The circuit shown in Fig. E25.33 contains two batteries, each with an emf and an internal resistance, and two resistors. Find (a) the current in the circuit (magnitude and direction) and (b) the terminal voltage Vabof the 16.0-V battery.

Fig. E25.33

Short Answer

Expert verified
  1. The current in the circuit is 0.471 A.
  2. The terminal voltage Vabof the 16.0 V battery is 15.2 V

Step by step solution

01

Concept of Kirchhoff’s loop rule.

Kirchhoff’s loop rule states that the addition of all the potential differences going around the closed loop is zero.

02

  (a) Determination of the current in the circuit.

Apply the Kirchhoff’s loop rule around the circuit in the direction of the flow of current,

+16.0V-8.0V-l(1.6Ω+5Ω+1.4Ω+9.0Ω)=0l=+16.0V-8.0V1.6Ω+5Ω+1.4Ω+9.0Ω=0.471AThecalculatedvalueofIispositiveandthusthecurrentflowsinanti-clockwisedirection.

The calculated value of I is positive and thus the current flows in anti-clockwise direction.

03

(b) Determination of the terminal voltage Vab of the 16.0 V battery.

Take voltage at point a and b as respectively.

Va=Vb+16.0V-l(1.6Ω)So,Va-Vb=Vab=16.0V-(1.6Ω)(0.47A)=15.2V.Thus,thevoltageVabis15.2V.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An open plastic soda bottle with an opening diameter of 2.5cmis placed on a table. A uniform 1.75-Tmagnetic field directed upward and oriented25° from the vertical encompasses the bottle. What is the total magnetic flux through the plastic of the soda bottle?

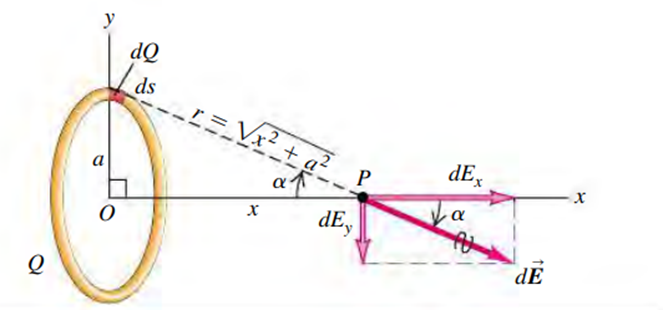

Question:A ring-shaped conductor with radius a = 2.50 cm has a total positive charge Q = +0.125 nC uniformly distributed around it (see Fig. 21.23). The center of the ring is at the origin of coordinates O. (a) What is the electric field (magnitude and direction) at point P, which is on the x-axis at x = 40.0 cm? (b) A point charge q = -2.50 μC is placed at P. What are the magnitude and direction of the force exerted by the charge q on the ring?
