In FIGURE EX12.18, what is the net torque about the axle?

Short Answer

Expert verified

The net torque on the pulley about the axle is 鈭�0.20Nm.

Direction of torque is clockwise.

Step by step solution

01

Step 1. Given information

Torque by a force is defined as 蟿=Frsin蠒,

Here 蠒is measured counterclockwise from the r鈫�vector to the F鈫�vector.

02

Step 2. Explanation

The net torque on the pulley about the axle is the torque due to the 30 N force plus the torque due to the 20 N force:

蟿=(30N)r1sin蠒1+(20N)r2sin蠒2=(30N)(0.02m)sin鈭�90掳+(20N)(0.02m)sin90掳=(鈭�0.60Nm)+(0.40Nm)=鈭�0.20Nm

The net torque on the pulley about the axle is鈭�0.20Nm

Direction of torque is clockwise.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

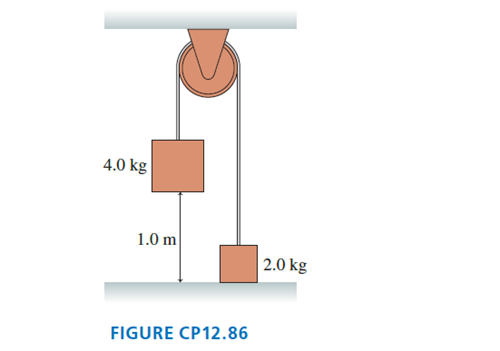

The two blocks in FIGURE CP12.86 are connected by a massless rope that passes over a pulley. The pulley is 12 cm in diameter and has a mass of 2.0 kg. As the pulley turns, friction at the axle exerts a torque of magnitude 0.50 N m. If the blocks are released from rest, how long does it take the 4.0 kg block to reach the floor?

A toy gyroscope has a ring of mass M and radius R attached to the axle by lightweight spokes. The end of the axle is distance R from the center of the ring. The gyroscope is spun at angular velocity v, then the end of the axle is placed on a support that allows the gyroscope to precess. a. Find an expression for the precession frequency 鈩� in terms of M, R, v, and g. b. A 120 g, 8.0-cm-diameter gyroscope is spun at 1000 rpm and allowed to precess. What is the precession period?

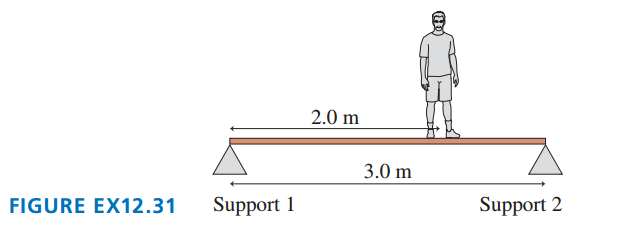

The 3.0-m-long, 100 kg rigid beam of FIGURE EX12.31 is supported at each end. An 80 kg student stands 2.0 m from support 1. How much upward force does each support exert on the beam?

A thin, 100g disk with a diameter of 8.0 cm rotates about an axis through its center with 0.15 J of kinetic energy. What is the speed of a point on the rim?

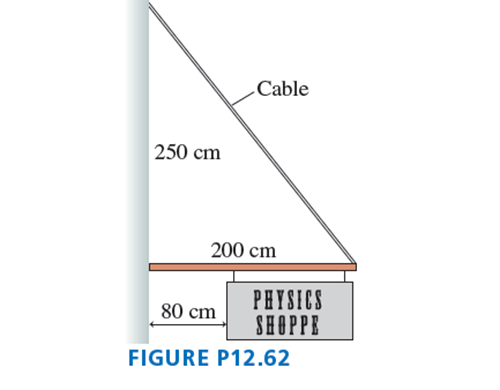

A 120-cm-wide sign hangs from a 5.0 kg, 200-cm-long pole. A cable of negligible mass supports the end of the rod as shown in Figure P12.62. What is the maximum mass of the sign if the maximum tension in the cable without breaking is 300 N?
