Chapter 4: Q. 23 (page 106)

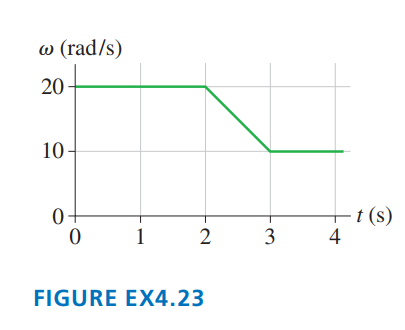

23. FIGURE EX4.23 shows the angular-velocity-versus-time graph for a particle moving in a circle. How many revolutions does the object make during the first 4s

Short Answer

Expert verified

The number if revolution made by the object during first 4s is 10.34rev.

Step by step solution

01

. Given information

The graph is drawn between angular velocity versus time for a particle.

The following graph shows the graph of angular velocity versus time of a particle for first 4s.

02

Step 2. Explanation

The formula to calculate the area of ABC is,

AOABC=OA脳AB

The formula to calculate the area of BCE is,

ABCE=12(CE)(BC)

The formula to calculate the area of DEF is,

ADEF=12(DF)(EF)

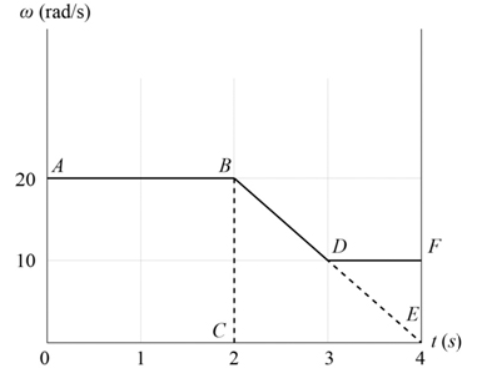

The angular displacement of the particle in first from the shown figure (I) is,

胃=AOABC+ABCE+ADEF胃=(OA脳AB)+12(CE)(BC)+12(DF)(EF)胃=((20rad/s)脳(2s))+12(2s)(20rad/s)+12(1s)(10rad/s)=40rad+20rad+5rad=65rad脳1rev2蟺rad=10.34rev

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A rubber ball is dropped onto a ramp that is tilted at 20掳, as shown in FIGURE P4.59. A bouncing ball obeys the 鈥渓aw of reflection,鈥� which says that the ball leaves the surface at the same angle it approached the surface. The ball鈥檚 next bounce is 3.0 m to the right of its first bounce. What is the ball鈥檚 rebound speed on its first bounce?

A cannon on a train car fires a projectile to the right with speed v0, relative to the train, from a barrel elevated at angle u. The cannon fires just as the train, which had been cruising to the right along a level track with speedvtrain, begins to accelerate with acceleration a, which can be either positive (speeding up) or negative (slowing down). Find an expression for the angle at which the projectile should be fired so that it lands as far as possible from the cannon. You can ignore the small height of the cannon above the track.

A bicycle wheel is rotating at 50rpm, and when the cyclist begins to pedal harder, giving the wheel a constant angular acceleration of 0.50rad/s2.

a. What is the wheel's angular velocity, in rpm, 10slater?

b. How many revolutions does the wheel make during this time?

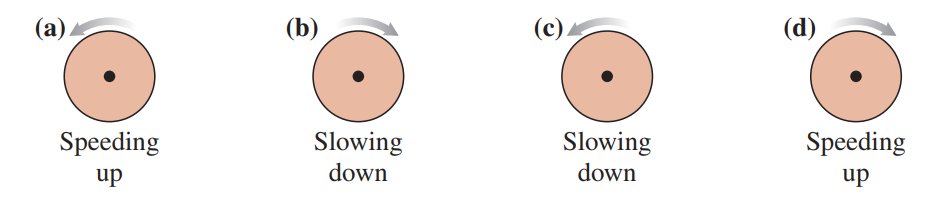

14. FIGURE Q4.14 shows four rotating wheels. For each, determine the signs (+or 鈭�)of 蝇and 伪.
