Chapter 32: Q. 40 (page 925)

a. For an RC circuit, find an expression for the angular frequency at which $V_{R} = \frac{1}{2} 蔚_{0}$
b. What is V_C at this frequency?

Short Answer

Expert verified

(a) The final expression for angular frequency is $蝇 = \frac{1}{\sqrt{3} R C}$

(b) The V_C at the given frequency is $V_{C} = \frac{\sqrt{3} 蔚_{0}}{2}$

Step by step solution

01

Part (a) Step 1: Given Information

We are given that for an RC circuit, the voltage across resistor is $V_{R} = \frac{1}{2} 蔚_{0}$ .

We have to find out the expression for angular frequency.

02

Part (a) Step 2: Simplification

We know,

$V_{R} = \frac{蔚_{0} R}{\sqrt{R^{2} + \frac{1}{蝇^{2} c^{2}}}}$ (where $V_{R} = \frac{1}{2} 蔚_{0}$ )

Here $V_{R}$ is voltage across resistor, R is the resistor, $蝇$ is the angular frequency and $c$ is the capacitor.

On simplifying we get, $\sqrt{1 + \frac{1}{蝇^{2} C^{2} R^{2}}} = 2$

$\frac{1}{蝇^{2} C^{2} R^{2}} = 3$

which gives the result , $蝇 = \frac{1}{\sqrt{3} R C}$

03

Part (b) Step 1: Given Information

We are given that for an RC circuit, the voltage across the resistor is $V_{R} = \frac{1}{2} 蔚_{0}$ and we have already find out the angular frequency $蝇 = \frac{1}{\sqrt{3} R C}$ .

We have to find out the $V_{C}$ .

04

Part (b) Step 2: Simplification

We know, the formula for voltage across the capacitor is

$V_{C} = \frac{\frac{蔚_{0}}{蝇_{C}}}{\sqrt{R^{2} + \frac{1}{蝇^{2} C^{2}}}}$

Substituting all the values in it, we get

$V_{C} = \frac{\sqrt{3} 蔚_{0}}{2}$ .

The voltage across capacitor $V_{C} = \frac{\sqrt{3} 蔚_{o}}{2}$

Unlock Step-by-Step Solutions & Ace Your Exams!

Full Textbook Solutions
Get detailed explanations and key concepts
Unlimited Al creation
Al flashcards, explanations, exams and more...
Ads-free access
To over 500 millions flashcards
Money-back guarantee
We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

a. For an RC circuit, find an expression for the angular frequency at which $V_{C} = \frac{1}{2} 蔚_{0}$ .

b. What is V_R at this frequency ?

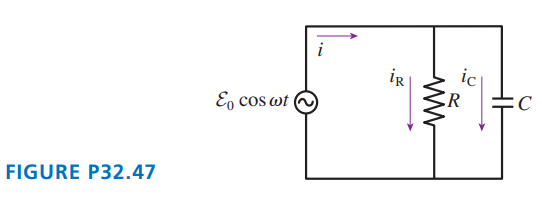

Figure P $32.47$ shows a parallel RC circuit.
