Chapter 32: Q. 16 (page 924)

A high-pass RCfilter with a crossover frequency of1000Hz uses a 100鈩� resistor. What is the value of the capacitor?

Short Answer

Expert verified

The value of the capacitor,C=1.59脳10-6F

Step by step solution

01

RC Filter

The opposite is true for an RC high-pass filter, commonly known as an RC Differentiator.

As seen above, the input signal is applied directly to the capacitor via a resistor in parallel with the output.

High-frequency signals can travel through this arrangement, whereas low-frequency impulses are blocked by the capacitor.

02

Find Capacitance

fc=1000Hz

R=100惟

w=1RC

2蟺fc=1RC

Multiply both sides byR

2蟺fcR=1C

C=12蟺fcR

Fill in the blanks in the equation

localid="1650211859861" C=12蟺脳(1000)Hz脳(100)惟

C=1.59脳10-6F

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

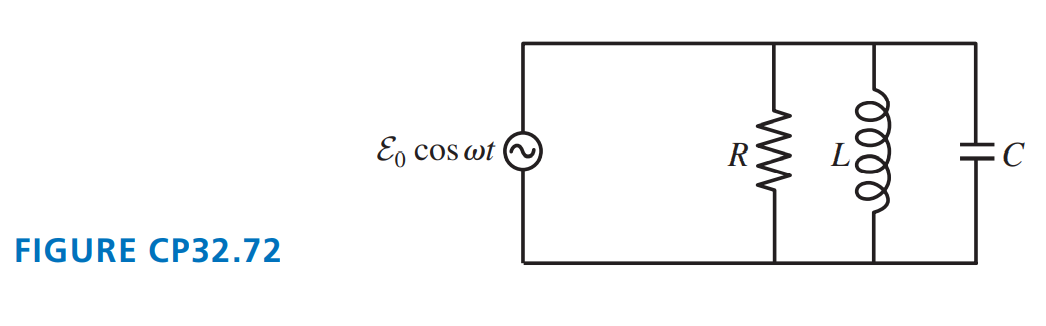

Consider the parallel RLC circuit shown in FIGURECP32.72.
