Chapter 2: Q29P (page 84)

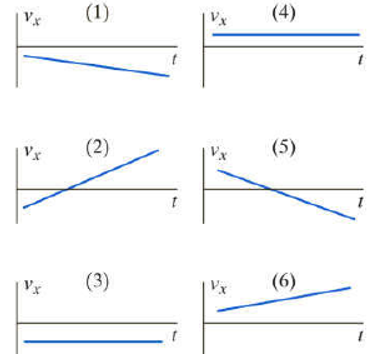

For each graph of vx vs. t numbered 1-6 in Figure, choose the letter (a-i) corresponding to the appropriate description of motion of a fan cart moving along a track. Not all descriptions will be used. Assume the usual coordinate system (+x to the right, +y up. +z out of the page).

(a) A cart moves to the left, gradually slowing down.

(b) A cart moves to the right, gradually speeding up.

(c) A cart moves to the left at a constant speed.

(d) A cart moves to the left, gradually slowing down, stops, and moves to the right, speeding up.

(e) A cart remains stationary and does not move.

(f) A cart moves to the right, gradually slowing down,

(g) A cart moves to the right. gradually slowing down, stops, and moves to the left, speeding up.

(h) A cart moves to the left, gradually speeding up.

(i) A cart moves to the right at a constant speed.

Short Answer

Expert verified

(a) None

(b)

(c)

(d)

(e) None

(f) None

(g)

(h)

(i)

Step by step solution

01

Velocity

The rate at which displacement changes with respect to time is known as velocity. Same as displacement velocity is also a vector quantity.

02

A cart moves to the left, gradually slowing down

(a)

There is no graph that matches this type of description of motion.

03

A cart moves to the right, gradually speeding up

(b)

This description matches this graph in which Vx is positive and increasing.

Hence the answer is graph number 6.

04

A cart moves to the left at a constant speed.

(c)

This description matches this graph in which Vx is negative and constant.

Hence the answer is graph number 3.

05

A cart moves to the left, gradually slowing down, stops, and moves to the right, speeding up

(d)

This description matches this graph in which Vx is initially negative, then positive, and increasing.

Hence the answer is graph number 2.

06

 A cart remains stationary and does not move

(e)

There is no graph that matches this type of description of motion

07

 A cart moves to the right, gradually slowing down

(f)

There is no graph that matches this type of description of motion.

08

A cart moves to the right. Gradually slowing down, stops, and moves to the left, speeding up

(g)

This description matches this graph in which Vx is initially positive and then negative and decreasing, and at a point, it is zero, then again increasing.

Hence the answer is graph number 5.

09

A cart moves to the left, gradually speeding up

(h)

This description matches this graph in which Vx is negative and increasing.

Hence the answer is graph number 1.

10

 A cart moves to the right at a constant speed.

(i)

This description matches this graph in which Vx is positive and constant.

Hence the answer is graph number 4.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You throw a metal block of mass \(0.25\;\;{\rm{kg}}\)into the air, and it leaves your hand at time\(t = 0\)at location\(\langle 0,2,0\rangle \;{\rm{m}}\)with velocity\(\langle 3,4,0\rangle \;{\rm{m}}/{\rm{s}}\). At this low velocity air resistance is negligible. Using the iterative method shown in Section\(2.4\)with a time step of\(0.05\;\;{\rm{s}}\),calculate step by step the position and velocity of the block at\(t = 0.05\;\;{\rm{s}},t = 0.10\;\;{\rm{s}}\), and\(t = 0.15\;\;{\rm{s}}\)

You observe three carts moving to the left. Cart A moves to the left at nearly constant speed. Cart B moves to the left, gradually speeding up. Cart C moves to the left, gradually slowing down. Which cart or carts, if any, experience a net force to the left?

A space station has the form of a hoop of radius R=14m, with mass M=6250 kg(Figure 11.91). Initially its center of mass is not moving, but it is spinning with angular speed 蝇0=0.0013rad/sThen a small package of mass m=6kgis thrown by a spring-loaded gun toward a nearby spacecraft as shown; the package has a speedv=40m/s after launch. Calculate the center-of-mass velocity of the space station and its rational speed after the launch.

A cart rolls with low friction on a track. A fan is mounted on the cart, and when the fan is turned on, there is a constant force acting on the cart. Three different experiments are performed:

(a) Fan off: The cart is originally at rest. You give it a brief push, and it coasts a long distance along the track in the +x direction, slowly coming to a stop.

(b) Fan forward: The fan is turned on, and you hold the cart stationary. You then take your hand away, and the cart moves forward, in the +x direction. After traveling a long distance along the track, you quickly stop and hold the cart.

(c) Fan backward: The fan is turned on facing the 鈥渨rong鈥� way, and you hold the cart stationary. You give it a brief push, and the cart moves forward, in the +x direction, slowing down and then turning around, returning to the starting position, where you quickly stop and hold the cart. Figure 2.57 displays four graphs of px (numbered 1鈥�4), the x component of momentum, vs. time. The graphs start when the cart is at rest, and end when the cart is again at rest. Match the experiment with the correct graph.

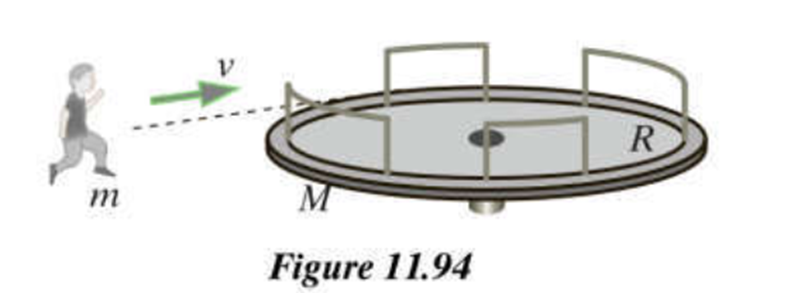

A playground ride consists of a disk of mass M=43kgand radius R=1.7mmounted on a low-friction axle (Figure 11.94). A child of mass m=25kgruns at speed v=2.3m/son a line tangential to the disk and jumps onto the outer edge of the disk.
