You throw a metal block of mass \(0.25\;\;{\rm{kg}}\)into the air, and it leaves your hand at time\(t = 0\)at location\(\langle 0,2,0\rangle \;{\rm{m}}\)with velocity\(\langle 3,4,0\rangle \;{\rm{m}}/{\rm{s}}\). At this low velocity air resistance is negligible. Using the iterative method shown in Section\(2.4\)with a time step of\(0.05\;\;{\rm{s}}\),calculate step by step the position and velocity of the block at\(t = 0.05\;\;{\rm{s}},t = 0.10\;\;{\rm{s}}\), and\(t = 0.15\;\;{\rm{s}}\)

Short Answer

Expert verified

The position and velocity with respect to time are shown

\(t = 0.05\;{\rm{s}}\),\({\vec r_f} = \langle 0.15,2.176,0\rangle {\rm{m}}\)\({\vec v_f} = \langle 3,3.512,0\rangle {\rm{m}}/{\rm{s}}\).

\(t = 0.10\;{\rm{s}}\),\({\vec r_f} = \langle 0.3,2.327,0\rangle {\rm{m}}\),\({\vec v_f} = \langle 3,3.024,0\rangle {\rm{m}}/{\rm{s}}\).

\(t = 0.15\;{\rm{s}}\), \({\vec r_f} = \langle 0.45,2.454,0\rangle {\rm{m}}\)\({\vec v_f} = \langle 3,2.536,0\rangle {\rm{m}}/{\rm{s}}\).

Step by step solution

01

Given

A metal block of mass \(0.25\;\;{\rm{kg}}\)into the air, and it leaves your hand at time\(t = 0\)at location\(\langle 0,2,0\rangle \;{\rm{m}}\)with velocity\(\langle 3,4,0\rangle \;{\rm{m}}/{\rm{s}}\)

02

Define the Iterative Method

The Iterative Method is a mathematical way of solving a problemby repeatedly using the value of previous solution in the next solution it starts from one assume value.

03

Step 3: The position and velocity of the block at \(\Delta t = 0.05\;{\rm{s }}\)

There is no interaction between your hand and the block after it leave your hand, and since we ignore air resistance, the only force that acts on the block is the gravitational force, so

\(\begin{aligned}{c}{{\vec F}_{{\rm{net }}}} &= {{\vec F}_g}\\ &= m\vec g\\ &= (0.25)\langle 0, - 9.8,0\rangle \\ = \langle 0, - 2.45,0\rangle {\rm{N}}\end{aligned}\)

The future momentum the will had at the end of this time step is

\(\begin{aligned}{c}{{\vec p}_f} &= {{\vec p}_i} + {{\vec F}_{{\rm{net }}}}\Delta t\\ &= \langle 0.75,1,0\rangle + \langle 0, - 2.45,0\rangle (0.05)\\ &= \langle 0.75,0.878,0\rangle {\rm{kg}} \cdot {\rm{m}}/{\rm{s}}\end{aligned}\)

\(\begin{aligned}{c}{{\vec v}_f} &= \frac{{{{\vec p}_f}}}{m}\\ &= \frac{{\langle 0.75,0.878,0\rangle }}{{0.25}}\end{aligned}\)

\(\begin{aligned}{c}{{\vec v}_f} &= \frac{{{{\vec p}_f}}}{m}\\ &= \frac{{\langle 0.75,0.878,0\rangle }}{{0.25}}\\ &= \langle 3,3.512,0\rangle {\rm{m}}/{\rm{s}}\end{aligned}\)

The velocity at time\(t = 5\;{\rm{s}}\)is\(\langle 3,3.512,0\rangle \;{\rm{m}}/{\rm{s}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A paddle ball toy consists of a flat wooden paddle and asmall rubber ball that are attached to each other by an elastic band (Figure 2.61). You have a paddle ball toy for which the mass of the ball is 0.015 kg, the stiffness of the elastic band is 0.9 N/m, and the relaxed length of the elastic band is 0.30 m. You are holding the paddle so the ball hangs suspended under it, when your cat comes along and bats the ball around, setting it in motion. At a particular instant the momentum of the ball is⟨-0.02,-0.01,-0.02⟩kg⋅m/s , and the moving ball is at location ⟨-0.2,-0.61,0⟩m relative to an origin located at the point where the elastic band is attached to the paddle.

(a) Determine the position of the ball 0.1 s later, Δtusing of 0.1 s.

(b) Starting with the same initial position

(⟨-0.2,-0.61,0⟩m)and momentum(⟨-0.02,-0.01,-0.02⟩kg⋅m/s) , determine the position of the ball 0.1 s later, using a of 0.05 s. (c) If your answers are different, explain why.

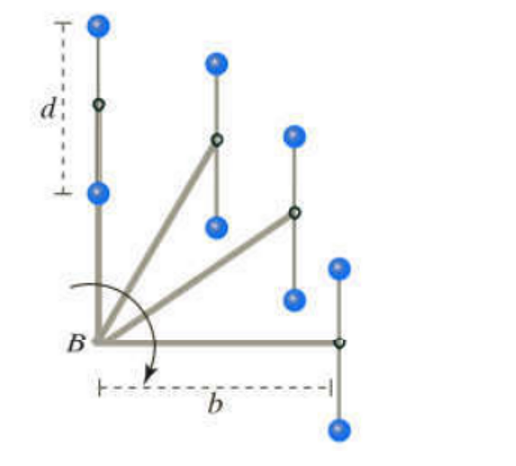

A barbell consist of two small balls, each with mass m=0.4kg,at the ends of a very low mass rod of length d=0.6m. It is mounted on the end of a low-mass rigid rod of lengthb=0.9m(figure). The apparatus is set in motion in such a way that although the rod rotates clockwise with angular speed localid="1668604224599" Ӭ1=15rad/s, the barbell maintains its vertical orientation. Calculate these vector quantities: (a) localid="1668604234930" L→rot, (b) localid="1668604258387" L→trans,B,(c) localid="1668604276383" L→tot,B.
