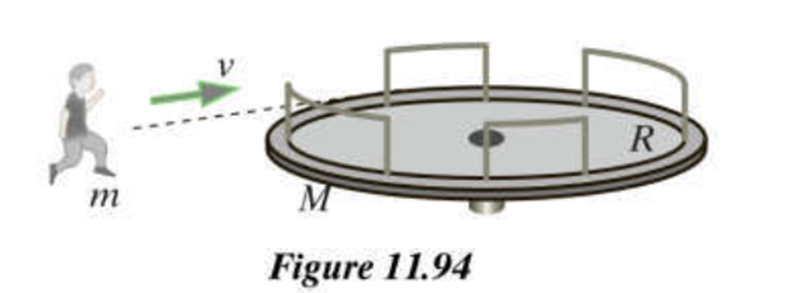

A playground ride consists of a disk of mass M=43kgand radius R=1.7mmounted on a low-friction axle (Figure 11.94). A child of mass m=25kgruns at speed v=2.3m/son a line tangential to the disk and jumps onto the outer edge of the disk.

(a.) If the disk was initially at rest, now how fast is it rotating? (b) What is the change in the kinetic energy of the child plus the disk? (c) where has most of this kinetic energy gone? (d) Calculate the change in linear momentum of the system consisting of the child plus the disk (but not including the axle), from just before to just after impact. What caused this change in the linear momentum? (e) The child on the disk walks inward on the disk and ends up standing at a new location a distance from the axle. Now what is the angular speed? (f) What is the change in the kinetic energy of the child plus the disk, from the beginning to the end of the walk on the disk? (g) What was the source of this increased kinetic energy?

Short Answer

Expert verified

The final angular velocity of the disk is 0.727rad/s.

The final kinetic energy of the system is-30.6J .

The magnitude of the linear momentum of the disk is84.048kg.m/s.

The final angular speed of the system is 1.313rad/s.

The change in kinetic energy is 28.6J.

Step by step solution

01

Definition of Kinetic energy and the linear momentum.

The kinetic energy is the measure of the work that an object does by virtue of its motion. Simple act like walking, jumping, throwing, and falling involves kinetic energy.

The momentum of translation being a vector quantity in classical physics equal to the product of the mass and the velocity of the centre of mass.

02

Define the conservation of angular momentum.

Apply conservation of angular momentum to solve for the final angular velocity of the play-ground ride by considering the child and the play-ground ride as a system.

Initial angular momentum of the child is,Li,child=mvR

Initially the disk is at rest, so the initial angular momentum of the disk is,

Li,disk=0

The initial angular momentum of the system is,

Li=mvR

The moment of inertia of the playground (disk) relative to the axle is,

Iplay=12MR2

The moment of inertia of the child relative to the axle is the sum of the moment of inertias of the child and the playground.

If=Ichild+Iplay

=mR2+12MR2=m+M2R2

03

Find the angular velocity of the disk.

The final angular momentum of the system is

Lf=If+f

The net external torque acting on the system is zero, so the angular momentum of the system is conserved.

net=dLdt0=dLdtLf=Li

Therefore, the final angular speed of the disk can be calculated as,

=LfIf=mvRm+M2R2=mvm+M2R

Substitute 25kgform,2.3m/sforv,43kgfor Mand 1.7mfor Rin =mvm+M2R

=(25kg)(2.3m/s)25kg+43kg2(1.7m)

=0.727rad/s

Thus, the final angular velocity of the disk is0.727rad/s

04

Find the final kinetic energy of the system.

(b) Initial kinetic energy of the child is KC=12mv2

Substitute 25kgfor m,and 2.3m/sf

=KC=12(25kg)(2.3m/s)2=66.1J

Initially the disk is at rest, so the initial angular speed of the disk is0.727rad/s

The initial rotational kinetic energy of the system is zero.

Therefore, the total initial kinetic energy of the child-disk system is,

Ki=66.1J

Final angular speed of the disk,f=0.727rad/s

Final, moment of inertia of the system,Ifm+M2R2

The final kinetic energy of the system can be calculated as

Kf=12Iff2=12m+M2R2f2=1225kg+43kg2(1.7m)2(0.727rad/s)2=35.51J

Therefore, the change in the kinetic energy of the child plus disk is,

K=Kf-Ki=35.51J-66.1J=-30.6J

(c) The loss in kinetic energy is used to do work against friction force.

05

Find the X component of linear momentum.

(d.) The magnitude of the linear momentum of the disk just after the collision is,

=pf=(m+M)=(25kg+43kg)(1.236m/s)=84.048kg.m/s


(e) Take thex-axisto be in the direction of the initial velocity of the child.

Thecomponent of the initial linear momentum of the system is

=pi,x=mv=(25kg)(23m/s=57.5kg.m/s

The component of the final linear momentum of the system is

pf,x=84.048kg.m/s

Therefore, the change in thecomponent of linear momentumis

px=pf,x=pi,x=84.048kg.m/s-57.5kg.m/s=26.548kg.m/s

The linear momentum of the system changed due to the force exerted by the axle on it.

06

Find the angular speed of the disk.

Conserve angular momentum as there is no external torques acting on the system. The expression for the initial moment of inertia of the system is,

Ii=mR2+12MR2=m+M2R2

Substitute25kgform,43kgforM,and1.7mfor RinIi=m+M2R2

Ii=25kg+43kg2(1.7m)2=134.385kg.m2

The final moment of inertia of the child at a distancerelative to the axle is the sum of the moment of inertias of the child and the playground.

If=Ichild+Iplay=m(R')2+12MR2=(25kg)(0.7m)2+12(43kg)(1.7m)2=74.385kg.m2

Apply the law of conservation of angular momentum to the system.

Iii=If+f

The final angular speed of the system can be calculated as

f=IiIfi=134.385kg.m274.385kg.m2(0.727rad/s)=1.313rad

f=IiIfi=134.385kg.m274.385kg.m2(0.727rad/s)=1.313rad/s

07

Find the change in Kinetic energy.

(f) The expression for final rotational kinetic energy of the child-disk system is,

kf=12Iff2

Substitute74.385kg.mforIfand1.313rad/sfor fin kf=12Iff2.

kf=12Iff2.

kf=12(74.385kg.m2)(1.313rad/s)2=64.11J

Thus, change in kinetic energy is,

kf-ki=64.11J-35.51J=29J

Therefore, the change in kinetic energy is28.6J

(g.) The work-energy theorem states that the work done by the system is equal to the change in kinetic energy. The work is done by the child, while he is walking inwards on the disk. Therefore, the change in kinetic energy is due to the work done by the child.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

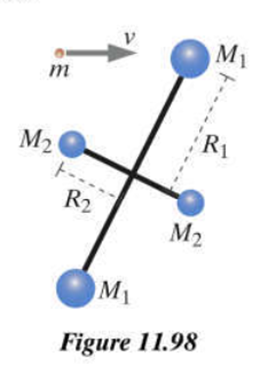

A device consisting of four heavy balls connected by low-mass rods is free to rotate about an axle, as shown in (Figure 11.98). It is initially not spinning. A small bullet traveling very fast buries itself in one of the balls.m=0.002kg, v=550m/s, M1=1.2kgM2=0.4kgm=0.002kg,R1=0.6mand R2=0.2m.The axle of the device is at the origin <0,0,0> and the bullet strikes at location <0.155,0.580,0>m .Just after the impact, what is the angular speed of the device? Note that this is an inelastic collision; the system鈥檚 temperature increases.
