A spacecraft traveling at a velocity of <-20,-90,40>m/sis observed to be at a location <200,300,-500>relative to an origin located on a nearby asteroid. At a later time the spacecraft is at location <-380,-2310,660>m.

(a)How long did it take the spacecraft to travel between these locations?

(b)How far did the spacecraft travel?

(c)What is the speed of the spacecraft?

(d)What is the unit vector in the direction of the spacecraft’s velocity?

Short Answer

Expert verified

(a) It took 29 s for the spacecraft to travel between the locations.

(b) The spacecraft traveled 2914.46 m.

(c) The speed of the spacecraft is 100.5 m/s.

(d) The unit vector in the direction of the spacecraft's velocity is -0.199i^-0.896j^+0.398k^.

Step by step solution

01

Given data

Velocity of the spacecraft is <-20,-90,40>m/s.

Initial position of the spacecraft is <200,300,-500>.

Final position of the spacecraft is <-380,-2310,660>m.

02

Position vector, magnitude of a vector and unit vector

The position vector of a location <x1,y1,z1> with respect to another location <x2,y2,z2>is

r→=(x2-x1)i^+(y2-y1)j^+(z2-z1)k^.....l

The magnitude of a vectorr→=xi^+yj^+zk^is

|r→|=x2+y2+z2....ll

The unit vector along a vector r→is

r^=r→|r→|.....lll

03

Determining the time of travel of the spacecraft

From equation (I), the velocity vector of the spacecraft with respect to the origin <0,0,0>is

v→=-20i^-90j^+40k^m/s

Displacement vector is the position vector of the final position with respect to the initial position. From equation (I), the displacement vector of the spacecraft is

r→=200--380i^+300--2310j^+-500-660k^m=580i^+2610j^-1160k^m

The time of travel is obtained by dividing the magnitude of position by magnitude of velocity along any one coordinate. The operation along the other coordinates will yield the same result. Thus, the operation along x axis yields

t=580m20m/s=29s

Thus, the required time is 29s.

04

Determining the distance traveled by the spacecraft

Distance traveled is the magnitude of displacement vector. From equation (II), the magnitude of r→ is

r→=5802+26102+-11602m=336400+6812100+1345600m=2914.46m

Thus, the required distance is 2914.46 m .

05

Determining the speed of the spacecraft

Speed is the magnitude of velocity vector. From equation (II), the magnitude of v→is

v→=-202+-902+402m/s=400+8100+1600m/s=100.5m/s

Thus, the required speed is 100.5 m/s .

06

Determining the unit vector along the velocity

From equation (III), the unit vector along v→ is

v^=-20i^-90j^+40k^m/s100.5m/s=-0.199i^-0.896j^+0.398k^

Thus, the required unit vector is -0.199i^-0.896j^+0.398k^.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The position of a golf ball relative to the tee changes from<50,20,30>m to<53,18,31>m in0.1second. As a vector, write the velocity of the golf ball during this short time interval.

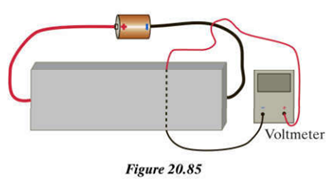

Question: the Hall effect can be used to determine the sign of the mobile charges in a particular conducting material. A bar of a new kind of conducting material is connected to a battery as shown in Figure 20.85. In this diagram, the x-axis runs to the right, the y-axis runs up, and the z-axis runs out of the page, toward you. A voltmeter is connected across the bar as shown, with the leads placed directly opposite each other along a vertical line. In order to answer the following question, you should draw a careful diagram of the situation, including all relevant charges, electric fields, magnetic fields, and velocities.

Initially, there is no magnitude filed in the region of the bar. (a) Inside the bar, what is the direction of the electric field E→due to the charges on the batteries and the surface of the wires and the bar? This is the electric field that drives the current in the bar. (b) If the mobile charges in the bar are positive in what direction do they move when the current runs? (c) If the mobile charges in the bar are negative, in what direction do they move when the current runs? (d) In this situation (zero magnetic fields), what is the sign of the reading on the voltmeter?

Next, large coils (not shown) are moved near the bar. And current runs through the coils, making a magnetic field in the -z direction (into the page). (e) If the mobile charges in the bar are negative, what is the direction of the magnetic force on the mobile charge? (f) If the mobile charges in the bar are negative, which of the following things will happen? (1) Positive charge will accumulate on the top of the bar. (2) The bar will not becomes polarized. (3) Negative charge will accumulate on the left end of the bar. (4) Negative charge will accumulate on the top of the bar. (g) If the mobile charges in the bar are positive, what is the direction of the magnetic force on the mobile charges? (h) If the mobile charges in the bar are positive, which of these things will happen? (1) positive charge will accumulate on the top of the bar. (2) The bar will not becomes polarized. (3) Positive charge will accumulate on the right end of the bar. (4) Negative charge will accumulate on the top of the bar.

You look at the voltmeter and find that the reading on the meter is -5×10-4volts. (i) What can you conclude from this observation? (Remember that a voltmeter gives a positive reading if the positive lead is attached to the higher potential location.) (1) There is not enough information to figure out the sign of the mobile charges. (2) The mobile charges are negative. (3) The mobile charges are positive.

Question:A ball moves in the direction of the arrow labelled in Figure. The ball is struck by a stick that briefly exerts a force on the ball in the direction of the arrow labelled. Which arrow best describes the direction of, the change in the ball's momentum?

You observe three carts moving to the left. Cart A moves to the left at nearly constant speed. Cart B moves to the left, gradually speeding up. Cart C moves to the left, gradually slowing down. Which cart or carts, if any, experience a net force to the left?

A spherical satellite of approximately uniform density with radius\(4.8m\)and mass\(205kg\)is originally moving with velocity\(\left\langle {2600,0,0} \right\rangle m/s,\)and is originally rotating with an angular speed\(2rad/s,\)in the direction shown in the diagram. A small piece of space junk of mass\(4.1kg\)is initially moving toward the satellite with velocity\(\left\langle { - 2200,0,0} \right\rangle m/s.\)The space junk hits the edge of the satellite at location C as shown in Figure 11.97, and moves off with a new velocity\(\left\langle { - 1300,480,0} \right\rangle m/s.\)Both before and after the collision, the rotation of the space junk is negligible.
