Chapter 2: Q24P (page 45)

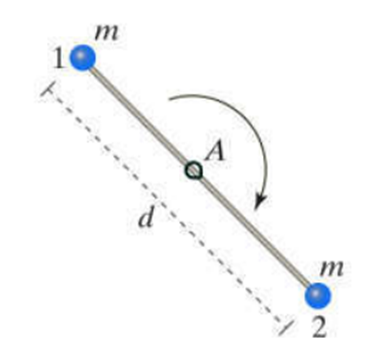

In figure a barbell spins around a pivot at its center at\(A\). The barbell consists of two small balls, each with mass \(500{\rm{ g}}\left( {0.5{\rm{ kg}}} \right)\), at the ends of a very low mass rod of length the \(d = 20{\rm{ cm}}\left( {0.2{\rm{ m}}} \right)\) the radius of rotation is\(0.1{\rm{ m}}\)). The barbell spins clockwise with angular speed \(80{\rm{ }}{{{\rm{rad}}} \mathord{\left/{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.s} {\rm{}}}\)

We can calculate the angular momentum and kinetic energy of this object in two different ways, by treating the object as two separate balls or as one barbell. Use the usual coordinate system, with\(x\)to the right,\(y\)toward the top of the page, and\(z\)out of the page, toward you.

I . Treat the object as two separate balls. Calculate the following quantities:

a.The speed of ball 1, (b)\({\overrightarrow L _{trans,1,A}}\)of ball 1, (c)\({\overrightarrow L _{trans,2,A}}\)of ball 2, (d)\({\overrightarrow L _{tot,A}}\)(e) the translational kinetic energy of ball 1, (f) the translational kinetic energy of ball 3, (g) the total kinetic energy of the barbell.

II .Treat the object as one barbell. Calculate the following quantities:

(h) The moment of inertia\(I\)of the barbell, (i)\(\overrightarrow \omega \)expressed as a vector, (j)\({\overrightarrow L _{rot}}\)of the barbell, (k)\({K_{rot}}\).

III. Compare the two approaches:

  1. Compare your result for\({\overrightarrow L _{tot,A}}\)in part\(I\)to your result for\({\overrightarrow L _{rot}}\)in part\(II\). Should these quantities be the same or different?
  2. Compare your result for\({K_{total}}\)in part\(I\)to your result for\({K_{rot}}\)in part\(II\). Should these quantities be the same, or different?

Short Answer

Expert verified
  1. The speed of ball 1 is \(8.0{\rm{ }}{{\rm{m}} \mathord{\left/ {\vphantom {{\rm{m}} {\rm{s}}}} \right.s} {\rm{}}}\).
  2. The transitional angular momentum of the ball 1 with respect to A is \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\) and it is directed along normally inward to the plane of paper.
  3. The transitional angular momentum of the ball 2 with respect to A is \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\) and it is directed along normally inward to the plane of paper.
  4. The total transitional angular momentum of the system of the two balls is and \(0.80{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\) which is directed normally into the page.
  5. The translation kinetic energy of that ball 1 is \({\rm{16 J}}\).
  6. The translation kinetic energy of that ball 2 is \({\rm{16 J}}\).
  7. The total kinetic energy of the barbell is \({\rm{32 J}}\).
  8. The moment of inertia of the barbell is \(1.00 \times {10^{ - 3}}{\rm{ kg}} \cdot {{\rm{m}}^{\rm{2}}}\).
  9. The vector notation for the angular velocity of the barbell is \(\overrightarrow \omega = - \left( {80{\rm{ }}{{{\rm{rad}}} \mathord{\left/ {\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\widehat z\).
  10. The total rotational angular momentum of the barbell is \(0.80{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)and is directed normally into the page.
  11. The total rotational kinetic energy of the barbell is \({\rm{32 J}}\).

1. The calculated value of the total transitional angular momentum of the barbell in part (I) is same as the calculated value of the total rotational angular momentum of the barbell in part (II).

2. Hence, the calculated value of the total kinetic energy of the barbell in part (I) is same as the calculated of the total rotational kinetic energy of the barbell in part (II).

Step by step solution

01

Definition of moment of inertia and angular momentum:

Angular momentum, property characterizing the rotary inertia of an object or system of objects in motion about an axis that may or may not pass through the object or system.

Moment of inertia is defined as the quantity expressed by the body resisting angular acceleration which is the sum of the product of the mass of every particle with its square of a distance from the axis of rotation.

02

(a) Find the speed of the ball 1:

I.

  1. The object is treated as two separate balls,

Use the radius of rotation and energy velocity of the ball 1 to find the speed of the ball 1

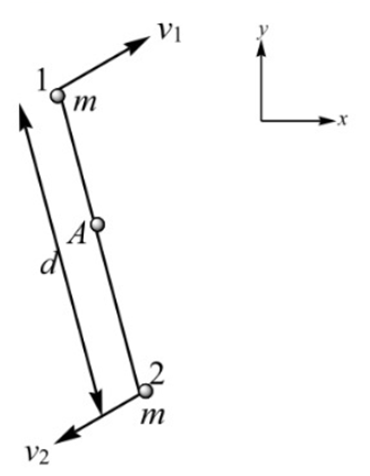

The figure shows that a barbell spins around a pivot point at point A.

The speed of the ball 1 in terms of angular speed is,

\({v_1} = {r_1}{\omega _1}\)

Here, \({r_1}\)is radius of rotation of ball 1 and \({\omega _1}\)is angular speed of the ball 1.

Substitute \(10{\rm{ cm}}\) for \({r_1}\) and \(18{\rm{ }}{{{\rm{rad}}} \mathord{\left/{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.} {\rm{s}}}\) for \({\omega _1}\).

\(\begin{aligned}{}{v_1} &= \left( {10{\rm{ cm}}} \right)\left( {18{\rm{ }}{{{\rm{rad}}} \mathord{\left/ {\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\\ &= \left( {10{\rm{ cm}}} \right)\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ cm}}}}} \right)\left( {18{\rm{ }}{{{\rm{rad}}} \mathord{\left/{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\\ &= 8{\rm{ }}{{\rm{m}} \mathord{\left/ {\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

Hence, the speed of ball 1 is\(8{\rm{ }}{{\rm{m}} \mathord{\left/ {\vphantom {{\rm{m}} {\rm{s}}}} \right. } {\rm{s}}}\).

03

(b) Find the transitional angular momentum of the ball 1 with respect to A:

The linear momentum of the ball 1 is,

\({p_1} = {m_1}{v_1}\)

Here, \({m_1}\) is mass of the ball 1.

Substitute \(0.5{\rm{ kg}}\) for \({m_1}\) and \(8{\rm{ }}{{\rm{m}} \mathord{\left/

{\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}\)for \({v_1}\) in the above equation.

\(\begin{aligned}{}{p_1} = \left( {0.5{\rm{ kg}}} \right)\left( {8{\rm{ }}{{\rm{m}} \mathord{\left/ {\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\\ = 4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

The transitional angular momentum of the ball 1 with respect to A is

\({\overrightarrow L _{trans,1,A}} = {r_1}{p_1}\sin {\theta _1}\)

Here, \({\theta _1}\)is angle between \({r_1}\)and \({p_1}\).

Substitute \(10{\rm{ cm}}\)for \({r_1}\), \(4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}\) for \({p_1}\), and \(90^\circ \)for \({\theta _1}\) in the above equation.

\(\begin{aligned}{}{\overrightarrow L _{trans,1,A}} = \left( {10{\rm{ cm}}} \right)\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ m}}}}} \right)\left( {4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\sin 90^\circ \\ = 0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

Therefore, the transitional angular momentum of the ball 1 with respect to A is \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)and it is directed along normally inward to the plane of paper.

04

(c) Find the transitional angular momentum of the ball 2 with respect to A:

The speed of the ball 2 in terms of angular speed is,

\({v_2} = {r_2}{\omega _2}\)

Here, \({r_2}\)is radius of rotation of ball 2 and\({\omega _2}\)is angular speed of the ball 2.

Substitute \(10{\rm{ cm}}\)for \({r_2}\)and \(80{\rm{ }}{{{\rm{rad}}} \mathord{\left/

{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.}{\rm{s}}}\)for \({\omega _2}\).

\(\begin{aligned}{}{v_2} = \left( {10{\rm{ cm}}} \right)\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ cm}}}}} \right)\left( {80{\rm{ }}{{{\rm{rad}}} \mathord{\left/{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\\ = 8.0{\rm{ }}{{\rm{m}} \mathord{\left/ {\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

The linear momentum of the ball 2 is,

\({p_2} = {m_2}{v_2}\)

Here, \({m_2}\) is mass of the ball 2.

Substitute \(0.5{\rm{ kg}}\)for \({m_2}\)and \(8.0{\rm{ }}{{\rm{m}} \mathord{\left/

{\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}\)for \({v_2}\) in the above equation, and you get

\(\begin{aligned}{c}{p_2} = \left( {0.5{\rm{ kg}}} \right)\left( {8.0{\rm{ }}{{\rm{m}} \mathord{\left/

{\vphantom {{\rm{m}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\\ = 4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/{\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

The transitional angular momentum of the ball 2 with respect to A is,

\({\overrightarrow L _{{\mathop{\rm t}\nolimits} rans,2,A}} = {r_2}{p_2}\sin {\theta _2}\)

Here, \({\theta _2}\)is angle between \({r_2}\)and \({p_2}\).

Put\(10{\rm{ cm}}\) for \({r_2}\), \(4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}\) for\({p_2}\), and \(90^\circ \)for \({\theta _2}\) in the above equation.

\(\begin{aligned}{c}{\overrightarrow L _{{\mathop{\rm t}\nolimits} rans,2,A}} = \left( {10{\rm{ cm}}} \right)\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ cm}}}}} \right)\left( {4.0{\rm{ }}{{{\rm{kg}} \cdot {\rm{m}}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {\rm{m}}} {\rm{s}}}} \right.} {\rm{s}}}} \right)\sin 90^\circ \\ = 0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

Hence, the transitional angular momentum of the ball 2 with respect to A to \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)and it is directed along normally inward to the plane of paper.

05

Step 5:(d) Find the total transitional angular momentum of the system:

The total transitional angular momentum of the system of the two balls is,

\({\overrightarrow L _{tot,A}} = {\overrightarrow L _{trans,1,A}} + {\overrightarrow L _{trans,2,A}}\)

Substitute \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)for \({\overrightarrow L _{trans,1,A}}\) and \(0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)for \({\overrightarrow L _{trans,2,A}}\)

\(\begin{aligned}{c}{\overrightarrow L _{tot,A}} = 0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/ {\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}} + 0.40{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\\ = 0.80{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\end{aligned}\)

Therefore, the total transitional angular momentum of the system of the two balls is and \(0.80{\rm{ }}{{{\rm{kg}} \cdot {{\rm{m}}^2}} \mathord{\left/

{\vphantom {{{\rm{kg}} \cdot {{\rm{m}}^2}} {\rm{s}}}} \right.} {\rm{s}}}\)is directed normally into the page.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A Ping-Pong ball is acted upon by the Earth, air resistance, and a strong wind. Here are the positions of the ball at several times.

Early time interval:

At\(t = 12.35\;{\rm{s}}\), the position was\(\left\langle {3.17.2.54, - 9.38} \right\rangle {\rm{m}}\).

At\(t = 12.37\;{\rm{s}}\), the position was\(\left\langle {3.25,2.50, - 9.40} \right\rangle \;{\rm{m}}\).

Late time interval:

At\(t = 14.35\;{\rm{s}}\), the position was\(\left\langle {11.25, - 1.50, - 11.40} \right\rangle \;{\rm{m}}\).

At\(t = 14.37\;{\rm{s}}\), the position was\(\left\langle {11.27, - 1.86, - 11.42} \right\rangle \;{\rm{m}}\).

(a) In the early time interval, from \(t = 12.35\;{\rm{s}}\) to \(t = 12.37\;{\rm{s}}\), what was the average momentum of the ball? The mass of the Ping-Pong ball is \(2.7\) grams \(\left( {2.7 \times {{10}^{ - 3}}\;{\rm{kg}}} \right)\). Express your result as a vector. (b) In the late time interval, from \(t = 14.35\;{\rm{s}}\) to \(t = 14.37\;{\rm{s}}\), what was the average momentum of the ball? Express your result as a vector. (c) In the time interval from \(t = 12.35\;{\rm{s}}\) (the start of the early time interval) to \(t = 14.35\;{\rm{s}}\) (the start of the late time interval), what was the average net force acting on the ball? Express your result as a vector.

You observe three carts moving to the left. Cart A moves to the left at nearly constant speed. Cart B moves to the left, gradually speeding up. Cart C moves to the left, gradually slowing down. Which cart or carts, if any, experience a net force to the left?

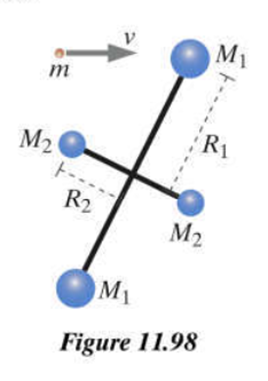

A device consisting of four heavy balls connected by low-mass rods is free to rotate about an axle, as shown in (Figure 11.98). It is initially not spinning. A small bullet traveling very fast buries itself in one of the balls.m=0.002kg, v=550m/s, M1=1.2kgM2=0.4kgm=0.002kg,R1=0.6mand R2=0.2m.The axle of the device is at the origin <0,0,0> and the bullet strikes at location <0.155,0.580,0>m .Just after the impact, what is the angular speed of the device? Note that this is an inelastic collision; the system鈥檚 temperature increases.

A ball is kicked on Earth from a location<9,0,-5> (on the ground) with initial velocity role="math" localid="1656668041027" <-10,13,-5>m/s . Neglecting air resistance: (a) What is the velocity of the ball 0.6 s after being kicked? (b) What is the location of the ball 0.6 s after being kicked? (c) What is the maximum height reached by the ball?

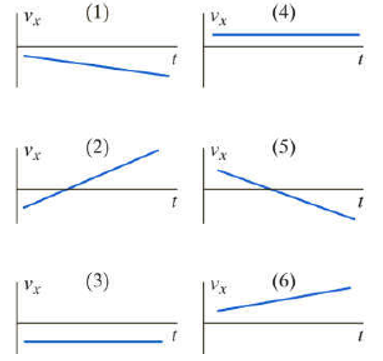

For each graph of vx vs. t numbered 1-6 in Figure, choose the letter (a-i) corresponding to the appropriate description of motion of a fan cart moving along a track. Not all descriptions will be used. Assume the usual coordinate system (+x to the right, +y up. +z out of the page).
