The moment of inertia of a uniform -density disk rotating about an axle through its center can be shown to be 12MR2. This result is obtained by using integral calculus to add up the contributions of all the atoms in the disk. The factor of 12reflects the fact that some of the atoms are near the center and some are far from the center; the factor of 12is an average of the square distance. A uniform-density disk whose mass is 16kgand radius is localid="1668665053754" 0.15mmakes one complete rotation every0.5s(a) what is the moment of inertia of this disk? (b) what is its rotational kinetic energy? (c)what is the magnitude of its rotational angular momentum?

Short Answer

Expert verified

The moment of inertia of the disk is-0.18kg·m2.

The rotational kinetic energy is-14.22J

The magnitude of rotational angular momentum is-2.27kg·m2/s

Step by step solution

01

Definition of Inertia and rotational angular momentum.

The moment of inertia is a quantitative measure of a body's rotational inertia—that is, the body's resistance to having its speed of rotation along an axis changed by the application of a torque (turning force).

The rotating analogue of linear momentum is angular momentum (also known as moment of momentum or rotational momentum). Because it is a conserved quantity—the total angular momentum of a closed system remains constant—it is a significant quantity in physics.

02

The given data is-

Mass of the uniform disk,M=16kg

Radius of the disk,R=0.15m

Period of rotation,T=0.5s

Angular speed of the disk, Ó¬=1rev/0.5s

=1rev/0.5s2Ï€rad1rev

=12.57rad/s

03

Find the moment of inertia and the rotational kinetic energy of the disc.

The moment of inertia of a uniform disc rotating around an axle via its centre is calculated as follows:

I=12MR2.....(1)

On substituting the known values in the equation (1), the moment of inertia of the disk can be calculated as

I=1216kg0.15m2

=0.18kg·m2.

The rotational kinetic energy of an object rotating with angular speed Ó¬is

Krot=12IÓ¬2.......(2)

Here,I→moment of inertia of the object.

On substituting the numerical values in the equation (1), the rotational kinetic energy of the disk can be calculated as

Krot=120.18kg·m212.57rad/s2=14.22J

04

Find the rotational angular momentum of the disc.

The rotational angular momentum of an object rotating with angular speed Ó¬in terms of its moment of inertia is

Lrot=IÓ¬.....(3)

Here,I→moment of inertia of the object

On substituting the given values in the equation (3) , the magnitude of the rotational angular momentum can be calculated as

Lrot=0.18kg·m212.57rad/s

=2.27kg·m2/s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: 400g of boiling water (temperature 1000 , specific heat 4.2J/K/gare poured into an aluminium pan whose mass is 600g and initial temperature (the specific heat of aluminium is . After a short time, what is the temperature of the water? Explain. What simplifying assumptions did you have to make?

A 0.7 kgblock of ice is sliding by you on a very slippery floor at 2.5m.s-1]As it goes by, you give it a kick perpendicular to its path. Your foot is in contact with the ice block for 0.003 s. The block eventually slides at an angle of 22 degreesfrom its original direction. The overhead view shown in Figure 2.54is approximately to scale. The arrow represents the average force your toe applies briefly to the block of ice. (a) Which of the possible paths shown in the diagram corresponds to the correct overhead view of the block’s path? (b) Which components of the block’s momentum are changed by the impulse applied by your foot? (Check all that apply. The diagram shows a top view, looking down on the xzplane.) (c) What is the unit vectorin the direction of the block’s momentum after the kick? (d) What is the x component of the block’s momentum after the kick? (e) Remember that p→=|p→|p^. What is the magnitude of the block’s momentum after the kick? (f) Use your answers to the preceding questions to find the zcomponent of the block’s momentum after the kick (drawing a diagram is helpful). (g) What was the magnitude of the average force you applied to the block?

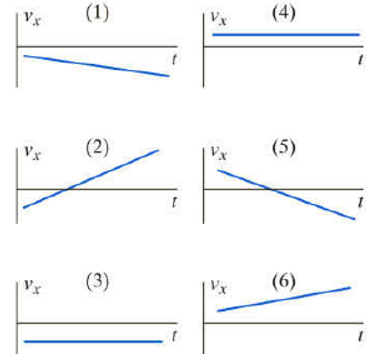

For each graph of vx vs. t numbered 1-6 in Figure, choose the letter (a-i) corresponding to the appropriate description of motion of a fan cart moving along a track. Not all descriptions will be used. Assume the usual coordinate system (+x to the right, +y up. +z out of the page).

(a) A cart moves to the left, gradually slowing down.

(b) A cart moves to the right, gradually speeding up.

(c) A cart moves to the left at a constant speed.

(d) A cart moves to the left, gradually slowing down, stops, and moves to the right, speeding up.

(e) A cart remains stationary and does not move.

(f) A cart moves to the right, gradually slowing down,

(g) A cart moves to the right. gradually slowing down, stops, and moves to the left, speeding up.

(h) A cart moves to the left, gradually speeding up.

(i) A cart moves to the right at a constant speed.

A paddle ball toy consists of a flat wooden paddle and asmall rubber ball that are attached to each other by an elastic band (Figure 2.61). You have a paddle ball toy for which the mass of the ball is 0.015 kg, the stiffness of the elastic band is 0.9 N/m, and the relaxed length of the elastic band is 0.30 m. You are holding the paddle so the ball hangs suspended under it, when your cat comes along and bats the ball around, setting it in motion. At a particular instant the momentum of the ball is⟨-0.02,-0.01,-0.02⟩kg⋅m/s , and the moving ball is at location ⟨-0.2,-0.61,0⟩m relative to an origin located at the point where the elastic band is attached to the paddle.

(a) Determine the position of the ball 0.1 s later, Δtusing of 0.1 s.

(b) Starting with the same initial position

(⟨-0.2,-0.61,0⟩m)and momentum(⟨-0.02,-0.01,-0.02⟩kg⋅m/s) , determine the position of the ball 0.1 s later, using a of 0.05 s. (c) If your answers are different, explain why.

A Ping-Pong ball is acted upon by the Earth, air resistance, and a strong wind. Here are the positions of the ball at several times.

Early time interval:

At\(t = 12.35\;{\rm{s}}\), the position was\(\left\langle {3.17.2.54, - 9.38} \right\rangle {\rm{m}}\).

At\(t = 12.37\;{\rm{s}}\), the position was\(\left\langle {3.25,2.50, - 9.40} \right\rangle \;{\rm{m}}\).

Late time interval:

At\(t = 14.35\;{\rm{s}}\), the position was\(\left\langle {11.25, - 1.50, - 11.40} \right\rangle \;{\rm{m}}\).

At\(t = 14.37\;{\rm{s}}\), the position was\(\left\langle {11.27, - 1.86, - 11.42} \right\rangle \;{\rm{m}}\).

(a) In the early time interval, from \(t = 12.35\;{\rm{s}}\) to \(t = 12.37\;{\rm{s}}\), what was the average momentum of the ball? The mass of the Ping-Pong ball is \(2.7\) grams \(\left( {2.7 \times {{10}^{ - 3}}\;{\rm{kg}}} \right)\). Express your result as a vector. (b) In the late time interval, from \(t = 14.35\;{\rm{s}}\) to \(t = 14.37\;{\rm{s}}\), what was the average momentum of the ball? Express your result as a vector. (c) In the time interval from \(t = 12.35\;{\rm{s}}\) (the start of the early time interval) to \(t = 14.35\;{\rm{s}}\) (the start of the late time interval), what was the average net force acting on the ball? Express your result as a vector.
