A Ping-Pong ball is acted upon by the Earth, air resistance, and a strong wind. Here are the positions of the ball at several times.

Early time interval:

At\(t = 12.35\;{\rm{s}}\), the position was\(\left\langle {3.17.2.54, - 9.38} \right\rangle {\rm{m}}\).

At\(t = 12.37\;{\rm{s}}\), the position was\(\left\langle {3.25,2.50, - 9.40} \right\rangle \;{\rm{m}}\).

Late time interval:

At\(t = 14.35\;{\rm{s}}\), the position was\(\left\langle {11.25, - 1.50, - 11.40} \right\rangle \;{\rm{m}}\).

At\(t = 14.37\;{\rm{s}}\), the position was\(\left\langle {11.27, - 1.86, - 11.42} \right\rangle \;{\rm{m}}\).

(a) In the early time interval, from \(t = 12.35\;{\rm{s}}\) to \(t = 12.37\;{\rm{s}}\), what was the average momentum of the ball? The mass of the Ping-Pong ball is \(2.7\) grams \(\left( {2.7 \times {{10}^{ - 3}}\;{\rm{kg}}} \right)\). Express your result as a vector. (b) In the late time interval, from \(t = 14.35\;{\rm{s}}\) to \(t = 14.37\;{\rm{s}}\), what was the average momentum of the ball? Express your result as a vector. (c) In the time interval from \(t = 12.35\;{\rm{s}}\) (the start of the early time interval) to \(t = 14.35\;{\rm{s}}\) (the start of the late time interval), what was the average net force acting on the ball? Express your result as a vector.

Short Answer

Expert verified

(a) The average momentum for early time is\(\left\langle {1.08 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle {\rm{ kg m/s}}\).

(b) The average momentum for late time is \(\left\langle {2.7 \times {{10}^{ - 3}}, - 4.86 \times {{10}^{ - 2}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}\).

(c) The net force is \(\left\langle {0.75 \times {{10}^{ - 3}},0,0.05 \times {{10}^{ - 3}}} \right\rangle {\rm{ N}}\).

Step by step solution

01

Definition and formulae for average velocity

  • The change in position or displacement\(\left( {\Delta x} \right)\)divided by the time intervals (t) in which the displacement happens is the average velocity.
  • Depending on the sign of the displacement, the average velocity can be positive or negative.
  • Meters per second (m/s or ms-1) is the SI measure for average velocity.
  • The average velocity is given by\({v_{avg}} = \frac{{\Delta r}}{{\Delta t}}\)., where\(\Delta r\)is change in position or displacement and\(\Delta t\)is time interval.
  • Momentum is given by\(p = mv\), where m is mass and v is velocity
02

Find the average momentum for early time

(a)

It is given that time interval from\({t_1} = 12.35\;{\rm{ s}}\)to\({t_2} = 12.37{\rm{ }}\;{\rm{s}}\).

Position values are\({r_1} = \left\langle {3.17,2.54, - 9.38} \right\rangle \;{\rm{m}}\)to\({r_2} = \left\langle {3.25,2.50, - 940} \right\rangle \;{\rm{m}}\).

Mass of the ping pong ball is\(2.7\;{\rm{g}}\)or\(2.7 \times {10^{ - 3}}\;\;{\rm{kg}}\).

\(\begin{aligned}{c}{v_{avg}} &= \frac{{\Delta r}}{{\Delta t}}\\ &= \frac{{{r_2} - r{}_1}}{{{t_2} - {t_1}}}\\ &= \frac{{\left\langle {3.25,2.50, - 940} \right\rangle \;{\rm{m}} - \left\langle {3.17,2.54, - 9.38} \right\rangle \;{\rm{m}}}}{{12.37\;{\rm{s}} - 12.35\;{\rm{s}}}}\\ &= \frac{{\left\langle {0.08, - 0.04, - 0.02} \right\rangle \;{\rm{m}}}}{{0.02\;{\rm{s}}}}\\ &= \left\langle {4, - 2, - 1} \right\rangle \;{\rm{m/s}}\end{aligned}\)

Substitute the values in\(p = m{a_{avg}}\).

\(\begin{aligned}{c}p &= m\left( {{v_{{\rm{avg }}}}} \right)\\ &= \left( {2.7 \times {{10}^{ - 3}}\;{\rm{kg}}} \right)(\left\langle {4, - 2, - 1} \right\rangle \;{\rm{m/s}})\\ &= \left\langle {1.08 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle {\rm{ kg m/s}}\end{aligned}\)

Thus, the average momentum in early time is \(\left\langle {1.08 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle {\rm{ kg m/s}}\).

03

Find the late time average velocity

(b)

The average velocity for late time interval is :

\(\begin{aligned}{c}{{\vec v}_{{\rm{avg}}}} &= \frac{{\Delta \vec r}}{{\Delta t}}\\ &= \frac{{\left\langle {11.27, - 1.86, - 11.42} \right\rangle - \left\langle {11.25, - 1.5, - 11.4} \right\rangle }}{{14.37 - 14.35}}\\ &= \;\;\left\langle {1, - 18, - 1} \right\rangle \;{\rm{m/s}}\end{aligned}\)

Substitute the value of \({\vec v_{{\rm{avg}}}}\)in \({\vec p_1} = m{\vec v_{{\rm{avg }}}}\)

\(\begin{aligned}{c}{{\vec p}_1} &= m{{\vec v}_{{\rm{avg }}}}\\ &= \left( {2.7 \times {{10}^{ - 3}}} \right)\left\langle {1, - 18, - 1} \right\rangle \\ &= \left\langle {2.7 \times {{10}^{ - 3}}, - 4.86 \times {{10}^{ - 2}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}\end{aligned}\)

Thus, the average momentum in late time is\(\left\langle {2.7 \times {{10}^{ - 3}}, - 4.86 \times {{10}^{ - 2}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}\).

04

Apply the concept of momentum principle and find average net force.

(c)

According to momentum principle a net force changes the momentum of an object.

So, Net force is given by\({F_{net}} = \frac{{\Delta p}}{{\Delta t}}\).

From above two parts,

\(\begin{aligned}{l}{p_1} &= \left\langle {1.2 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}\\{p_2} &= \left\langle {2.7 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.6 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}\end{aligned}\)

Time given is \({t_1} = 12.35\;{\rm{s to }}{t_2} = 14.35\;{\rm{s}}\).

Substitute the above values in the

\({\vec F_{net}} = \frac{{\Delta \vec p}}{{\Delta t}}\) \(\begin{aligned}{c}{{\vec F}_{net}} &= \frac{{\Delta \vec p}}{{\Delta t}}\\ &= \frac{{\left\langle {2.7 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.6 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}} - \left\langle {1.2 \times {{10}^{ - 2}}, - 5.4 \times {{10}^{ - 3}}, - 2.7 \times {{10}^{ - 3}}} \right\rangle \;{\rm{kg}} \cdot {\rm{m/s}}}}{{14.35 - 12.35}}\\ &= \frac{{\left\langle {1.5 \times {{10}^{ - 2}},0,0.1 \times {{10}^{ - 3}}} \right\rangle }}{2}\\ &= \left\langle {0.75 \times {{10}^{ - 3}},0,0.05 \times {{10}^{ - 3}}} \right\rangle {\rm{ N}}\end{aligned}\)

Thus, the net force in the time interval \({t_1} = 12.35\;{\rm{s }}\)to \({t_2} = 14.35\;{\rm{s}}\) is \(\left\langle {0.75 \times {{10}^{ - 3}},0,0.05 \times {{10}^{ - 3}}} \right\rangle {\rm{ N}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Here are questions about human diet. (a) A typical candy bar provides 280 calories (one 鈥渇ood鈥 or 鈥渓arge鈥 calorie is equal to ). How many candy bars would you have to eat to replace the chemical energy you expend doing 100 sit-ups? Explain your work, including any approximations or assumptions you make. (In a sit-up, you go from lying on your back to sitting up.) (b) How many days of a diet of 2000 large calories are equivalent to the gravitational energy difference for you between sea level and the top of Mount Everest, 8848 m above sea level? (However, the body is not anywhere near 100% efficient in converting chemical energy into change in altitude. Also note that this is in addition to your basal metabolism.)

In the circuit shown in Figure 19.75, the emf of the battery is 7.9V. Resistor R1 has a resistance of 23 , and resistor R2 has a resistance of 44 . A steady current flows through the circuit. (a) What is the absolute value of the potential difference across R1? (b) What is the conventional current through R2?

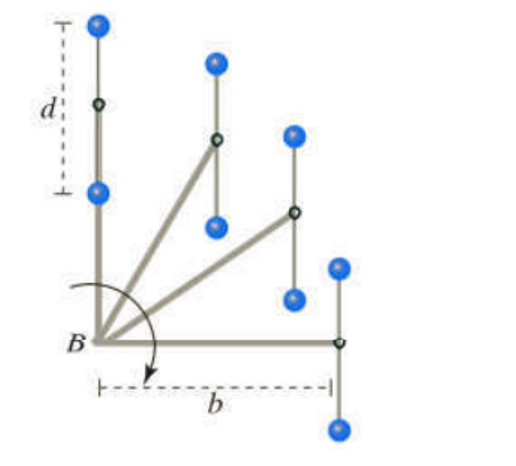

A barbell consist of two small balls, each with mass m=0.4kg,at the ends of a very low mass rod of length d=0.6m. It is mounted on the end of a low-mass rigid rod of lengthb=0.9m(figure). The apparatus is set in motion in such a way that although the rod rotates clockwise with angular speed localid="1668604224599" 1=15rad/s, the barbell maintains its vertical orientation. Calculate these vector quantities: (a) localid="1668604234930" Lrot, (b) localid="1668604258387" Ltrans,B,(c) localid="1668604276383" Ltot,B.
