A 0.7 kgblock of ice is sliding by you on a very slippery floor at 2.5m.s-1]As it goes by, you give it a kick perpendicular to its path. Your foot is in contact with the ice block for 0.003 s. The block eventually slides at an angle of 22 degreesfrom its original direction. The overhead view shown in Figure 2.54is approximately to scale. The arrow represents the average force your toe applies briefly to the block of ice. (a) Which of the possible paths shown in the diagram corresponds to the correct overhead view of the block’s path? (b) Which components of the block’s momentum are changed by the impulse applied by your foot? (Check all that apply. The diagram shows a top view, looking down on the xzplane.) (c) What is the unit vectorin the direction of the block’s momentum after the kick? (d) What is the x component of the block’s momentum after the kick? (e) Remember that p→=|p→|p^. What is the magnitude of the block’s momentum after the kick? (f) Use your answers to the preceding questions to find the zcomponent of the block’s momentum after the kick (drawing a diagram is helpful). (g) What was the magnitude of the average force you applied to the block?

Short Answer

Expert verified

a)PathBb)zcomponentc)(0.927,0,0.374)d)1.75 kg⋅m/se)1.887 kg⋅m/sf)0.707 kg⋅m/sg)629 N

Step by step solution

01

Identification of the given data

The given data can be listed below as,

  • The mass of the ice block is, 0.7 kg.
  • The velocity of the block is,2.5m/s .
  • The time for which the foot is in contact with the ice block is,0.003 s .
  • The angle at which the block slide is,22° .
02

Significance of the unit vector, momentum principle and impulse of the block

The unit vector is the division between the non-zero vector and the normal of the non-zero vector.

The momentum of a body is described as the product of the mass and the velocity of that body.

The impulse of a body is described as the product of the force exerted on a body and the time taken by the body.

The equation of the unit vector gives the unit vector of the block and the momentum principle gives x and z components of the block’s momentum along with the magnitude of the block and the impulse gives the average force applied to the block.

03

(a) Determination of the correct possible path for the block

The possible path B is the correct overhead view of the block’s path. The reason for choosing the path is that, when the block slides down the plane in a straight line, then, it will be helpful for calculating the motion of the block.

Thus, path B is the correct overhead view of the block’s path.

04

(b) Determination of the component of the block’s momentum that is changed by the applied impulse

As the block is sliding down in the xz -plane and there are no forces acting in the x and y direction, hence, only the z component of the block’s momentum is changed due to the effect of the applied impulse.

Thus, the z component of the block’s momentum is changed by the impulse applied by the foot.

05

(c) Determination of the unit vector in the direction of momentum of block after the kick

The free body diagram for finding the velocity in the direction is given as follows,

As there is no force acting in the x-direction, hence the velocity in the x-direction is 2.5 m/s and the velocity in the y-direction is 0 and the block is moving in the xz plane.

From the momentum principle, the equation of the momentum of the block at x-direction is expressed as-

px=mvx

Here, m is the mass of the block andvxthe velocity in the x-direction.

For localid="1658557927037" m=0.7kgandvx=2.5 m/s

px=0.7 kg×2.5m/s=1.75kg.m/s

From the above figure, the equation of the velocity of the block in the z direction is expressed as,

tan22°=vzvx

Here, vzis the velocity in z direction and vxis the velocity in x direction.

Fortan22°=0.404.

0.404=vz2.5m/svz=0.404×2.5m/s=1.01m/s

From the momentum principle, the equation of the momentum of the block in z-direction is expressed as,

pz=mvz

For m=0.7 kg,andvz=1.01 m/s,

pz=0.7 kg×1.01 m/s=0.707kg.m/s

Hence, the non-zero momentum vector of the block is(1.75,0,0.707) kg⋅m/s.

From the momentum law, the equation of the magnitude of the momentum of the block can be expressed as,

|p→|=px2+py2+pz2

Here,p→is the magnitude of the momentum of the block, pxis the momentum in the x direction, pyis the momentum in the y direction, and pzis the momentum in the z direction.

For px=1.75 kg⋅m/s,py=0andpz=0.707 kg⋅m/s,

p→=1.75kg⋅m/s2+0+0.707kg⋅m/s2=3.0625+0.499849kg⋅m/s=3.562kg⋅m/s=1.887kg.m/s

From the rule of the unit vector, the equation of the unit vector can be expressed as,

p^=p→|p→|

Here, p→is the non-zero momentum vector and p→the magnitude of the momentum of the block.

For localid="1658559034177" p⃗=(1.75,0,0.707) kg⋅m/sand |p→|=1.887kg⋅m/s,

p^=1.75,0,0.707kg.m/s1.887kg.m/s=(0.927,0,0.374)

Thus, the unit vector p^in the direction of the block’s momentum after the kick is (0.927,0,0.374).

06

(d) Determination of the x-component of the block’s momentum

As the data gathered from above part, the x component of the block’s momentum after the kick is1.75 kg⋅m/s.

Thus, the x component of the block’s momentum after the kick isrole="math" localid="1658559539898" 1.75 kg⋅m/s .

07

(e) Determination of the magnitude of the block’s momentum after the kick

As the data obtained from part (c), the magnitude of the block’s momentum after the kick is1.887 kg⋅m/s.

Thus, the magnitude of the block’s momentum after the kick isrole="math" localid="1658559635585" 1.887 kg⋅m/s .

08

(f) Determination of the z-component of the block’s momentum

As the data gathered from part (c), the z component of the block’s momentum after the kick is0.707kg⋅m/s.

Thus, the z component of the block’s momentum after the kick is0.707kg⋅m/s .

09

(g) Determination of the magnitude of the average force applied to the block

From the law of impulse, the equation for the magnitude of the average force applied on the block can be expressed as,

I=Fâ‹…t

Here, F is the magnitude of the average force and t is the time taken.

ForI=1.887kg⋅m/sandt=0.003 s

1.887kg⋅m/s=F×0.003 sF=1.887kg⋅m/s0.003 s=629kg.m/s2×1N1kg.m/s2=629N

Thus, the magnitude of the average force applied on the block is 629 N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

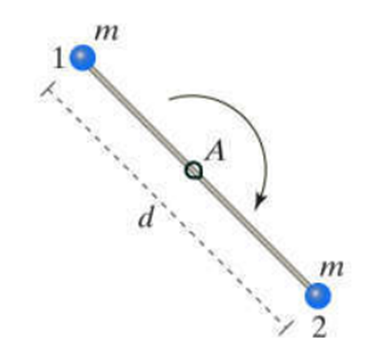

In figure a barbell spins around a pivot at its center at\(A\). The barbell consists of two small balls, each with mass \(500{\rm{ g}}\left( {0.5{\rm{ kg}}} \right)\), at the ends of a very low mass rod of length the \(d = 20{\rm{ cm}}\left( {0.2{\rm{ m}}} \right)\) the radius of rotation is\(0.1{\rm{ m}}\)). The barbell spins clockwise with angular speed \(80{\rm{ }}{{{\rm{rad}}} \mathord{\left/{\vphantom {{{\rm{rad}}} {\rm{s}}}} \right.s} {\rm{}}}\)

We can calculate the angular momentum and kinetic energy of this object in two different ways, by treating the object as two separate balls or as one barbell. Use the usual coordinate system, with\(x\)to the right,\(y\)toward the top of the page, and\(z\)out of the page, toward you.

I . Treat the object as two separate balls. Calculate the following quantities:

a.The speed of ball 1, (b)\({\overrightarrow L _{trans,1,A}}\)of ball 1, (c)\({\overrightarrow L _{trans,2,A}}\)of ball 2, (d)\({\overrightarrow L _{tot,A}}\)(e) the translational kinetic energy of ball 1, (f) the translational kinetic energy of ball 3, (g) the total kinetic energy of the barbell.

II .Treat the object as one barbell. Calculate the following quantities:

(h) The moment of inertia\(I\)of the barbell, (i)\(\overrightarrow \omega \)expressed as a vector, (j)\({\overrightarrow L _{rot}}\)of the barbell, (k)\({K_{rot}}\).

III. Compare the two approaches:

  1. Compare your result for\({\overrightarrow L _{tot,A}}\)in part\(I\)to your result for\({\overrightarrow L _{rot}}\)in part\(II\). Should these quantities be the same or different?
  2. Compare your result for\({K_{total}}\)in part\(I\)to your result for\({K_{rot}}\)in part\(II\). Should these quantities be the same, or different?

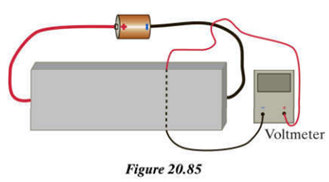

Question: the Hall effect can be used to determine the sign of the mobile charges in a particular conducting material. A bar of a new kind of conducting material is connected to a battery as shown in Figure 20.85. In this diagram, the x-axis runs to the right, the y-axis runs up, and the z-axis runs out of the page, toward you. A voltmeter is connected across the bar as shown, with the leads placed directly opposite each other along a vertical line. In order to answer the following question, you should draw a careful diagram of the situation, including all relevant charges, electric fields, magnetic fields, and velocities.

Initially, there is no magnitude filed in the region of the bar. (a) Inside the bar, what is the direction of the electric field E→due to the charges on the batteries and the surface of the wires and the bar? This is the electric field that drives the current in the bar. (b) If the mobile charges in the bar are positive in what direction do they move when the current runs? (c) If the mobile charges in the bar are negative, in what direction do they move when the current runs? (d) In this situation (zero magnetic fields), what is the sign of the reading on the voltmeter?

Next, large coils (not shown) are moved near the bar. And current runs through the coils, making a magnetic field in the -z direction (into the page). (e) If the mobile charges in the bar are negative, what is the direction of the magnetic force on the mobile charge? (f) If the mobile charges in the bar are negative, which of the following things will happen? (1) Positive charge will accumulate on the top of the bar. (2) The bar will not becomes polarized. (3) Negative charge will accumulate on the left end of the bar. (4) Negative charge will accumulate on the top of the bar. (g) If the mobile charges in the bar are positive, what is the direction of the magnetic force on the mobile charges? (h) If the mobile charges in the bar are positive, which of these things will happen? (1) positive charge will accumulate on the top of the bar. (2) The bar will not becomes polarized. (3) Positive charge will accumulate on the right end of the bar. (4) Negative charge will accumulate on the top of the bar.

You look at the voltmeter and find that the reading on the meter is -5×10-4volts. (i) What can you conclude from this observation? (Remember that a voltmeter gives a positive reading if the positive lead is attached to the higher potential location.) (1) There is not enough information to figure out the sign of the mobile charges. (2) The mobile charges are negative. (3) The mobile charges are positive.

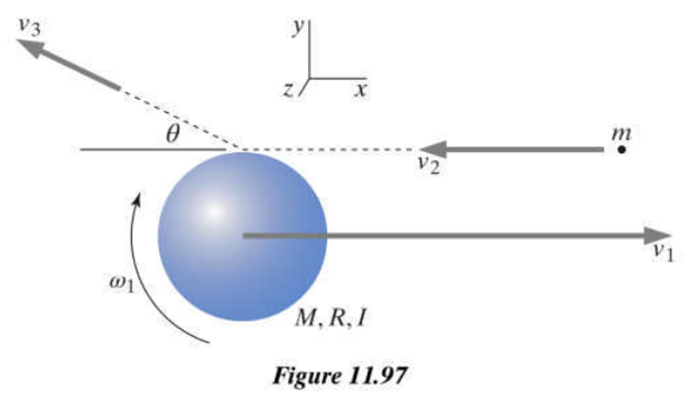

A spherical satellite of approximately uniform density with radius\(4.8m\)and mass\(205kg\)is originally moving with velocity\(\left\langle {2600,0,0} \right\rangle m/s,\)and is originally rotating with an angular speed\(2rad/s,\)in the direction shown in the diagram. A small piece of space junk of mass\(4.1kg\)is initially moving toward the satellite with velocity\(\left\langle { - 2200,0,0} \right\rangle m/s.\)The space junk hits the edge of the satellite at location C as shown in Figure 11.97, and moves off with a new velocity\(\left\langle { - 1300,480,0} \right\rangle m/s.\)Both before and after the collision, the rotation of the space junk is negligible.

A thin diverging lens of focal length 25cm is placed 18cm to the right of a point source of blue light on the axis of the lens. Where is the image of the source? Is it a real or a virtual image? If you placed a sheet of paper at the location of the image, what would you see on the paper?

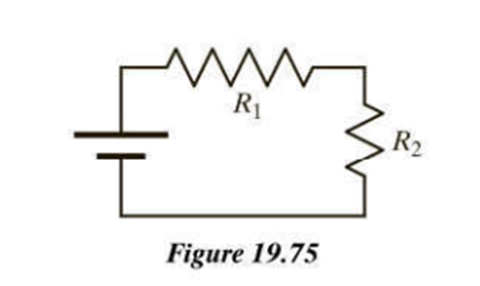

In the circuit shown in Figure 19.75, the emf of the battery is 7.9V. Resistor R1 has a resistance of 23Ω , and resistor R2 has a resistance of 44Ω . A steady current flows through the circuit. (a) What is the absolute value of the potential difference across R1? (b) What is the conventional current through R2?
