Chapter 19: Q56P-c (page 799)

In the circuit shown in Figure 19.77 the emf of the battery is 7.4V. Resistor R1has a resistance of 31惟, resistor R2 has a resistance of 47惟, and resistor R3has a resistance of 52惟 . A steady current flows through the circuit.

(a)What is the equivalent resistance of R1and R2 ? (b) What is the equivalent resistance of all three resistors? (c) What is the conventional current throughR3

Short Answer

Expert verified

0.10 A

Step by step solution

01

Given Data

R1=31惟R2=47惟R3=52惟emf=7.4V

02

Concept

The equivalent resistance is the addition of the resistances, when the batteries are connected in series.

03

Step 3(c): Determine the conventional current through  R3

Current in the circuit,

i=emfR=7.470.68=0.10AReferring to subpartbof the SID:875865 - 19 - 56P - b,takeRvalue

Hence, the conventional current through R3 is 0.10 A

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The deflection plates in an oscilloscope are 10cm by 2cm with a gap distance of 1mm. A 100V potential difference is suddenly applied to the initially uncharged plates through a 1000鈥�惟resistor in series with the deflection plates. How long does it take for the potential difference between the deflection plates to reach 95V?

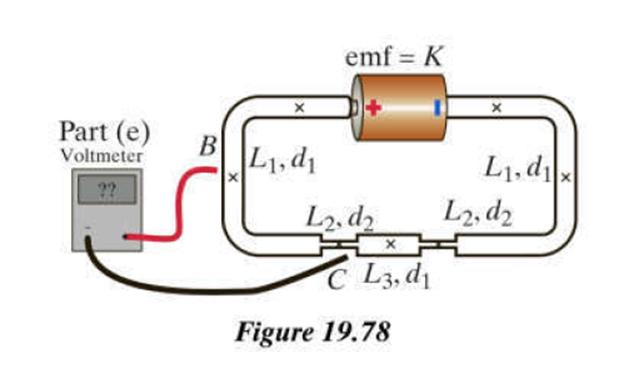

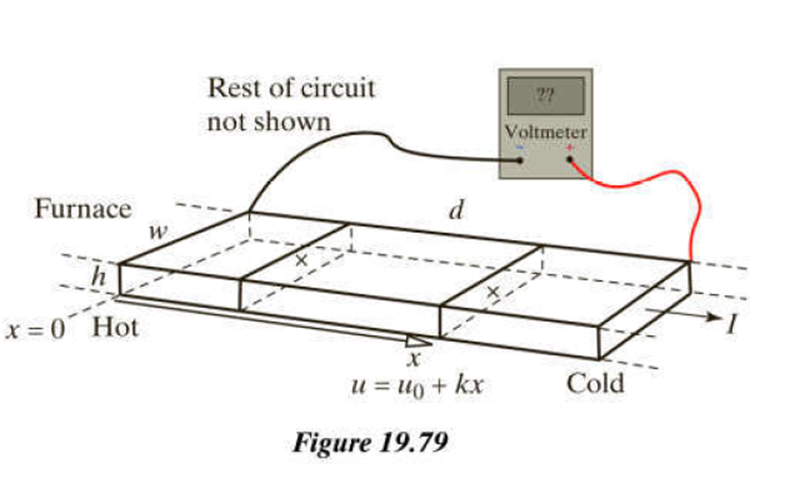

A long Iron slab of width w and height h emerges from a furnace, as shown in Figure 19.79. Because the end of the slab near the furnace is hot and the other end Is cold, the electron mobility increases significantly with the distance x. The electron mobility is u=u0+kxwhere u0is the mobility of the iron at the hot end of the slab. There are n iron atoms per cubic meter, and each atom contributes one electron to the sea of the mobile electron (we can neglect the small thermal expansion of the iron). A steady state conventional current runs through the slab from the hot end towards cold end, and an ammeter (not shown) measures the current to have a magnitude I in amperes. A voltmeter is connected to two locations a distance d apart, as shown. (a) Show the electric field inside the slab at two locations marked with 脳. Pay attention to the relative magnitudes of the two vectors that you draw. (b) Explain why the magnitude of the electric field is different at these two locations. (c) At a distance x from the left voltmeter connection, what is the magnitude of the electric field in terms x and the given quantities w,h,d,u0,k,l, and n ( and fundamental constants)? (d) What is the sign of potential difference displayed on the voltmeter? Explain briefly. (e) In terms of the given quantitiesw,h,d,u0,k,l, and n and ( and fundamental constants), what is the magnitude of the voltmeter reading? Check your work. (f) What is the resistance of this length of the iron slab?
