A battery with negligible internal resistance is connected to a resistor. The power produced in the battery and power dissipated in the resistor are both P1. Another resistor of same kind is added, so circuit consists of a battery and two resistors in series. (a) in terms of P1 how much power is dissipated in the first resistor ? . (a) in terms of P1 how much power is produced in the battery ? (c ) The circuit is rearranged so that the two resistors are in parallel rather than in series. In terms of P1, now how much power is produced in the battery?

Short Answer

Expert verified

The power dissipated across first resistor is P12.

Step by step solution

01

Identification of given data

The power produced in battery and dissipated in resistor is P1.

The number of resistors in series or parallel is n=2.

02

Conceptual Explanation

The power produced in the battery is the work done for the movement of charged particles across the terminals of the battery per unit time.

03

Determination of power dissipated in first resistor

The equivalent resistance of both resistors is given as:

Re=nR

Here, Ris the resistance of each resistor.

Substitute all the values in the above equation.

Re=2R

The power produced in the battery is given as:

P1=I2Re

Here, I is the current of battery.

Substitute all the values in the above equation.

P1=I22RP1=2I2R......1

The power produced across first resistor is given as:

P=I2R......2

Divide the equation (1) by equation (2).

P1P=2I2RI2RP=P12

Therefore, the power dissipate in first resistor is half of the power produced in battery.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

How does the final (equilibrium) charge on the capacitor plates depend on the size of the capacitor plates? On the spacing between the capacitor plates? On the presence of a plastic slab between the plates?

Question: in circuit 1 (Figure 19.72), an uncharged capacitor is connected in series with two batteries and one light bulb. Circuit 2 (Figure 19.72) contains two light bulbs identical to the bulb in the circuit; in all other respects, it is identical to circuit 1. In circuit 1, the light bulb stays lit for 25 s. The following questions refer to these circuits. You should draw diagrams representing the fields and charges in each circuit at the times mentioned, in order to answer the questions.

(a)One microsecond after connecting both circuits, which of the following are true? Chose all that apply: (1) the net electric field at location B in circuit 1 is larger than the net electric field at location B in circuit 2. (2) At location A in 1, electrons flow to the left. (3) At location A in circuit 1, the electric fields due to charges on the surface of the wires and batteries points to the right. (4) in circuit 1 the potential difference across the capacitor plates is equal to the emf of the batteries. (5) The current in circuit 1 is larger than the current in circuit 2.

(b)Two seconds after connecting both circuits, which of the following are true? Choose all that apply: (1) there is more charge on the plates of capacitor 1 than there is on the plates of capacitor 2. (2) there is negative charge on the right plate of the capacitor in circuit 1. (3) At location B in circuit 2 the net electric field points to the right. (4) At location B in circuit 2 the fringe field of the capacitor points to the right. (5) At location A in circuit 1 the fringe field of the capacitor points to the left.

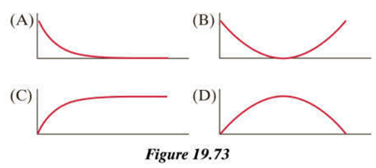

(c)Which of the graphs in Figure 19.73 represents the amount of charge on the positive plate of the capacitor in circuit 1 as a function of time?
