How does the final (equilibrium) charge on the capacitor plates depend on the size of the capacitor plates? On the spacing between the capacitor plates? On the presence of a plastic slab between the plates?

Short Answer

Expert verified

The final charge on the capacitor plates is directly proportional to the dielectric constant of the plastic slab and area of the plates and inversely proportional to the separation distance between the plates of the capacitor.

Step by step solution

01

Write the given data from the question.

The plastic slab is placed inside the capacitor plates.

02

Determine the formulas to find out, how the final charge depends on size of capacitor plates, spacing between plates and dielectric constant of slab.

The expression to calculate the capacitor when it is filled with the dielectric material is given as follows.

c=E0AAKd

Here, Ais the area of the plates, Kis the dielectric constant and d is the separation between the plates.

The expression to calculate the charge on the plates is given as follows.

Q=CV 鈥︹ (i)

Here,Vis the potential difference between the plates of capacitor.

03

how the final charge depends on size of capacitor plates, spacing between plates and dielectric constant of slab.

Calculate the charge on the plates of the capacitors.

Substitute E0AKdforC into equation (i).

Q=EAKdVQ=VEAKd

Let assume VE is constant.

QAKd

From the above equation, it is clear that the final charge on the capacitor plates is directly proportional to the dielectric constant of the plastic slab. The final charge increases with an increase in the area of capacitor plates and decreases with decreases in the area of plates. The final charge increases with an increase in dielectric constant and decreases with decreases in dielectric constant.

The final charge is inversely proportional to the separation distance between the capacitor plates. The value of the final charge increases with decreased separation distance and vice-versa.

Hence the final charge on the capacitor plates is directly proportional to the dielectric constant of the plastic slab and the area of the plates and inversely proportional to the separation distance between the plates of the capacitor.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Which of the following are ohmic resistors? For those that aren鈥檛, briefly state why they aren鈥檛. (a) Nichrome wire, (b) a thin filament light bulb, (c) a plastic rod, (d) salt water, (e) silicon (a semiconductor)

Suppose that instead of placing an insulating layer between the plates of the capacitor shown in Figure 19.57, you inserted a metal slab of the same thickness, just barely not touching the plates. In the same circuit, would this capacitor keep the current more nearly constant or less so than capacitor 2 in Question Q4? Explain why this is essentially equivalent to making a capacitor with a shorter distance between the plates.

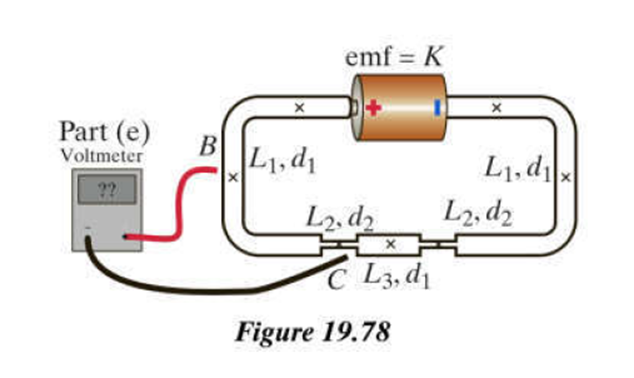

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked 脳 inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters (d1,d2)of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu). Explain your work and identify the principles you are using. (d) In the case that d2d1, what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case that d2d1, what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantities(K,L1,L2,L3,d1,d2,nandu).
