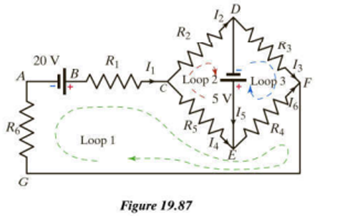

A circuit consists of two batteries (with negligible resistance), six ohmic resistors and connecting wires that have negligible resistance. The resistance R1is 10, R2 is 20, R3 is 30, R4is 12, R5is 15 and R6 is 20. Unknown currents I1,I2 ,I3 ,I4 , I5 and I6 have their directions marked on the circuit diagram in figure 19.87.

(a) Write down a set of equations that could be solved for the six unknown currents. Make sure you can explain how to you got these equations. (b) When a correct set of equations is solved the currents are as follows (to the nearest miiampeares) I1=0.4394A, I2=0.3312A, I3=0.0065A, I4=0.1082A, I5=0.3247Aand I6=0.4329A. Check your equations by substituting in these numbers. (c) Suppose that you connect the negative lead of a voltmeter to location C. What does the voltmeter read, including both magnitude and sign? (d) What does the power output of the 5 V battery? (e) Resistor is made of a very thin metal wire that is 3 mm long, with a diameter of 0.1 mm. What is the electric field inside the metal resistor.

Short Answer

Expert verified

The set of equations for unknown currents are I1=I2+I4,I2=I3+I5,I1=I3+I6 , 20-10I1-15I4-12I6-20I1=0,5+15I4-20I2=0 and -5-30I3+12I6=0.

Step by step solution

01

Identification of given data

The potential of the battery for loop 1 is V1=20V

The potential of the battery for loop 2 and loop 3 is V2=5V

The resistance of the first resistor isR1=10

The resistance of the second resistor is R2=20

The resistance of the third resistor is R3=30

The resistance of the fourth resistor is R4=12

The resistance of the fifth resistor is R5=15

The resistance of the sixth resistor isR6=20

02

Conceptual Explanation

The conservation of charge at every node and conservation of potentials in every loop is used to solve the above problem. The conservation of charge says that the incoming currents at a node are equal to the outgoing current from that node. The conservation of potential says that the net potential in any loop is always zero.

03

Determination of equations to find the unknown currents

Apply the Kirchoff鈥檚 current law at C.

I1=I2+I4

Apply the Kirchoff鈥檚 current law at D.

I2=I3+I5

Apply the Kirchoff鈥檚 current law at F.

I1=I3+I6

Apply the Kirchoff鈥檚 voltage law in the loop 1.

V1-I1R1-I4R5-I6R4-I1R6=020-10I1-15I4-12I6-20I1=0

Apply the Kirchoff鈥檚 voltage law in the loop 2.

V2+I4R5-I2R2=05+15I4-20I2=0

Apply the Kirchoff鈥檚 voltage law in the loop 3.

-V2-I3R3+I6R4=0-5-30I3+12I6=0

Therefore, the set of equations for unknown currents are I1=I2+I4,I2=I3+I5 ,I1=I3+I6 , 20-10I1-15I4-12I6-20I1=0, 5+15I4-20I2=0and -5-30I3+12I6=0.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

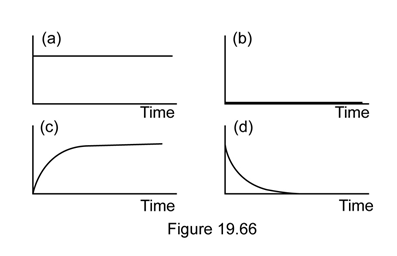

The capacitor in Figure 19.67 is initially uncharged, then the circuit is connected. Which graph in Figure 19.66 best describes the absolute value of the charge on the left plate as a function of time?

Question: in circuit 1 (Figure 19.72), an uncharged capacitor is connected in series with two batteries and one light bulb. Circuit 2 (Figure 19.72) contains two light bulbs identical to the bulb in the circuit; in all other respects, it is identical to circuit 1. In circuit 1, the light bulb stays lit for 25 s. The following questions refer to these circuits. You should draw diagrams representing the fields and charges in each circuit at the times mentioned, in order to answer the questions.

(a)One microsecond after connecting both circuits, which of the following are true? Chose all that apply: (1) the net electric field at location B in circuit 1 is larger than the net electric field at location B in circuit 2. (2) At location A in 1, electrons flow to the left. (3) At location A in circuit 1, the electric fields due to charges on the surface of the wires and batteries points to the right. (4) in circuit 1 the potential difference across the capacitor plates is equal to the emf of the batteries. (5) The current in circuit 1 is larger than the current in circuit 2.

(b)Two seconds after connecting both circuits, which of the following are true? Choose all that apply: (1) there is more charge on the plates of capacitor 1 than there is on the plates of capacitor 2. (2) there is negative charge on the right plate of the capacitor in circuit 1. (3) At location B in circuit 2 the net electric field points to the right. (4) At location B in circuit 2 the fringe field of the capacitor points to the right. (5) At location A in circuit 1 the fringe field of the capacitor points to the left.

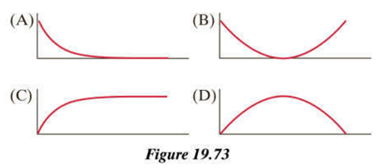

(c)Which of the graphs in Figure 19.73 represents the amount of charge on the positive plate of the capacitor in circuit 1 as a function of time?

(d)Which of the graphs in Figure 19.73 represents the current in circuit 1 as a function of time?

A certain has rectangular plates56cmby 24 cm and the gap width is 20.0 mm. What is its capacitance? We see that typical capacitances are very small when measured in farads. A role="math" localid="1662139654139" 1Fcapacitor is quite extraordinary. Apparently it has a very large area A(all wrapped up in a small package), and a vary small gap s.

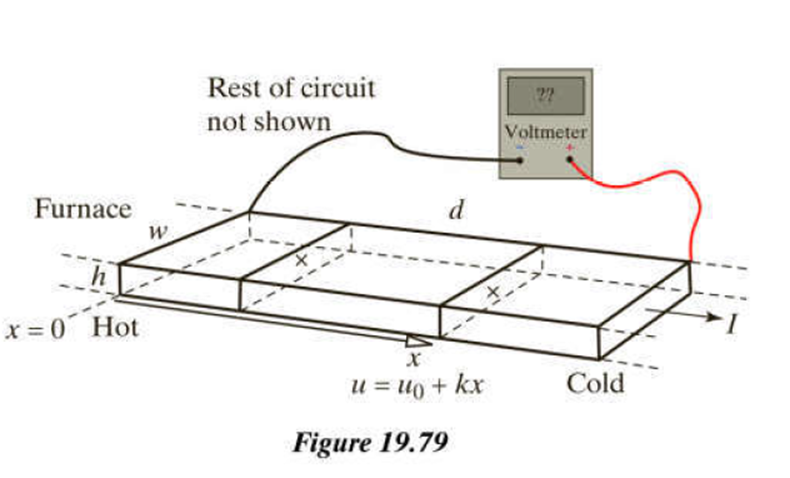

A long Iron slab of width w and height h emerges from a furnace, as shown in Figure 19.79. Because the end of the slab near the furnace is hot and the other end Is cold, the electron mobility increases significantly with the distance x. The electron mobility isu=u0+kxwhere u0is the mobility of the iron at the hot end of the slab. There are n iron atoms per cubic meter, and each atom contributes one electron to the sea of the mobile electron (we can neglect the small thermal expansion of the iron). A steady state conventional current runs through the slab from the hot end towards cold end, and an ammeter (not shown) measures the current to have a magnitude I in amperes. A voltmeter is connected to two locations a distance d apart, as shown. (a) Show the electric field inside the slab at two locations marked with. Pay attention to the relative magnitudes of the two vectors that you draw. (b) Explain why the magnitude of the electric field is different at these two locations. (c) At a distance x from the left voltmeter connection, what is the magnitude of the electric field in terms x and the given quantities w, h, d, u0, k, l, and n ( and fundamental constants)? (d) What is the sign of potential difference displayed on the voltmeter? Explain briefly. (e) In terms of the given quantitiesw, h, d, u0, k, l, and n and ( and fundamental constants), what is the magnitude of the voltmeter reading? Check your work. (f) What is the resistance of this length of the iron slab?
