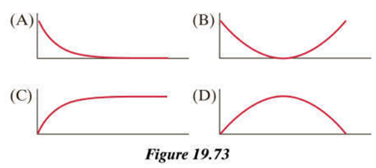

The capacitor in Figure 19.65 is initially charged, then the circuit is connected. Which graph in Figure 19.66 best describes the current through the bulb as a function of time?

Short Answer

Expert verified

Figure (d) best depicts the current in the circuit.

Step by step solution

01

Given data

A fully charged capacitor is connected to a bulb.

02

Discharging of a capacitor

When a fully charged capacitor is connected in a circuit, electron flows from the negative to the positive plate, thus reducing charge in both plates.

03

Determination of the graph of the current in the circuit

As charges flow from the negative plate to the positive plate through the circuit, the net charge in the plates reduces. The fringe field due to the capacitor in the circuit also reduces thus reducing the current in the circuit. This continues until the capacitor is completely discharged and the current in the circuit is zero. This is best depicted by figure (d).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

For the circuit shown in figure 19.86, which consists of batteries with known emf and ohmic resistors with known resistance, write the correct number of energy-conservation and current node rule equations that would be adequate to solve for the unknown currents, but do not solve the equations. Label nodes and currents on the diagram, and identify each equation (energy or current, and for which loop or node).

The two circuits shown in Figure 19.59 have different capacitors but the same batteries and thin-filament bulbs. The capacitors in circuit 1and circuit 2areidentical exceptthat the capacitor in circuit 2was constructed with its plates closer together. Both capacitors have air between their plates. The capacitors are initially uncharged. In each circuit the batteries are connected for a short time compared to the time required to reach equilibrium, and then they are disconnected. In which circuit (1or 2) does the capacitor now have more charge? Explain your reasoning in detail.

When glowing, a thin-filament bulb has a resistance of about 30Ωand a thick filament bulb has a resistance of about 10Ω. If they are in parallel, what is their equivalent resistance? How much current goes through two 1.5Vflashlight batteries in series if a thin-filament bulb and a thick filament bulb are connected in parallel to batteries?

Work and energy with a capacitor: A capacitor with capacitance Chas an amount of charge q on one of its plates, in which case the potential difference across the plates is Δ³Õ=q/C (definition of capacitance). The work done to add a small amount of charge dq when charge the capacitor is dqΔ³Õ=dqq/C. Show by integration that the amount of work required to charge up the capacitor from no charge to final charge Q is 12(Q2/C). Since this is the amount of work required to charge the capacitor, it is also the amount of energy stored in the capacitor. Substituting Q=CΔ³Õ, we can also express the energy as 12CΔ³Õ2.

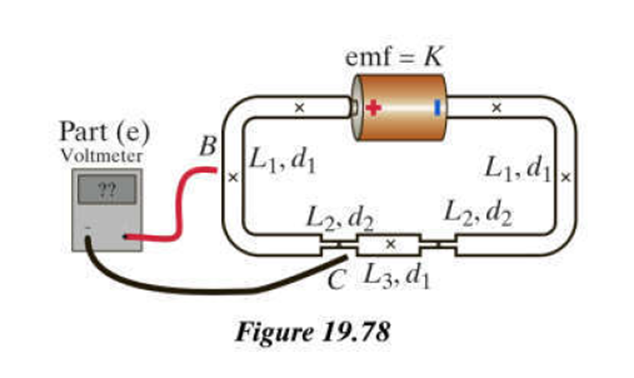

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked × inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters (d1,d2)of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu). Explain your work and identify the principles you are using. (d) In the case that d2≪d1, what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case that d2≪d1, what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu).
