The deflection plates in an oscilloscope are 10cm by 2cm with a gap distance of 1mm. A 100V potential difference is suddenly applied to the initially uncharged plates through a 1000鈥�惟resistor in series with the deflection plates. How long does it take for the potential difference between the deflection plates to reach 95V?

Short Answer

Expert verified

t=5.3脳10-8s

Step by step solution

01

Given data

Plate area A=10鈥�cm脳2鈥�cm

Gap s=1鈥�mm

Potential difference V=95鈥�V

Max. Potential difference Vmax=100鈥�V

Resistance R=1000鈥�惟

02

Formula used

V=Vmax(1-exp-tRC)

Where,Vmaxis max. Potential difference reaches

t Is time require

R is resistance andC is the capacitance

03

Calculation for time required

C=蔚0As=8.85脳10-12脳2脳10-31脳10-3=1.77脳10-11鈥�F

V=Vmax1-exp-tRC95=1001-exp-t1000脳1.77脳10-110.95=1-exp-t1.77脳10-8exp-t1.77脳10-8=0.05

t=5.3脳10-8s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Using thick connecting wires that are very good conductors, a Nichrome wire (鈥渨ire 1鈥�) of length L1 and cross-sectional area A1 is connected in series with a battery and an ammeter (this is circuit 1). The reading on the ammeter is I1. Now the Nichrome wire is removed and replaced with a different wire (鈥渨ire 2鈥�), which is 2.5 times as long and has 5.5 times the cross-sectional area of the original wire (this is circuit 2). In the following question, a subscript 1 refers to circuit 1, and a subscript 2 refers to circuit 2. It will be helpful to write out your solutions to the following questions algebraically before doing numerical calculations. (Hint: Think about what is the same in these two circuits.)(a) What is the value of I2/ I1, the ratio of the conventional currents in the two circuits? (b) What is the value of R2/ R1, the ratio of the resistances of the wires? (c) What is the value of E2/ E1, the ratio of the electric fields inside the wires in the steady states?

A circuit consists of two batteries (with negligible internal resistance), five ohmic resistors (Figure 19.88). The connecting wires that have negligible resistance. The letters A through are shown to make it possible to refer to specific parts of the circuit.

(a) Write all the equations necessary to solve for the unknown currents I1, I2, I3, I4 and I5, whose directions are indicated on the circuit diagram. Do not solve the equations but do explain very clearly what your equations are based on and to what they refer.

Assume that a computer program has solved your equations in terms of known battery voltages and known resistances so that the currents I1, I2,I3 ,I4and I5are are known. (b) In terms of known quantities calculate VD-VAand check that your sign makes sense. (c) In terms of known quantities, calculate the power produced in battery number 2.

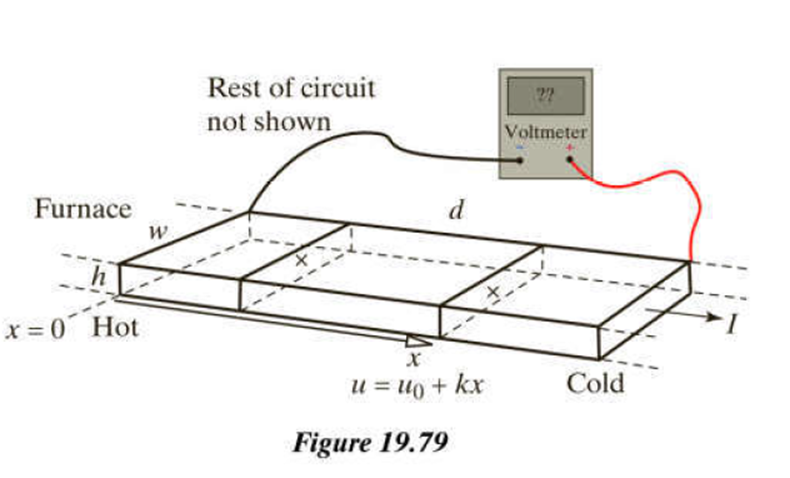

A long Iron slab of width w and height h emerges from a furnace, as shown in Figure 19.79. Because the end of the slab near the furnace is hot and the other end Is cold, the electron mobility increases significantly with the distance x. The electron mobility is u=u0+kxwhere u0is the mobility of the iron at the hot end of the slab. There are n iron atoms per cubic meter, and each atom contributes one electron to the sea of the mobile electron (we can neglect the small thermal expansion of the iron). A steady state conventional current runs through the slab from the hot end towards cold end, and an ammeter (not shown) measures the current to have a magnitude I in amperes. A voltmeter is connected to two locations a distance d apart, as shown. (a) Show the electric field inside the slab at two locations marked with 脳. Pay attention to the relative magnitudes of the two vectors that you draw. (b) Explain why the magnitude of the electric field is different at these two locations. (c) At a distance x from the left voltmeter connection, what is the magnitude of the electric field in terms x and the given quantities w,h,d,u0,k,l, and n ( and fundamental constants)? (d) What is the sign of potential difference displayed on the voltmeter? Explain briefly. (e) In terms of the given quantitiesw,h,d,u0,k,l, and n and ( and fundamental constants), what is the magnitude of the voltmeter reading? Check your work. (f) What is the resistance of this length of the iron slab?
