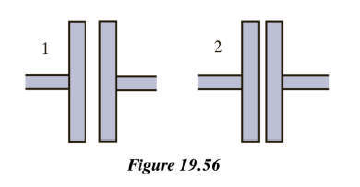

Consider two capacitors whose only difference is that the plates of capacitor number 2 are closer together than those of capacitor number 1 (Figure 19.56). Neither, capacitors has an insulating layer between the plates. They are placed in two different circuits having similar batteries and bulbs in series with the capacitor.

Show that in the first fraction of a second, the current stays nearly constant (decreases less rapidly) in the circuit with capacitor number 2. Explain your reasoning in detail.

Hint: Show charges on metal plates, and consider the electric fields they produce in the nearby wires. Remember that the fringe field near a plate outside a circular capacitor is approximately-

(QAo)(s2R)

More extensive analysis shows that this trend holds true for the entire charging process: the capacitor with the narrower gap ends up with more charge on the plates.

Short Answer

Expert verified

It is shown that if the separation between the plates of a capacitor is less, the current will vary less rapidly.

Step by step solution

01

Given Data

The plates of capacitor 2 are closer to each other as compared to capacitor1.

02

Capacitance

The ability of a capacitor to store energy in the form of an electric field is known as capacitance. It is the ratio of charge accumulated on the plate to the potential difference developed between the plates.

03

Calculation

Consider a parallel plate capacitor, having an area of cross-section 鈥楢鈥. The separation between the plates is s, and there is no layer of insulating material between them. Thus, the material between the plates is free space. When connected to a circuit, the electric field, developed between the plates, is given as-

E=o=QAo

Here, Qis the charge gathered on the plates,localid="1662168754855" ois the permittivity of free space and localid="1662168738233" is the surface charge density.

The potential differenceVdeveloped between the plates is given as-

localid="1662170000699" V=E.s=QAos

In the above equation, the potential difference produced between the plates is directly proportional to the separation between the plates. The larger the separation, the larger will be the potential difference, and the higher will be the rate of accumulation of charge. Hence, the current will decrease more rapidly.

Therefore, if the separation between the plates of the parallel plate capacitor is less, the current will decrease less rapidly.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

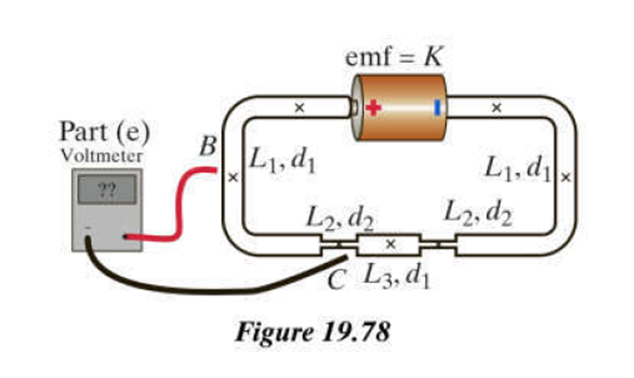

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked 脳 inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters(d1,d2) of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities(K,L1,L2,L3,d1,d2,nandu) . Explain your work and identify the principles you are using. (d) In the case thatd2d1 , what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case thatrole="math" localid="1663035964741" d2d1 , what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantitiesrole="math" localid="1663036061574" (K,L1,L2,L3,d1,d2,nandu) .

In copper at room temperature, the mobility of mobile electrons is about 4.510-3(m/s)V/m,and there are about81028mobile electrons perm3Calculate the conductivityand include the correct units. In actual practice, it is usually easier to measure the conductivityand deduce the mobilityufrom this measurement.

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked 脳 inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters (d1,d2)of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu). Explain your work and identify the principles you are using. (d) In the case that d2d1, what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case that d2d1, what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantities(K,L1,L2,L3,d1,d2,nandu).

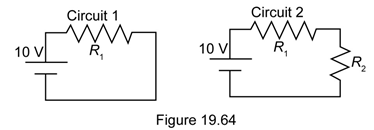

State whether the following statement is true or false, and briefly explain why: 鈥淚n the two circuits shown in Figure 19.64, the battery output power is greater in circuit 2 because there is an additional resistor dissipating power.鈥
