State whether the following statement is true or false, and briefly explain why: 鈥淚n the two circuits shown in Figure 19.64, the battery output power is greater in circuit 2 because there is an additional resistor dissipating power.鈥

Short Answer

Expert verified

The statement is false since output power is inversely proportional to the total resistance of the circuit.

Step by step solution

01

Given data

A 10Vbattery is connected first to a resistance R1 (circuit 1) and then to a series connection of R1 and R2 (circuit 2).

The following statement is provided:

In the two circuits shown in Figure 19.64, the battery output power is greater in circuit 2 because there is an additional resistor R2 dissipating power.

02

Dissipated power

The power dissipated in a circuit of net EMF and total resistance is

P=E2R .....(i)

03

Determination of whether the provided statement is true is false

From equation (1), the total output power in circuit 1 is:

P1=100V2R1

The equivalent resistance of circuit 2 is R1+R2. Thus, from equation (1), the total output power in circuit 2 is:

P2=100V2R1+R2

Evidently, P2>P1.

Thus, the statement is false.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: in circuit 1 (Figure 19.72), an uncharged capacitor is connected in series with two batteries and one light bulb. Circuit 2 (Figure 19.72) contains two light bulbs identical to the bulb in the circuit; in all other respects, it is identical to circuit 1. In circuit 1, the light bulb stays lit for 25 s. The following questions refer to these circuits. You should draw diagrams representing the fields and charges in each circuit at the times mentioned, in order to answer the questions.

(a)One microsecond after connecting both circuits, which of the following are true? Chose all that apply: (1) the net electric field at location B in circuit 1 is larger than the net electric field at location B in circuit 2. (2) At location A in 1, electrons flow to the left. (3) At location A in circuit 1, the electric fields due to charges on the surface of the wires and batteries points to the right. (4) in circuit 1 the potential difference across the capacitor plates is equal to the emf of the batteries. (5) The current in circuit 1 is larger than the current in circuit 2.

(b)Two seconds after connecting both circuits, which of the following are true? Choose all that apply: (1) there is more charge on the plates of capacitor 1 than there is on the plates of capacitor 2. (2) there is negative charge on the right plate of the capacitor in circuit 1. (3) At location B in circuit 2 the net electric field points to the right. (4) At location B in circuit 2 the fringe field of the capacitor points to the right. (5) At location A in circuit 1 the fringe field of the capacitor points to the left.

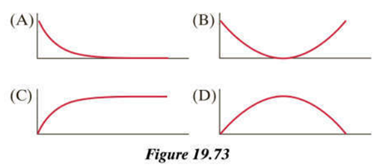

(c)Which of the graphs in Figure 19.73 represents the amount of charge on the positive plate of the capacitor in circuit 1 as a function of time?
