In Fig. 35-45, a broad beam of monochromatic light is directed perpendicularly through two glass plates that are held together at one end to create a wedge of air between them. An observer intercepting light reflected from the wedge of air, which acts as a thin film, sees 4001 dark fringes along the length of the wedge. When the air between the plates is evacuated, only 4000 dark fringes are seen. Calculate to six significant figures the index of refraction of air from these data.

Short Answer

Expert verified

The refractive index of air is1.00025.

Step by step solution

01

Definition of monochromatic light

Monochromatic lights are single-wavelength light, where mono refers to single, and chrome means color. Visible light of a narrow band of wavelengths is classified as monochromatic lights. It features a wavelength within a short wavelength range.

02

Determine the refractive index of air of monochromatic light

The expression for the minima condition for normal incidence in the case of thin films is,

2L=mλn

Here, L is thickness, m is order, λ is wavelength, and n is refractive index of medium.

In case of 4001 dark fringe with index of right in air nair, the condition of minima

2L=4001λnair

In the case of 4000 dark fringe with index c vacuum 1.0 the condition for minima:

2L=4000λ1.0

For both conditions the left side of the equation is 2L.

Thus the equation right hand side and solve for nair.

4001λnair=4000λ1.0nair=1.00025

Hence, the refractive index of air is 1.00025.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A disabled tanker leaks kerosene n=1.20into the Persian Gulf, creating a large slick on top of the watern=1.30). (a) If you are looking straight down from an airplane, while the Sun is overhead, at a region of the slick where its thickness is460nm, for which wavelength(s) of visible light is the reflection brightest because of constructive interference? (b) If you are scuba diving directly under this same region of the slick, for which wavelength(s) of visible light is the transmitted intensity strongest?

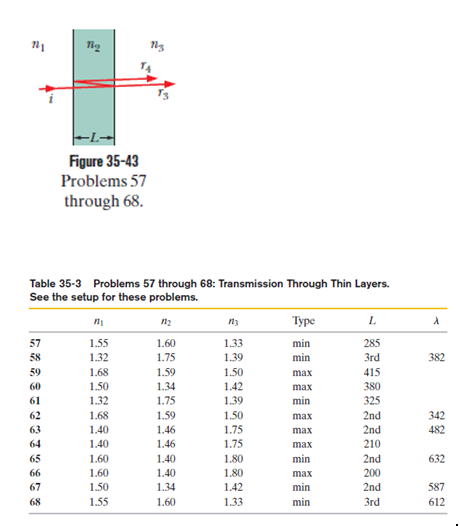

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as rayr3(the light does not reflect inside material 2) andr4(the light reflects twice inside material 2). The waves ofr3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Whereλis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

The rhinestones in costume jewellery are glass with index of refraction 1.50. To make them more reflective, they are often coated with a layer of silicon monoxide of index of refraction 2.00.What is the minimum coating thickness needed to ensure that light of wavelength 560nm and of perpendicular incidence will be reflected from the two surfaces of the coating with fully constructive interference?

A Newton’s rings apparatus is to be used to determine the radius of curvature of a lens . The radii of the nth and (n+20th)bright rings are found to be 0.162cm and 0.368cm, respectively, in light of wavelength 546nm. Calculate the radius of curvature of the lower surface of the lens.

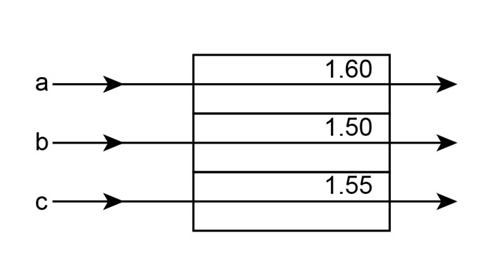

In Fig. 35-23, three pulses of light— a, b, and c—of the same wavelength are sent through layers of plastic having the given indexes of refraction and along the paths indicated. Rank the pulses according to their travel time through the plastic layers, greatest first.
