In Fig. 35-45, a broad beam of light of wavelength 683 nm is sent directly downward through the top plate of a pair of glass plates. The plates are 120 mm long, touch at the left end, and are separated by 48.0μm at the right end. The air between the plates acts as a thin film. How many bright fringes will be seen by an observer looking down through the top plate?

Short Answer

Expert verified

The number of bright fringes observed is 140.

Step by step solution

01

Given data

Wavelength λ=683nm

Separated by LR=48.0μm

02

Definition and concept of interference of light

The phenomenon of several light waves interfering with one another under specific conditions causes the combined amplitudes of the waves to either grow or decrease is known as interference of light.

The thickness of the LR at the right end for bright fringes is given by following expression.

LR=mλ2n2

Here, m is the number of fringes, λis the wavelength, and n2 is the index of refraction of the medium between the wedges.

The index of refraction n2 is equal to 1 since air is the medium between the glass plates.

Rearrange the above equation LR=mλ2n2 to m.

m=2LRn2λ

03

Determine the number of bright fringes

Substitute 683 nm for λ, 1 for n2, and 48.0μm for LRin the above equation to solve for m.

m=248.0μm1m106μm1683nm1m109nm=248×10-6m683×10-9m=96×10-6m683×10-9m=140

Thus, the number of bright fringes observed is 140.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 35-57 shows an optical fiber in which a central platic core of index of refractionn1=1.58-is surrounded by a plastic sheath of index of refractionn2=1.53. Light can travel along different paths within the central core, leading to different travel times through the fiber, resulting in information loss. Consider light that travels directly along the central axis of the fiber and light that is repeatedly reflected at the critical angle along the core-sheath interface, reflecting from side to side as it travels down the central core. If the fiber length is 300 m, what is the difference in the travel times along these two routes?

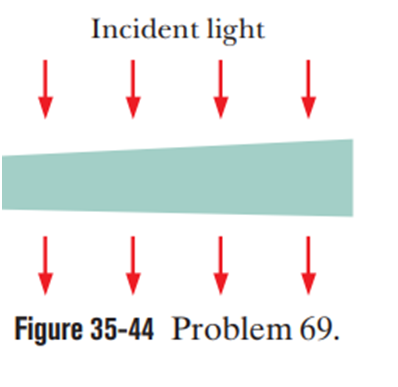

In Fig. 35-44, a broad beam of light of wavelength 630 nm is incident at 90° on a thin, wedge-shaped film with index of refraction 1.50. Transmission gives 10 bright and 9 dark fringes along the film’s length. What is the left-to-right change in film thickness?

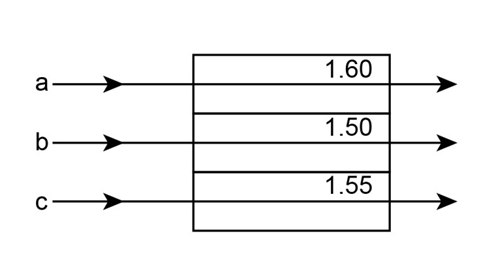

In Fig. 35-23, three pulses of light— a, b, and c—of the same wavelength are sent through layers of plastic having the given indexes of refraction and along the paths indicated. Rank the pulses according to their travel time through the plastic layers, greatest first.

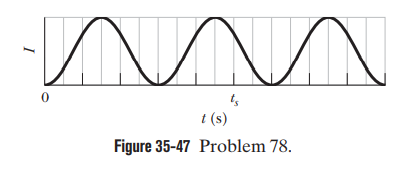

A thin film of liquid is held in a horizontal circular ring, with air on both sides of the film. A beam of light at wavelength 550 nm is directed perpendicularly onto the film, and the intensity I of its reflection is monitored. Figure 35-47 gives intensity I as a function of time the horizontal scale is set by ts=20.0s. The intensity changes because of evaporation from the two sides of the film. Assume that the film is flat and has parallel sides, a radius of 1.80cm, and an index of refraction of 1.40. Also assume that the film’s volume decreases at a constant rate. Find that rate.
