A 600nm-thick soap film n=1.40in air is illuminated with white light in a direction perpendicular to the film. For how many different wavelengths in the 300to 700nm range is there (a) fully constructive interference and (b) fully destructive interference in the reflected light?

Short Answer

Expert verified

(a) The number of wavelengths lying in visible range for constructive interference by thick soap film is 4 .

(b) The number of wavelengths lying in visible range for destructive interference by thick soap film is 5 .

Step by step solution

01

Identification of given data

The index of refraction for thick soap film is n=1.40

The range of wavelength is λmin-λmax=300nm-700nm.

The thickness of soap film is t=600nm.

02

Understanding the concept

The index of refraction is the ratio of the speed of light in medium to speed of light in vacuum.

03

(a) Determination of order of fringe for minimum and maximum wavelength of visible range for constructive interference

The minimum order of fringe for destructive interference of thick soap film in the visible range is given as:

mmin+12=2ntλmin

Substitute all the values in the equation.

mmin+12=21.40600nm300nmmmin=5.6-0.5mmin=5

The maximum order of fringe for destructive interference of thick soap film in visible range is given as:

mmax+12=2ntλmax

Substitute all the values in equation.

mmax+12=21.40600nm700nmmmax=2.4-0.5mmax=2

The second, third, fourth and fifth wavelengths lie in visible range for constructive interference by thick soap film.

Therefore, the number of wavelengths lying in visible range for constructive interference by thick soap film is 4 .

04

(b) Determination of order of fringe for minimum and maximum wavelength of visible range for destructive interference

The minimum order of fringe for destructive interference of thick soap film in the visible range is given as:

mmin=2ntλmin

Substitute all the values in the equation.

mmin=21.40600nm300nm=5.6≈6

The maximum order of fringe for destructive interference of thick soap film in visible range is given as:

mmax=2ntλmax

Substitute all the values in equation.

dmmax=21.40600nm700nm=2.4≈2

The second, third, fourth, fifth and sixth wavelengths lie in visible range for destructive interference by thick soap film.

Therefore, the number of wavelengths lying in visible range for destructive interference by thick soap film is 5.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter


Does the spacing between fringes in a two-slit interference pattern increase, decrease, or stay the same if

(a) the slit separation is increased,

(b) the color of the light is switched from red to blue, and

(c) the whole apparatus is submerged in cooking sherry?

(d) If the slits are illuminated with white light, then at any side maximum, does the blue component or the red component peak closer to the central maximum?

The lens in a Newton’s rings experiment (see problem 75) has diameter 20 mm and radius of curvature R=5.0m. For A=589nm in air, how many bright rings are produced with the setup (a) in air and
(b) immersed in water (n=1.33)?

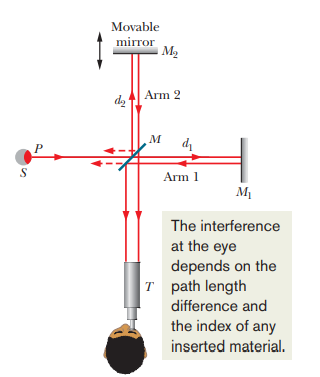

If mirror M2in a Michelson interferometer (fig 35-21) is moved through 0.233mm, a shift of 792 bright fringes occurs. What is the wavelength of the light producing the fringe pattern?

Two waves of light in air, of wavelength λ=600.0nm, are initially in phase. They then both travel through a layer of plastic as shown in Fig. 35-36, with L1=4.00μm, L2=3.50μm, n1=1.40, n2=1.60and. (a) What multiple of λgives their phase difference after they both have emerged from the layers? (b) If the waves later arrive at some common point with the same amplitude, is their interference fully constructive, fully destructive, intermediate but closer to fully constructive,or intermediate but closer to fully destructive?

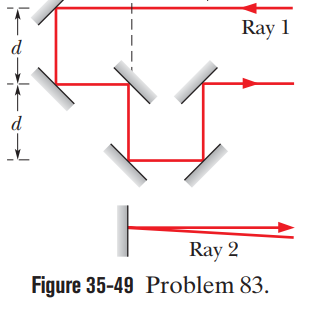

Two light rays, initially in phase and with a wavelength of 500 nm, go through different paths by reflecting from the various mirrors shown in Fig. 35-49. (Such a reflection does not itself produce a phase shift.) (a) What least value of distance will put the rays exactly out of phase when they emerge from the region? (Ignore the slight tilt of the path for ray 2.) (b) Repeat the question assuming that the entire apparatus is immersed in a protein solution with an index of refraction of 1.38.
