Chapter 35: Q35P (page 1076)

We wish to coat flat glass (n = 1.50) with a transparent material (n = 1.25) so that reflection of light at wavelength 600 nm is eliminated by interference. What minimum thickness can the coating have to do this?

Short Answer

Expert verified

The minimum thickness of coating is1200nm

Step by step solution

01

Identification of given data

The index of refraction for coat flat glass is nc=1.50

The index of refraction for transparent material is role="math" localid="1663133484448" nc=1.25

The wavelength of light is位=600nm

02

Understanding the concept

The index of refraction is the ratio of the speed of light in medium to speed of light in vacuum.

03

Determination of minimum thickness of coating

The minimum thickness of coating is given as:

t=位2nc-nm

Substitute all the values in equation.

t=600nm21.50-1.25t=1200nm

Therefore, the minimum thickness of coating is1200nm

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A double-slit arrangement produces interference fringes for sodium light (位=589nm)that have an angular separation of 3.50脳10-3rad. For what wavelength would the angular separation be 10% greater?

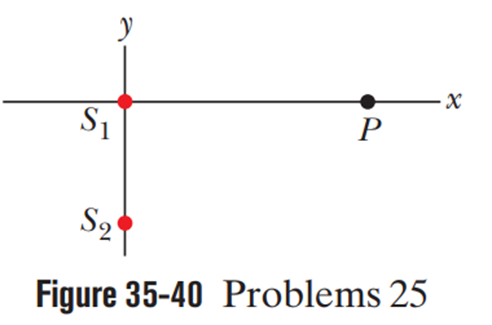

In Fig. 35-40, two isotropic point sources of light (S1 and S2) are separated by distance 2.70渭malong a y axis and emit in phase at wavelength 900 nm and at the same amplitude. A light detector is located at point P at coordinate xPon the x axis. What is the greatest value of xP at which the detected light is minimum due to destructive interference?

Three electromagnetic waves travel through a certain point P along an x-axis. They are polarized parallel to a y-axis, with the following variations in their amplitudes. Find their resultant at P.

E1=(10.00渭痴/m)sin[2脳1014t]E2=(5.00渭痴/m)sin[2脳1014t+45掳]E3=(5.00渭痴/m)sin[2脳1014t-45掳]

Figure 35-24a gives intensity lversus position x on the viewing screen for the central portion of a two-slit interference pattern. The other parts of the figure give phasor diagrams for the electric field components of the waves arriving at the screen from the two slits (as in Fig. 35-13a).Which numbered points on the screen bestcorrespond to which phasor diagram?

(a) Figure 1

(b) Figure 2

(c) Figure 3

(d) Figure 4

A thin film with index of refraction n=1.40 is placed in one arm of a Michelson interferometer, perpendicular to the optical path. If this causes a shift of 7.0 bright fringes of the pattern produced by light of wavelength 589nm, what is the film thickness?
