Microscope is an instrument that can be used to observe small objects, even cells. The image of an object is magnified through at least one lens in the microscope. This lens bends light toward the eye and makes an object appear larger than it actually is.

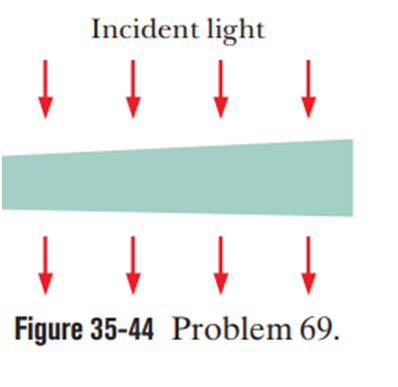

The vertical change between the centre of one dark band and the next can be calculated by using the following relation

$\mathrm{Δ}y=\frac{\mathrm{λ}}{2}$

Here, $\mathrm{λ}$ is the wavelength of the light

The angle between the slides can be calculated by using the following relation

$\tan \mathrm{θ}=\frac{\mathrm{Δ}y}{\mathrm{Δ}x}$

Here, $\mathrm{Δ}x$is the horizontal separation between the dark fringes.

The vertical change between the centre of one dark band and the next dark band is,

$\mathrm{Δ}y=\frac{\mathrm{λ}}{2}$

Substitute 500 mm for $\mathrm{λ}$.

$\begin{array}{rcl}\mathrm{Δ}y& =& \frac{\left(500\text{mm}\right)\left(\frac{1×{10}^{-9}\text{m}}{1\text{mm}}\right)}{2}\\ & =& \frac{500×{10}^{-9}\text{m}}{2}\\ & =& 2.50×{10}^{-7}\text{m}\end{array}$

The angel between the slides is,

$\mathrm{θ}=\frac{\mathrm{Δ}y}{\mathrm{Δ}x}$

Substitute $2.50×{10}^{-7}\text{m}$for $\mathrm{Δ}y$and $1.2\mathrm{mm}$for $\mathrm{Δ}\text{x}$.

$\begin{array}{rcl}\mathrm{θ}& =& \frac{2.50×{10}^{-7}\text{m}}{\left(1.2\text{mm}\right)\left(\frac{1.0×{10}^{-3}\text{m}}{1.0\text{mm}}\right)}\\ & =& \left(2.08×{10}^{-4}\text{rad}\right)\left(\frac{57.2957795°}{1\text{rad}}\right)\\ & =& 0.012°\end{array}$

Therefore, the angel between the slides is $0.012°$.
