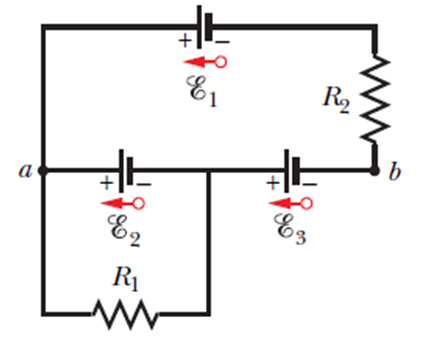

In Figure,R1=100‰ө,R2=50‰ө, and the ideal batteries have emfsε1=6.0 V,ε2=5.0 V, and.ε3=4.0 VFind

(a) The current in resistor 1,

(b) The current in resistor 2, and

(c) The potential difference between points aand b.

Short Answer

Expert verified
  1. The current in resistor 1 is, 0.050‼î.
  2. The current in resistor 2 is,0.060‼î .
  3. The potential difference between point a and b is,9.0 V .

Step by step solution

01

Given

  1. The resistance .R1=100‰ө
  2. The resistanceR2=50‰ө.
  3. The voltageε1=6.0 V.
  4. The voltageε2=5.0 V.
  5. The voltageε3=4.0 V .
02

Understanding the concept

We use the concept of Kirchhoff’s voltage law. We write the equation of Kirchhoff’s voltage for the loops to find the currents and the voltage.

V1+V2+V3=0

03

(a) Calculate the current in resistor 1

The current in resistor 1:

We consider the lower loop to find the current through R1,

ε2−i1R1=0ε2=i1R1i1=ε2R1

Substitute all the value in the above equation.

i1=5.0 V100‰ө=0.050‼î

Hence the current in resistor 1 is, 0.050‼î.

04

(b) Calculate the current in resistor 2

The current in resistor 2:

Now, we consider the upper loop to find the current through R2,we get

ε1−ε2−ε3−i2R2=0ε1−ε2−ε3=i2R2

Substitute all the value in the above equation.

i2(50‰ө)=6.0 V−5.0 V−4.0 Vi2=−3.0 V50‰ө=−0.06‼î

The negative sign indicates that the current direction is downward. We take|i2|=0.060‼î.

Hence the current in resistor 2 is, 0.060‼î.

05

(c) Calculate the potential difference between points a and b.

The potential difference between the points a and b:

The potential difference between the points a and b is the sum of the potential between them, we can write

Va−Vb=ε2+ε3

Substitute all the value in the above equation.

Va−Vb=5.0 V+4.0 V=9.0 V

Hence the potential difference between point a and b is, 9.0 V.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The starting motor of a car is turning too slowly, and the mechanic has to decide whether to replace the motor, the cable, or the battery. The car’s manual says that the12Vbattery should have no more than0.020Ω internal resistance; the motor should have no more than 0.200Ωresistance, and the cable no more than 0.040Ωresistance. The mechanic turns on the motor and measures 11.4Vacross the battery, a 3.0Vcross the cable, and a current of 50A. Which part is defective?

In Fig. 27-69,R1=20.0Ω,R2=10.0Ω , and the ideal battery has emf ε=120V. What is the current at point a if we close (a) only switchS1, (b) only switches S1andS2, and (c) all three switches?

Question: An initially uncharged capacitor C is fully charged by a device of constant emf connected in series with a resistor. R (a) Show that the final energy stored in the capacitor is half the energy supplied by the emf εdevice. (b) By direct integration of i2Rover the charging time, show that the thermal energy dissipated by the resistor is also half the energy supplied by the emf device.

A temperature-stable resistor is made by connecting a resistor made of silicon in series with one made of iron. If the required total resistance is 1000Ωin a wide temperature range aroundrole="math" localid="1662722083861" 20°C, what should be the resistance of the (a) silicon resistor and (b) iron resistor? (See Table 26-1)

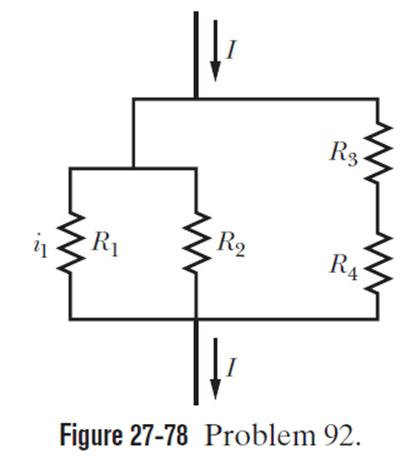

Figure 27-78 shows a portion of a circuit through which there is a current I=6.00A. The resistances are R1.=R2=2.00R3=2.OOR4=4.00ΩWhat is the currenti1through resistor 1?
