Question: An initially uncharged capacitor C is fully charged by a device of constant emf connected in series with a resistor. R (a) Show that the final energy stored in the capacitor is half the energy supplied by the emf εdevice. (b) By direct integration of i2Rover the charging time, show that the thermal energy dissipated by the resistor is also half the energy supplied by the emf device.

Short Answer

Expert verified
  • a)The final energy stored in the capacitor is half the energy supplied by the emfεdevice.
  • b)The thermal energy by the resistor is also half the energy supplied by the emf device.

Step by step solution

01

The given data

An initially uncharged capacitor C is fully charged by a device of constant emf connected in series with a resistor R .

02

Understanding the concept of energy

As the capacitor in an RC circuit is being charged, some energy supplied by the emf device remains within the plates of the capacitor C and also goes to the resistor as thermal energy.

Formulae:

The charge within the capacitor as a function of time,

q=q01-e-t/RC (i)

The charge stored within the plates of a capacitor,

q=CV (ii)

The rate at which the emf device suppliers energy,

Pζ=iε (iii)

The current flowing in a device,

i=dqdt (iv)

The energy stored within the capacitor plates,
Uc=12Cε2 (v)

03

a) Calculation of the final energy stored in the capacitor

Now, substituting equation (ii) value in equation (i) for the charge as a function of time for a capacitor, the equation is given as:

q=Cε1-e-t/RC

Now, the charging current within the device can be given using equation (iv) and the above value as follows:

i=ddtCε1-e-t/RC=εRe-t/RC(a)

Thus, the energy supplied to the emf device is given using the above value (a) in equation (iii) and integrating the power value with time as follows:
U=∫0∞Pzdt

Substitute the values in the above expression, and we get,

U=∫0∞εεRe-t/RCdt=ε2R∫0∞εe-t/RCdt=ε2Re-t/RC-1/RC0∞=ε2R-RC0-1=Cε2

Substitute the values in the above expression, and we get,

U=2Uc

Hence, from the above-integrated value, it can be seen that the energy supplied by the emf device is equal to twice the capacitor store energy.

04

b) Calculation of the thermal energy by the resistor

Now, simply integrating the given rate valueand i2Rusing equation (a), the rate at which the thermal energy is transferred to the resistor is given as follows:

Substitute the values in the above expression, and we get,

UR=∫0∞εεRe-t/RCRdt=ε2R∫0∞e-2t/RCdt=ε2Re-2t/RC-2/RC0∞=ε2RRC2(0-'1)=Cε22

Substitute the values in the above expression, and we get,

UR=Uc2

Hence, in the above integration, it can be seen that the thermal energy by the resistor is also half the energy supplied by the emf device.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

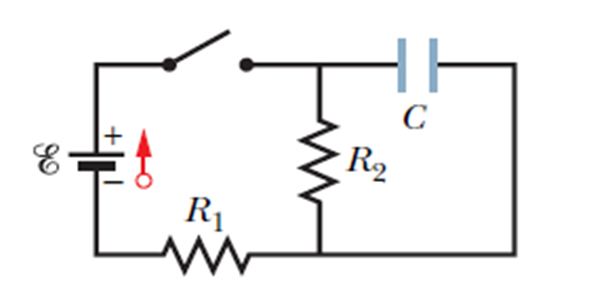

In Fig 27-66, the ideal battery has emf30 V, the resistances areR1=20 kΩ,andR2=10 kΩ, and the capacitor is uncharged. When the switch is closed at time t= 0, what is the current in

(a) Resistance 1 and

(b) Resistance 2?

(c) A long time later, what is the current in resistance 2?

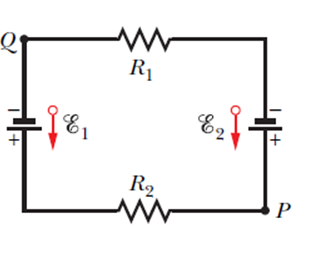

In Figure, the ideal batteries have emfs ε1=150 V andε2=50 V and the resistances areR1=3.0 Ω andR2=2.0 Ω. If the potential at Pis 100 V, what is it at Q?

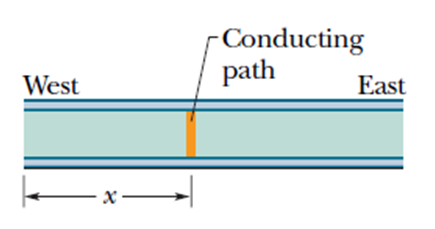

A 10-km-long underground cable extends east to west and consists of two parallel wires, each of which has resistance 13 Ω/km. An electrical short develops at distance xfrom the west end when a conducting path of resistance Rconnects the wires (Figure). The resistance of the wires and the short is then 100 Ω when measured from the east end and 200 Ω when measured from the west end. What are
