In Fig. 27-69,R1=20.0,R2=10.0 , and the ideal battery has emf =120V. What is the current at point a if we close (a) only switchS1, (b) only switches S1andS2, and (c) all three switches?

Short Answer

Expert verified

a) The current at point a if we close only switchS1is 3.0A.

b) The current at point a if we close only switches S1and S2is 3.75A.

c) The current at point a if we close all the three switches is3.94A .

Step by step solution

01

The given data

a) The value of the resistances given are: R1=20.0 R2=10.0

b) Emf of the ideal battery,=120V

02

Understanding the concept of current flow

For a closed circuit, the current flowing is the same through the loop. No, in the given case individual switches play their role by contributing the additional resistances upon being close to the equivalent resistance. Thus, using the equivalence equation can find the resistance that can be further used to calculate the required current.

Formula:

The voltage equation using Ohm鈥檚 law, V=IR (i)

The equivalent resistance for a series combination,Req=inRn (ii)

The equivalent resistance for a parallel combination, Req=in1Rn (iii)

03

Calculation of the current at point a if only switch S1 is closed

(a)

If we close only switchS1, the resistor 1 only two resistors in series within the closed loop comes into play. Thus, using the given data in equation (i), the current value can be given as:

i=2R1=120V220.0=3.0A

Hence, the current value is3.0A.

04

Calculation of the current at point a if only switch S1 and S2 is closed

(b)

If we close only switchesS1 and S2, then the equivalent resistance of the formed circuit can be given using equations (ii) and (iii) as follows:

Req=R1+R1R1+R22R1+R2=20.0+20.020.0+10.0220.0+10.0=32.0

Now, the current at point a if we close only switchesS1 and S2is given using equation (i) and above equivalent resistance as follows:

i=120.0V32.0=3.75A

Hence, the value of the current is3.75A .

05

Calculation of the current value if all the switches are closed

(c)

If all the three switches are closed, the equivalent resistance of the given resistors can be calculated using equations (ii) and (iii) as follows:

Req=R1+R1R'/R1+R'

where,

R'=R2+R1R1+R22R1+R2

=10.0+20.020.0+10.0220.0+10.0=22.0

Thus, the equivalent resistance can be given as follows:

Req==20.0+20.0+22.020.0+22.0=30.5

Now, the current for the condition can be calculate using equation (i) as follows:

i=120V30.5=3.94A

Hence, the value of the current is3.94A.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The resistances in Figures (a) and (b) are all 6.0 , and the batteries are ideal 12Vbatteries. (a) When switch S in Figure (a) is closed, what is the change in the electric potential V1 across resistor 1, or does V1 remain the same?

(a) When switch S in Figure (b) is closed, what is the change in V1across resistor 1, or does V1 remain the same?

A temperature-stable resistor is made by connecting a resistor made of silicon in series with one made of iron. If the required total resistance is 1000in a wide temperature range aroundrole="math" localid="1662722083861" 20C, what should be the resistance of the (a) silicon resistor and (b) iron resistor? (See Table 26-1)

The figure shows a section of a circuit. The resistances are R1=2.0 , R2=4.0and R3=6.0, and the indicated current is I=6.0A . The electric potential difference between points A and B that connect the section to the rest of the circuit is VAVB=78V . (a) Is the device represented by 鈥淏ox鈥 absorbing or providing energy to the circuit, and (b) At what rate?

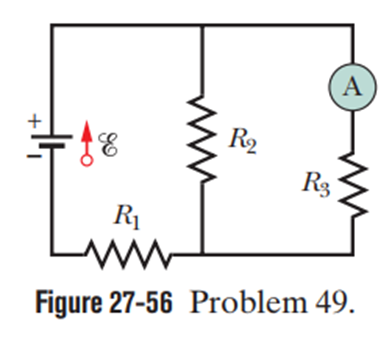

(a) In Fig. 27-56, what current does the ammeter read if=5.0V(ideal battery), R1=2.0鈥坝, R2=4.0鈥坝, and R3=6.0鈥坝? (b) The ammeter and battery are now interchanged. Show that the ammeter reading is unchanged.

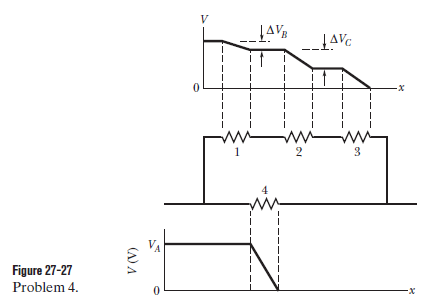

Figure shows a circuit of four resistors that are connected to a larger circuit. The graph below the circuit shows the electric potential V(x) as a function of position xalong the lower branch of the circuit, through resistor 4; the potential VAis 12.0 V. The graph above the circuit shows the electric potential V(x) versus position x along the upper branch of the circuit, through resistors 1, 2, and 3; the potential differences are螖痴B2.00 V and螖痴C5.00 V. Resistor 3 has a resistance of 200 鈩. What is the resistance of (a) Resistor 1 and (b) Resistor 2?
