The figure shows a section of a circuit. The resistances are R1=2.0 , R2=4.0and R3=6.0, and the indicated current is I=6.0A . The electric potential difference between points A and B that connect the section to the rest of the circuit is VAVB=78V . (a) Is the device represented by 鈥淏ox鈥 absorbing or providing energy to the circuit, and (b) At what rate?

Short Answer

Expert verified

(a) The device represented by 鈥淏ox鈥 is providing energy.

(b) The rate of the energy is 360W.

Step by step solution

01

Given data:

The resistor, R1=2.0

The resistor, R2=4.0

The resistor, R3=6.0

The current, I=6.0A

The potential difference, VAVB=78V

02

Understanding the concept:

Using the given data, you can calculate the total power dissipated by the resistors. By comparing the total power dissipated by the resistors and the external power supplied, you can find whether the device is absorbing or providing energy.

Formula:

The Ohm鈥檚 voltage,

V=IR

The power is,

P=I2R

At any junction,I=0

03

(a) Find out if the device represented by “Box” absorbing or providing energy to the circuit:

The voltage acrossR3can be calculated as,

V3=IR3=6.0A6.0=36V

The voltage acrossR1can be calculated as,

V1=(VAVB)V3=78V36V=42V

So, the current through R1 will be,

I1=V1R1=42V2=21A

Now, we apply the junction rule at point A to find the current flowing throughR2

I2=I1I=(216)A=15A

Now, the total power dissipated by the resistors,

Ptotal=P1+P2+P3

Since the power is,

P=I2R

Therefore, the total power will becomes,

Ptotal=I12R1+I22R2+I32R3

Substitute known values in the above equation.

Ptotal=((21)22)+((15)24)+((6)26)=882+900+216=1998W=1.998kW

But, the power supplied externally to this section will be,

PA=I1(VAVB)=21A78V=1638A=1.638kW

On comparingPAandPtotal, as Ptotal>PA you can say that the box must is providing energy.

04

(b) Calculate absorbing or providing energy to the circuit:

The rate at which the Box is supplying the energy will be,

PBox=PtotalPA=19981638=360W

Hence, the rate of the energy is .360W

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

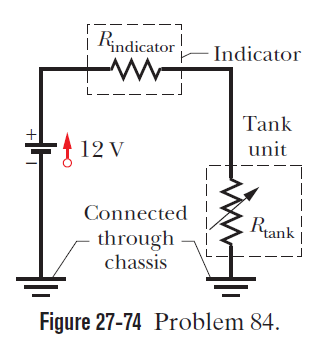

Question: An automobile gasoline gauge is shown schematically in Fig. 27-74. The indicator (on the dashboard) has a resistance of10. The tank unit is a float connected to a variable resistor whose resistance varies linearly with the volume of gasoline. The resistance is140when the tank is empty and20when the tank is full. Find the current in the circuit when the tank is (a) empty, (b) half-full, and (c) full. Treat the battery as ideal.

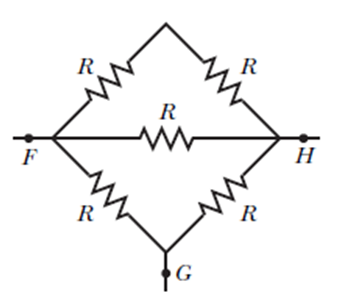

Figure shows five 5.00 resistors. Find the equivalent resistance between points

(a) F and H and

(b) F and G . (Hint: For each pair of points, imagine that a battery is connected across the pair.)

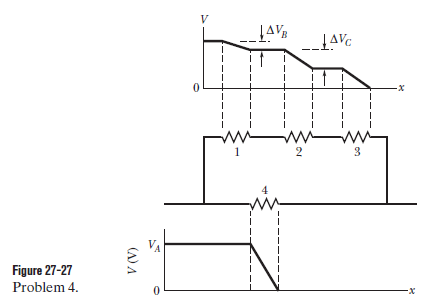

Figure shows a circuit of four resistors that are connected to a larger circuit. The graph below the circuit shows the electric potential V(x) as a function of position xalong the lower branch of the circuit, through resistor 4; the potential VAis 12.0 V. The graph above the circuit shows the electric potential V(x) versus position x along the upper branch of the circuit, through resistors 1, 2, and 3; the potential differences are螖痴B2.00 V and螖痴C5.00 V. Resistor 3 has a resistance of 200 鈩. What is the resistance of (a) Resistor 1 and (b) Resistor 2?

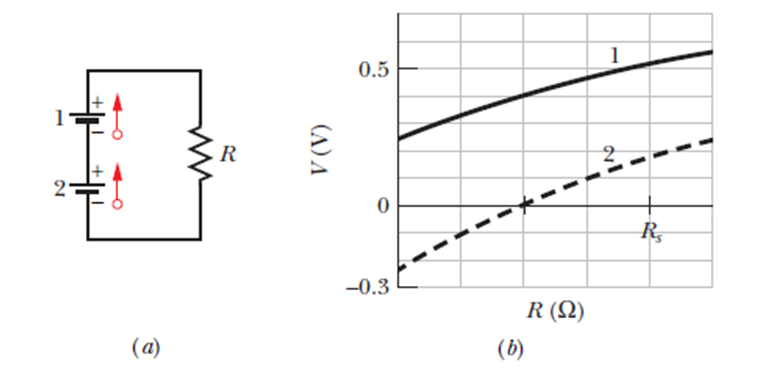

(a), both batteries have emf1.20 V and the external resistance Ris a variable resistor. Figure
