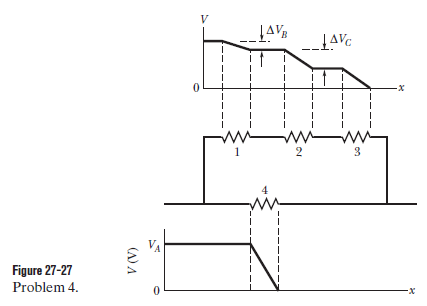

Figure shows a circuit of four resistors that are connected to a larger circuit. The graph below the circuit shows the electric potential V(x) as a function of position xalong the lower branch of the circuit, through resistor 4; the potential VAis 12.0 V. The graph above the circuit shows the electric potential V(x) versus position x along the upper branch of the circuit, through resistors 1, 2, and 3; the potential differences areΔ³ÕB2.00 V andΔ³ÕC5.00 V. Resistor 3 has a resistance of 200 Ω. What is the resistance of (a) Resistor 1 and (b) Resistor 2?

Short Answer

Expert verified
  1. The resistance of Resistor 1 isr1=80Ω
  2. The resistance of Resistor 2 isr2=200Ω

Step by step solution

01

Given

  1. PotentialVA=12V
  2. Potential differenceΔVB=2Ω
  3. Potential differencerole="math" ΔVC=5Ω
  4. Resistancer3=200Ω
02

Determining the concept

Using the property of parallel circuit, find the voltagedrop across resistor 3. Inserting it in the Ohm’s law, find the current in the circuit.Also, apply Ohm’s law to resistor 1 and resistor 2 and can find the values of their resistances.

Ohm's law states that the current through a conductor between two points is directly proportional to the voltage across the two points.

Formulae are as follow:

I=VR

Where, I is current, V is voltage, R is resistance.

03

(a) determining the resistance of resistor 1

The resistance of resistor 1:

Since, the resistances in upper and lower branch are parallel, the voltage drop across both branches is equal.

So, the voltage drop across the upper branch is 12 V.

Hence, the voltage drop across the resistor 3 is 5V and the current in the circuit is given by,

i=ΔVr3i=5V200Ωi=25mA

Then the resistance of resistor 1 will be,

i=ΔVr1r1=2V25mAr1=80Ω

Hence, the resistance of Resistor 1 isr1=80Ω

04

(b) determining the resistance of resistor 2

The resistance of resistor 2 :

From the graph, we can see that the resistor 2 has the same voltage drop as the resistor 3 and is given by,

ΔV=5V

Its resistance is then given by,

i=ΔVr2r2=ΔVir2=5V25mAr2=200Ω

Hence, the resistance of Resistor 2 isr2=200Ω

Therefore, by using ohms law the resistance of the resistors can be determined.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

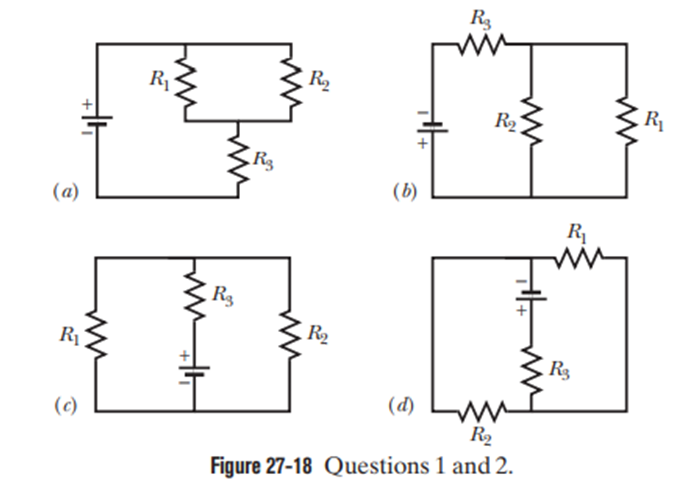

(a) In Fig. 27-18a, are resistorsR1and R3in series?

(b) Are resistors R1&R3in parallel?

(c) Rank the equivalent resistances of the four circuits shown in Fig. 27-18, greatest first.

In Fig. 27-53, , R2=R3=50.0‰ө, R4=75.0‰ө, and the ideal battery has emf. ε=6.00 V (a) What is the equivalent resistance? What is iin (b) resistance 1, (c) resistance 2, (d) resistance 3, and (e) resistance4?

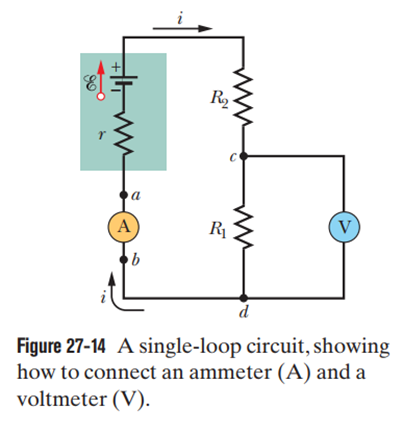

Question: In Fig. 27-14, assume that ε=3.0³Õ,°ù=100Ω,¸é1=250Ω²¹²Ô»å¸é2=300Ω, . If the voltmeter resistance RV= 5. 0 KΩ, what percent error does it introduce into the measurement of the potential difference across R1 ? Ignore the presence of the ammeter.
