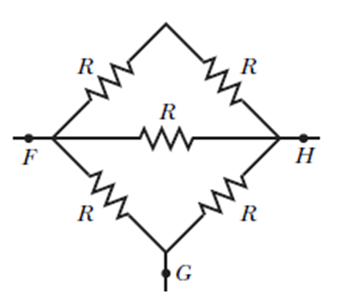

Figure shows five 5.00Ω resistors. Find the equivalent resistance between points

(a) F and H and

(b) F and G . (Hint: For each pair of points, imagine that a battery is connected across the pair.)

Short Answer

Expert verified
  1. The equivalent resistor is Req=2.50Ω.
  2. The equivalent resistor is Req=3.12Ω.

Step by step solution

01

Given data:

The resistance of each resistor is R=5.00Ω

Figure 27-34 is the circuit diagram of five resistors.

02

Understanding the concept:

You can use the concept of the equivalent resistance of the series and the parallel circuits. Using those equations, you can find the equivalent resistance.

For series:

Req=R1+R2+R3

For parallel:

1Req=1R1+1R2+1R3

03

(a) Calculate the equivalent resistance between points F  and H:

The equivalent resistance between points F and H:

Above the points F and H, there are two resistors which are in series with each other. So, their total resistance will be

R+R=2R

Similarly, below F and H, there is the same structure. So, the total resistance is

and these two resistances are parallel to the resistance between F and H , so you can write,

1Req=12R+12R+1R=22R+1R=1R+1R=2R

Req=R2=5.00Ω2=2.50Ω

Hence, the required equivalent resistor is 2.50Ω.

04

(b) Calculate the equivalent resistance between points   F and  G:

The equivalent resistance between F and G:

First, find the total resistance of the upper triangle where 2R is parallel to R ,

1RT=12R+1R=3R2R2

RT=2R23R=23R

Now, this total resistance is in series with the resistance between H and G , so you get,

Rt=23R+R=5R3

As this total resistance is parallel to the resistance between F and G, you can write

1Req=153R+1R=35R+1R=(3R+5R)5R2

Req=5R23R+5R=5R28R=58R

Substitute known value in the above equation.

Req=58(5.00Ω)=258Ω=3.12Ω

Hence, the required equivalent resistor is 3.12Ω.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 27-62, a voltmeter of resistance RV=300Ωand an ammeter of resistance RA=3.00Ωare being used to measure a resistance Rin a circuit that also contains a resistance R0=100Ωand an ideal battery of emf role="math" localid="1664352839658" ε=12.0V. Resistance Ris given byR=V/i , where V is the voltmeter reading and is the current in resistance R. However, the ammeter reading is inot but rather i', which is iplus the current through the voltmeter. Thus, the ratio of the two meter readings is notR but only an apparent resistanceR'=V/i' . IfR=85.0Ω , what are (a) the ammeter reading, (b) the voltmeter reading, and (c) R'? (d) IfRV is increased, does the difference between R'and Rincrease, decrease, or remain the same?

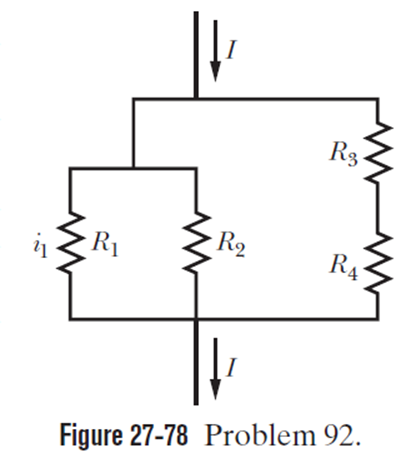

Figure 27-78 shows a portion of a circuit through which there is a current I=6.00A. The resistances are R1.=R2=2.00R3=2.OOR4=4.00ΩWhat is the currenti1through resistor 1?

In Fig. 27-82, an ideal battery of emf ε=12.0Vis connected to a network of resistancesR1=12.0Ω, R2=12.0Ω,R3=4.0Ω,R4=3.00ΩandR5=5.00Ω. What is the potential difference across resistance 5?

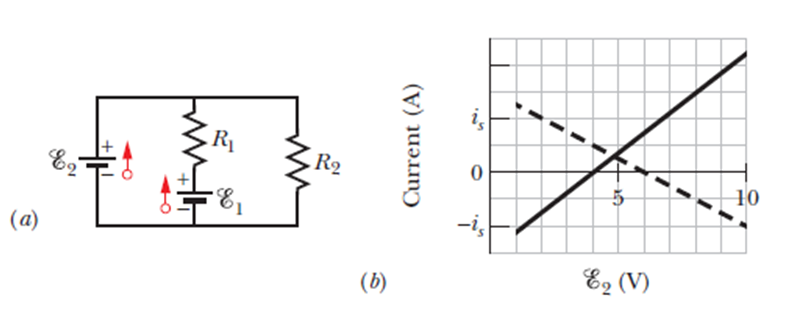

Both batteries in Figure
