Chapter 27: Q21P (page 796)

Question: Four 18.0 鈩� resistors are connected in parallel across a 25.0 V ideal battery. What is the current through the battery?

Short Answer

Expert verified

Answer

The value of the current isI=5.56A .

Step by step solution

01

Write the given data:

  1. The value of each resistor isR=18.0惟
  2. The potential of the battery isV=25.0V
02

Determine the concept

Use the concept of Ohm鈥檚 law and the equivalent resistance of the parallel circuit. First, find the equivalent resistance and then, using that value in Ohm鈥檚 law formula, find the current through the battery.

Write the formula for the Ohm鈥檚 law and the equivalent resistance as:

V=IR1Req=1R1+1R2+1R3+1R4

03

Calculate the current through the battery

First, calculate the equivalent resistance as follows:

1Req=118+118+118+118=4181Req=418Req=184Req=4.5惟

Using this value in Ohm鈥檚 law formula and solve as:

V=IRI=VRI=25.04.50I=5.56A

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A copper wire of radius a=0.250mmhas an aluminium jacket of outer radiusb=0.380mm. There is a currenti=2.00Ain the composite wire. Using Table 26-1, calculate the current in (a) the copper and (b) the aluminium. (c) If a potential differenceV=12.0Vbetween the ends maintains the current, what is the length of the composite wire?

What is the equivalent resistance of three resistors, each of resistance R, if they are connected to an ideal battery (a) in series with one another and (b) in parallel with one another? (c) Is the potential difference across the series arrangement greater than, less than, or equal to that across the parallel arrangement?

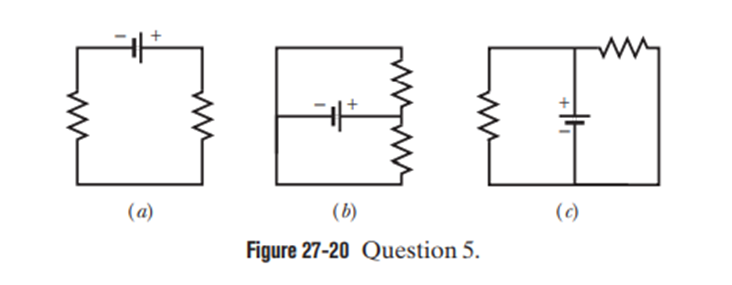

For each circuit in Fig. 27-20, are the resistors connected in series, in parallel, or neither?
