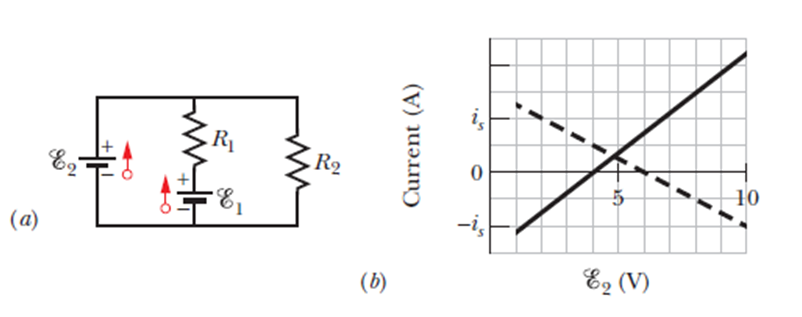

Both batteries in Figure

(a) are ideal. Emfε1 of battery 1 has a fixed value, but emf ε1of battery 2 can be varied between 1.0Vand10V . The plots in Figure

(b) give the currents through the two batteries as a function ofε2 . The vertical scale is set by isis=0.20A . You must decide which plot corresponds to which battery, but for both plots, a negative current occurs when the direction of the current through the battery is opposite the direction of that battery’s emf.

(a)What is emfε1 ?

(b) What is resistanceR1 ?

(c) What is resistance R2?

Short Answer

Expert verified
  1. The emf ε1 is 6.0V.
  2. The resistance R1is20Ω.
  3. The resistance R2 is 40Ω.

Step by step solution

01

Given data:

The emf voltage,ε2=1.0Vto10.0V

Vertical scaleis=0.20A

02

Understanding the concept:

Apply the Kirchhoff’s loop rule to the left-hand side loop of the circuit and use the given graph scale to find the emf ε1andresistance R1. Then, use these values and apply the Kirchhoff’s loop rule to the right-side loop to find the resistanceR2.

Formula:

The voltage, ∑V=0

The current, ∑Ii=∑Io

03

(a) Calculate emf ε1 :

Apply the Kirchhoff’s loop rule to the left hand side loop,

ε2+i1R1−ε1=0 ….. (1)

Since ε1has a fixed value, while ε2 and i1varies.So, from the above equation, you can say that the larger values of ε2will result in a negative value fori1 .

So, the downward sloping line i.e. the dashed linemust representi1.

From the graph,

The current,i1=0A, when the emf voltage isε2=6.0V.

Substitute these values into equation (1).

6.0V+(0A)R1−ε1=0ε1=6.0V

Hence, the emf ε1is 6.0V.

04

(b) Calculate resistance R1 :

Again apply Kirchhoff’s loop rule to the left hand side loop.

ε2+i1R1−ε1=0 ….. (2)

From the graph,

The currenti1=0.20A, when the emf voltage isε2=2.0V.

Substitute these values into equation (2).

2.0V+(0.20A)R1−6.0V=0R1=6.0V−2.0V(0.20A)R1=20.0Ω

Hence,the resistance R1 is20.0Ω .

05

(c) Calculate resistance R2:

Now, apply Kirchhoff’s loop rule to the right-hand side loop.

ε1−i1R1−iR2=0 ….. (3)

But, according to the junction rule,

i=i1+i2

So, by putting the above equation into equation (3), you obtain

ε1−i1R1−(i1+i2)R2=0 ….. (4)

From the graph,

The current, i2=0A and i1=0.10A, whenthe emf voltage ε2=4.0V.

Put the known values into equation (4), and you get

(6.0V)−(0.10A)(20.0Ω)−(0A+0.10A)R2=0(6.0V)−(2.0V)−(0.10A)R2=0(4.0V)−(0.10A)R2=0

R2=4.0V0.10A=40.0Ω

Hence, the resistance R2 is 40.0Ω.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 27-63 shows an ideal battery of emf e= 12V, a resistor of resistanceR=4.0Ω,and an uncharged capacitor of capacitance C=4.0μ¹ó . After switch S is closed, what is the current through the resistor when the charge on the capacitor 8.0μ°ä?

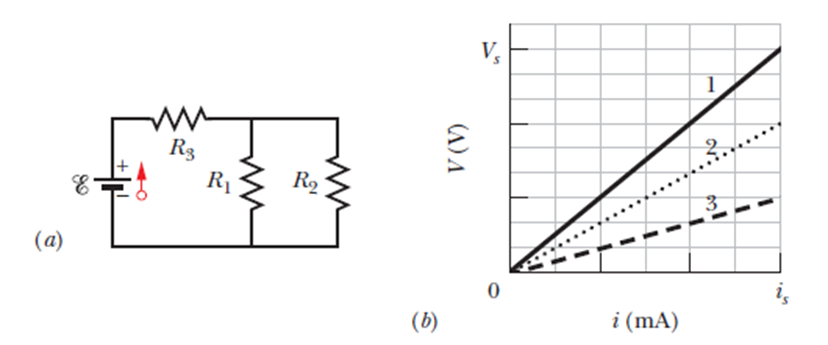

Question: The ideal battery in Figure (a) has emf ε=6.0V. Plot 1 in Figure (b) gives the electric potential difference v that can appear across resistor 1 of the circuit versus the current i in that resistor. The scale of the v axis is set byVs=18.0V , and the scale of the i axis is set byis=3.00mA . Plots 2 and 3 are similar plots for resistors 2 and 3, respectively. What is the current in resistor 2 in

the circuit of Fig. 27-39a?

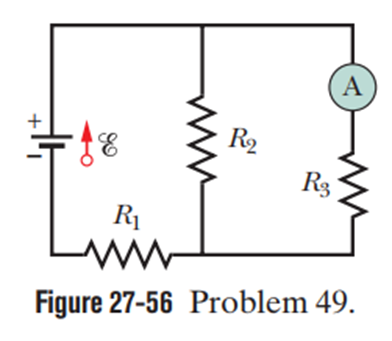

(a) In Fig. 27-56, what current does the ammeter read ifε=5.0V(ideal battery), R1=2.0‰ө, R2=4.0‰ө, and R3=6.0‰ө? (b) The ammeter and battery are now interchanged. Show that the ammeter reading is unchanged.

A total resistance of 3.00 Ω is to be produced by connecting an unknown resistance to a 12.0 Ω resistance.

  1. What must be the value of the unknown resistance, and
  2. (b) Should it be connected in series or in parallel?

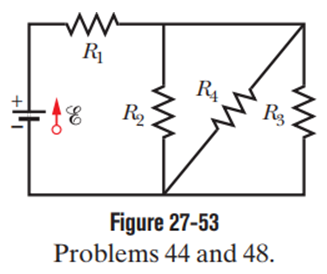

In Fig. 27-53, the resistors have the values R1=7.00Ω, R2=12.00Ω, and R3=4.00Ω, and the ideal battery’s emf isε=24.0V. For what value of R4will the rate at which the battery transfers energy to the resistors equal (a)60.0 W, (b) the maximum possible rate Pmax, and (c) the minimum possible rate Pmin? What are (d)Pmaxand (e)Pmin?
