Chapter 27: Q28P (page 796)

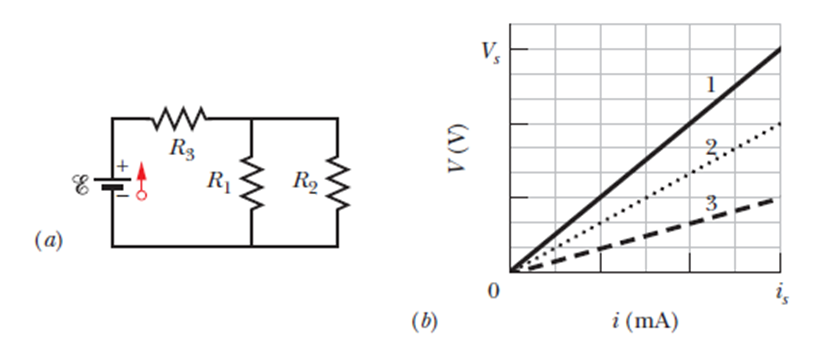

Question: The ideal battery in Figure (a) has emf 蔚=6.0V. Plot 1 in Figure (b) gives the electric potential difference v that can appear across resistor 1 of the circuit versus the current i in that resistor. The scale of the v axis is set byVs=18.0V , and the scale of the i axis is set byis=3.00mA . Plots 2 and 3 are similar plots for resistors 2 and 3, respectively. What is the current in resistor 2 in

the circuit of Fig. 27-39a?

Short Answer

Expert verified

Answer:

The current through the resistor R2 is 0.82mA.

Step by step solution

01

Given data:

Thevoltage,蔚=6.0VThevoltage,Vs=18.0VThecurrent,Is=3.00mA

02

Understanding the concept:

Use Kirchhoff鈥檚 voltage law. In Kirchhoff鈥檚 voltage law addition of the voltage in the loop is zero. Also, you can find the individual resistance values from the slope of the graphs given.

Formula:

V=IR

The voltage is define by using following formula.

The equivalent resistor of the parallel resistance is define by,

R12=R1R2R1+R2

03

Calculate the equivalent resistance:

Here, the slope of the voltage vs the current graph is the resistance so,

The resistors are,

R1=6000惟,R2=4000惟andR3=2000惟.

Here, R1 and R2 are in parallel. So, the equivalent of these two R12 is as follow

R12=R1R2R1+R2=4000惟脳6000惟4000+6000惟=2400惟

Now, R12 and R3 are in series. So, the equivalent is R

R=R12+R3=2000+2400惟=4400惟
