The alternating current (AC) breakdown voltage of an insulating liquid indicates its dielectric strength. The article 鈥淭esting Practices for the AC Breakdown Voltage Testing of Insulation Liquids'' (IEEE)gave the accompanying sample observations on breakdown voltage (kV) of a particular circuit under certain conditions.

\(\begin{array}{l}{\rm{62\;50\;53\;57\;41\;53\;55\;61\;59\;64\;50\;53\;64\;62}}\\{\rm{\;50\;68 54\;55\;57\;50\;55\;50\;56\;55\;46\;55\;53\;54\;}}\\{\rm{52\;47\;47\;55 57\;48\;63\;57\;57\;55\;53\;59\;53\;52\;}}\\{\rm{50\;55\;60\;50\;56\;58}}\end{array}\)

a. Construct a boxplot of the data and comment on interesting features.

b. Calculate and interpret a \({\rm{95\% }}\)CI for true average breakdown voltage m. Does it appear that m has been precisely estimated? Explain.

c. Suppose the investigator believes that virtually all values of breakdown voltage are between \({\rm{40 and 70}}\). What sample size would be appropriate for the \({\rm{95\% }}\)CI to have a width of 2 kV (so that m is estimated to within 1 kV with \({\rm{95\% }}\)confidence)

Short Answer

Expert verified

a) The distribution appears to be roughly symmetric, because the box of the boxplot lies roughly in the middle between the whiskers.

b) The boundaries of the confidence interval then become is \((53.2285,56.1881)\)

c) The sample size is \({\rm{n = 217}}\)

Step by step solution

01

To Construct a boxplot

(a) Given:

\(\begin{array}{l}{\rm{n = 48 }}\\{\rm{c - 95\% = 0}}{\rm{.95}}\end{array}\)

\(\begin{array}{l}62,50,53,57,41,53,55,61,59,64,50,53,64,62,50\\,68,54,55,57,50,55,50,50,55,40,55,53,54,52,47,\\47,55,57,48,03,57,57,55,53,59,53,52,50,55,60,50,50,58\end{array}\)

Sort the data values from smallest to largest:

\(\begin{array}{l}41,40,47,47,48,50,50,50,50,50,50,50,52,52,53,53,53,53,53,53,54\\,54,55,55,55,55,55,55,55,55,50,50,57,\\57,57,57,57,58,59,59,60,61,02,02,63,04,64,68\end{array}\)

The minimum is \(41\) .

Since the number of data values is even, the median is the average of the two middle values of the sorted data set:

\({\rm{M - }}{{\rm{Q}}_{\rm{2}}}{\rm{ - }}\frac{{{\rm{55 + 55}}}}{{\rm{2}}}{\rm{ - 55}}\)

The first quartile is the median of the data values below the median (or at 25 \% of the data):

\({{\rm{Q}}_{\rm{1}}}{\rm{ - }}\frac{{{\rm{50 + 52}}}}{{\rm{2}}}{\rm{ - 51}}\)

The third quartile is the median of the data values above the median (or at 75 \% of the data):

\({{\rm{Q}}_{\rm{3}}}{\rm{ - }}\frac{{{\rm{57 + 57}}}}{{\rm{2}}}{\rm{ - 57}}\)

The maximum is \(08\) .

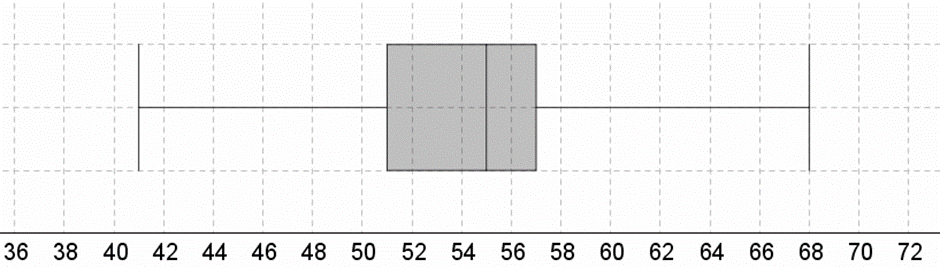

BOXPLOT

The whiskers of the boxplot are at the minimum and maximum value. The box starts at the first quartile, ends at the third quartile and has a vertical line at the median.

The first quartile is at \(25\% \)of the sorted data list, the median at \(50\% \)and the third quartile at \(75\% \).

Hence The distribution appear to be roughly symmetric, because the box of the boxplot lies roughly in the middle between the whiskers.

02

To Calculate and interpret a 95% CI for true average

(b) Central limit theorem: If the sample size is large (more than 30), then the sampling distribution of the sample mean \bar{x} is approximately normal.

LARGE-SAMPLE CONFIDENCE INTERVAL

The sample mean is the sum of all data values divided by the sample size:

\({\rm{\bar x - }}\frac{{{\rm{62 + 50 + 53 + \ldots + 50 + 56 + 58}}}}{{{\rm{48}}}}{\rm{ - }}\frac{{{\rm{2626}}}}{{{\rm{48}}}}{\rm{\gg 54}}{\rm{.7083}}\)

The variance is the sum of squared deviations from the mean divided by n-1. The standard deviation is the square root of the variance:

\({\rm{s - }}\sqrt {\frac{{{{{\rm{(62 - 54}}{\rm{.7083)}}}^{\rm{2}}}{\rm{ + \ldots }}{\rm{. + (58 - 54}}{\rm{.7083}}{{\rm{)}}^{\rm{2}}}}}{{{\rm{48 - 1}}}}} {\rm{\gg 5}}{\rm{.2307}}\)

\({{\rm{z}}_{{\rm{\alpha /2}}}}{\rm{ - 1}}{\rm{.96}}\)

The margin of error is then:

\({\rm{E - }}{{\rm{z}}_{{\rm{\alpha /2}}}}{\rm{ \times }}\frac{{\rm{s}}}{{\sqrt {\rm{n}} }}{\rm{ - 1}}{\rm{.96 \times }}\frac{{{\rm{5}}{\rm{.2307}}}}{{\sqrt {{\rm{48}}} }}{\rm{\gg 1}}{\rm{.4798}}\)

The boundaries of the confidence interval then become:

\(\begin{array}{l}{\rm{\bar x - E - 54}}{\rm{.7083 - 1}}{\rm{.4798 - 53}}{\rm{.2285}}\\{\rm{\bar x + E - 54}}{\rm{.7083 + 1}}{\rm{.4798 - 56}}{\rm{.1881}}\end{array}\)

Hence The boundaries of the confidence interval then become is \((53.2285,56.1881)\)

03

To find the sample size

(c) Given:

\(\begin{array}{l}{\rm{E = 1}}\\{\rm{c = 95\% = 0}}{\rm{.9540}}\\{\rm{ to 70}}\end{array}\)

The population standard deviation can be estimated by one forth of the range of values:

\({\rm{\sigma \gg }}\frac{{{\rm{70 - 40}}}}{{\rm{4}}}{\rm{ - }}\frac{{{\rm{30}}}}{{\rm{4}}}{\rm{ - 7}}{\rm{.5}}\)

Formula sample size:

\(\begin{array}{l}{\rm{n - }}{\left( {\frac{{{{\rm{z}}_{{\rm{\alpha /2}}}}{\rm{\sigma }}}}{{\rm{E}}}} \right)^{\rm{2}}}\\{{\rm{z}}_{{\rm{\alpha /2}}}}{\rm{ - 1}}{\rm{.96}}\end{array}\)

The sample size is then (round up to the nearest integer!):

\({\rm{n - }}{\left( {\frac{{{{\rm{z}}_{{\rm{\alpha /2}}}}{\rm{\sigma }}}}{{\rm{E}}}} \right)^{\rm{2}}}{\rm{ - }}{\left( {\frac{{{\rm{1}}{\rm{.96 \times 7}}{\rm{.5}}}}{{\rm{1}}}} \right)^{\rm{2}}}{\rm{\gg 217}}\)

Hence the sample size is \({\rm{n = 217}}\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

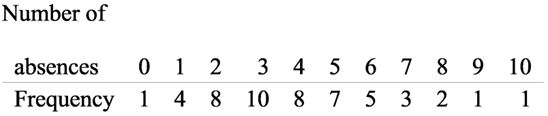

The superintendent of a large school district, having once had a course in probability and statistics, believes that the number of teachers absent on any given day has a Poisson distribution with parameter m. Use the accompanying data on absences for 50 days to obtain a large sample CI for m. (Hint: The mean and variance of a Poisson variable both equal m, so
